Raritan Paragon II - EUST

Product is End of Life : 2020-11-20
Paragon II Enhanced User Station

Raritan Paragon II - EUST
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Paragon II Enhanced User Station
  • Analog access point with PS/2, Sun, and USB consoles
Paragon® II is an enterprise-class Cat5 analog KVM solution that provides up to 64-users with secure, real-time access and control of thousands of servers and serial devices. Its secure KVM switch technology features the industry’s best video quality with resolutions as high as 1920 X 1440 at distances of up to 1,000 feet, making it the perfect solution for Government, Broadcast, Production and Post-Production facilities.

It’s ideal for Enterprise Data Centers due to its configuration flexibility and broad compatibility, supporting leading platforms from HP, Dell, IBM, Cisco, and Oracle.

Paragon II offers great flexibility and manageability through access to leading servers, including IBM BladeCenter®, power strips and other IT devices. Also, optional KVM-over-IP access is available for easy remote access.

  • Main Switching Unit (M model):
      A secure, intelligent, non-blocked control unit that connects users to servers. Its stackable architecture provides the industry’s highest port density, making it ideal for large data centers with densely packed racks.

  • Stacking Unit (S model):
      A unique, cost-effective, space-saving expansion unit that easily brings each switch up to 128 non-blocked server ports with less cable than cascading. Stacking units reduce the clutter of multiple cables between tiers, as well as save rack space and HVAC costs.

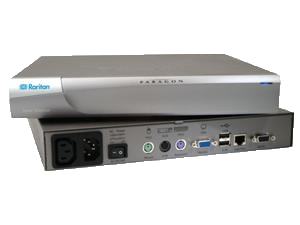

  • Enhanced User Station (P2-EUST and P2-EUST/C):
      The P2-EUST connects the user’s keyboard, video and mouse to the main switching unit. Its On-Screen User Interface (OSUI) provides easy, intuitive access to attached servers. In addition to all of the features available in the Enhanced User Station, the P2-EUST/C offers the added security of an integrated smart card reader, a FIPS 201– approved solution that supports the use of CAC and PIV cards.

  • Easy IP Access:
      Raritan offers a convenient solution for accessing Paragon II over an IP network. The Dominion® KXIII may also be used for IP access to Paragon II. This option is perfect when the access solution requires both analog and IP access, or when support of an authentication/authorization platform is needed. CommandCenter®Secure Gateway may also be used when accessing Paragon II through the DominionKXIII.

  • User Expansion (P2-HUBPAC):
      Now field-upgradeable, it connects up to four Paragon II KVM switches, giving up to 64 users non-blocked access to target devices.

  • Computer Interface Module (CIM):
      CIMs connect Cat5/5e/6 cabling from the switch to the KVM ports of the target server (including IBM BladeCenter), providing “keep-alive” keyboard/mouse emulation to the server.

  • Daisy Chain Capabilities (P2ZCIM):
      You can easily connect up to 42 PS/2, and/or USB servers on a single Cat5 cable chain, using only one server port on a Paragon II unit. It can extend distances of up to 1,000 feet (305 meters) from the main switching unit to the last P2ZCIM in the chain



ProdGrafik

P2-EUST

Description
    Analog access point that provides enhanced video for PS/2, USB and Sun consoles

Dimensions (WxDxH)
    11.4" x 10.62" x 1.75";
    290 x 270 x 44mm

Weight
    4.3 lbs;
    1.9 kg

Power
    100V/240V
    50/60Hz 0.6A


P2-EUST/C (P2-EUST/C-GOV)

Description
    Analog access point that provides enhanced video for PS/2, USB and Sun consoles: includes integrated smart card reader (FIPS 201 approved)

Dimensions (WxDxH)
    11.4" x 10.62" x 1.75";
    290 x 270 x 44mm

Weight
    4.8 lbs;
    2.2 kg

Power
    100V/240V
    50/60Hz 0.6A
