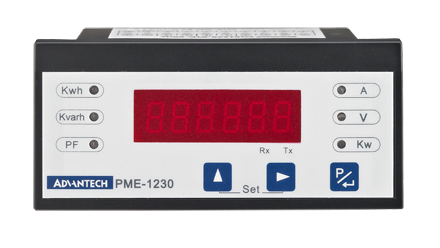

Advantech PME-1230
3-phase Multifunction Power Meter
egenskaber
beskrivelse
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
PDF
- Small size with 100mm depth
- Panel cut 96 x 48 mm
- Multi-function power measurement
- Modbus RTU protocol over RS485
The PME-1230 is a 3-phase multi-function power meter for sub-metering applications, ranging from power distribution, small motor control to lighting load circuit. It measures individual current & voltage, KW, kwh, kvarh, PF and kVAR values. The measurement data can be viewed directly from local display, and also can be transmitted through a RS-485 using the Modbus protocol.
