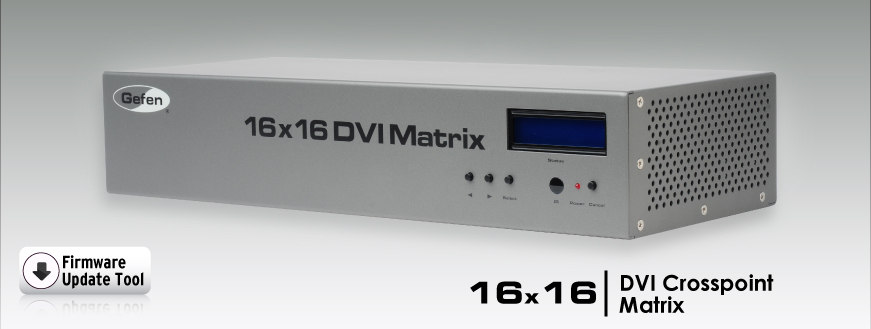

Gefen EXT-DVI-16416

16x16 DVI Crosspoint Matrix

Gefen EXT-DVI-16416
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Supports resolutions up to 1920 x 1200

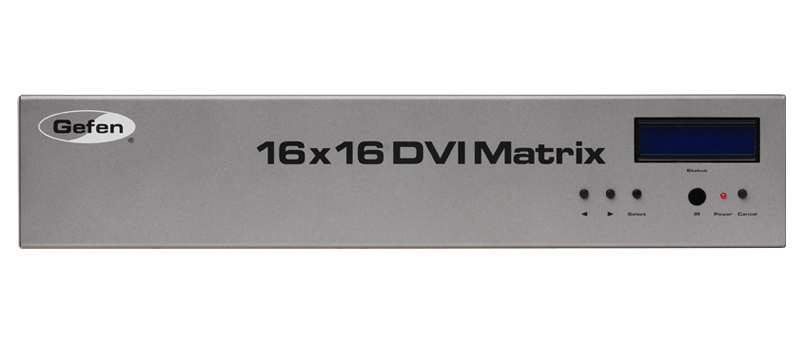

  • Status LCD (shows routing status)
  • Advanced EDID management for rapid integration of sources and displays
  • Compatible with the Gefen Keyboard Controller software
  • Dynamic EDID support
  • Serial RS-232 Interface for remote control via a computer or control automation device
  • IP control
  • Output masking control
  • IR remote control
  • IR Extender
  • Standby mode
  • Supports DDWG standards for DVI
  • Rack mountable
Switches sixteen computers using DVI to any sixteen displays

Now you can easily combine sixteen cross-platform computers and sixteen digital displays using the 16x16 DVI Crosspoint Matrix. The Matrix provides a simple, reliable and highly effective method of routing multiple computer workstations. Each computer is capable of displaying video on any one of the 16 monitors. There are 4 methods of controlling the Matrix - by using the front panel buttons, the included IR remote control, IP control, an RS-232 port for switching automation, and the Gefen Keyboard Controller software.

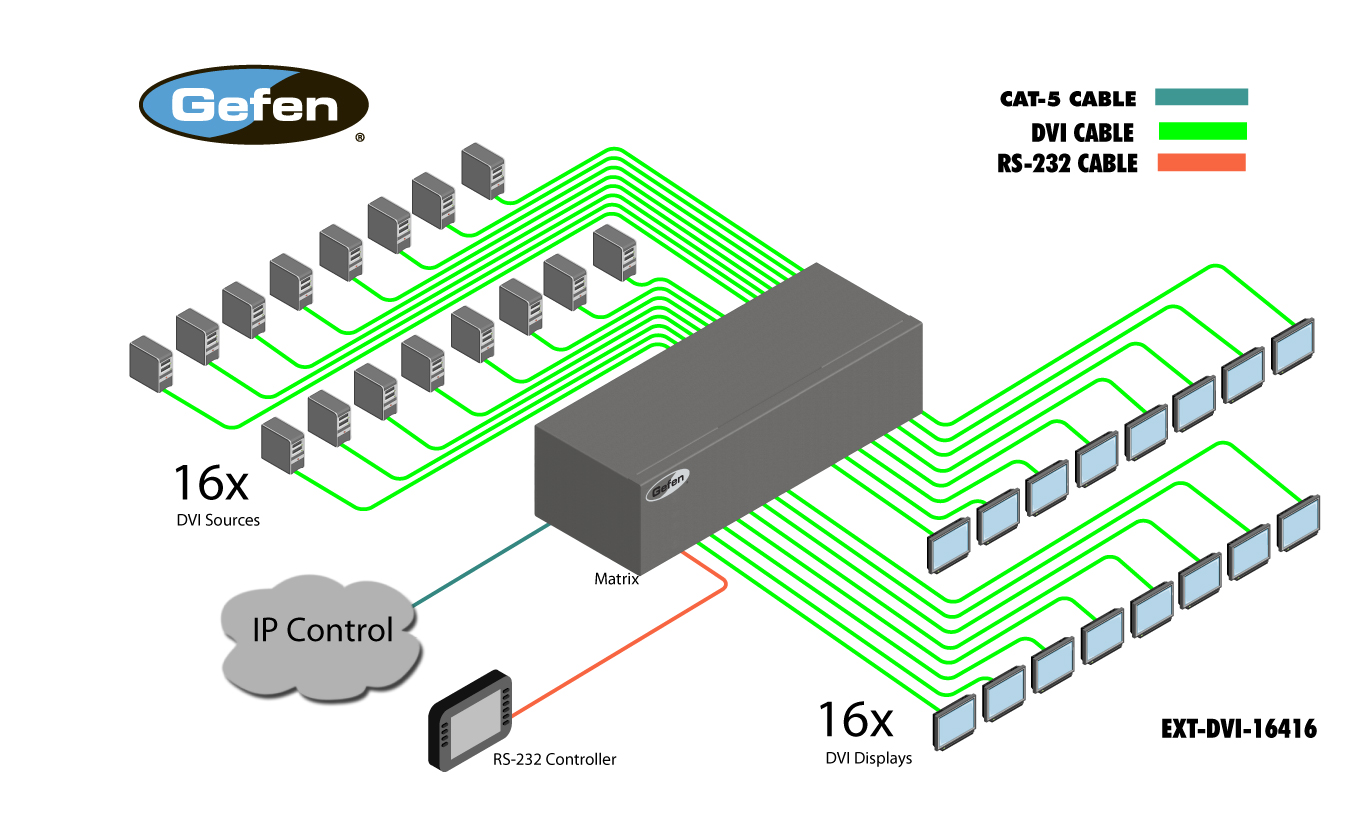

How It Works

The 16x16 Crosspoint Matrix has sixteen DVI inputs and sixteen DVI outputs. Using the supplied DVI cables, connect your sixteen computers to the DVI input ports on the Matrix’s input side. Connect the Matrix’s sixteen DVI outputs to the displays. Plug in the power cord and power on the Matrix. The connected displays will show video according to the selection.

Note: This device only supports DVI-D.
ProdGrafik
Specifications

  • Video Amplifier Bandwidth: 165 MHz per channel
  • Maximum Link Range: 1080p / 1920x1200 (PC)
  • Input Video Signal: 1.2 Volts p-p
  • Power Consumption: 60 Watts (max)

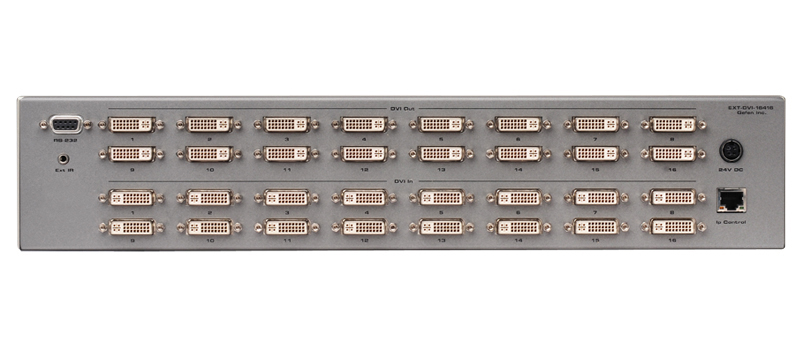

  • Video Input Connector: (16) DVI-I 29 Pin Female (digital only)
  • Video Output Connector: (16) DVI-I 29 Pin Female (digital only)
  • Ethernet Port: RJ-45, shielded
  • RS-232 Port: (1) DB-9, female
  • IR Extender Input: 3.5mm mini-stereo jack
  • Rack mountable: 2U rack space, rack ears included
  • Dimensions: 17" W x 7.3" D x 3.5" H
  • Power Supply: 24V DC
  • Shipping Weight: 31 lbs.
