Multi-Tech Dragonfly

Cellular System-on-Module (System-on-Module)

Multi-Tech Dragonfly
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Lightweight SoM ideal for most IoT applications
  • On-board GNSS for fast and accurate location fix
  • Multiple I/O interfaces for connecting most any “Thing”
  • Design in or retrofit
The MultiConnect® Dragonfly™ cellular SoM’s are fully certified and MNO approved, ready-to-integrate modules that offer developers the functionality of a programmable computing platform with the convenience of an onboard cellular radio all in one compact design. From a software perspective, Dragonfly is compatible with the ARM® mbed™ programming platform allowing for rapid prototyping, development and deployment. With its integrated Cortex®-M4 processor, developers can host their application and have access to a full suite of interfaces for connecting sensors or other remote assets.


BENEFITS
  • End device certified by leading carriers
  • Family of cellular options include 2G 1xRTT, 3G HSPA+, 3G EV-DO and 4G-LTE
  • Developer friendly to integrate and quickly deploy assets
  • Long solution lifecycle reduces redesign time and cost



Host Your Applications

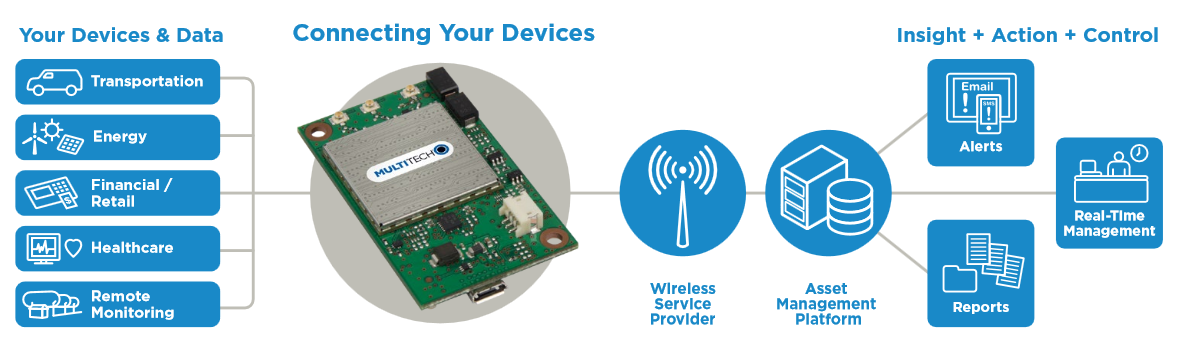

As the first ARM mbed cellular SoM listed on mbed.org that is industry certified and deployment ready, applications can be written and compiled quickly online using developer friendly libraries, downloaded and hosted within the Dragonfly. Decision making and control is distributed to the edge, enabling data to be more actionable without the heavy lift required to implement complex M2M middleware and security protocols needed to deploy a low touch install.


Design in or Retrofit

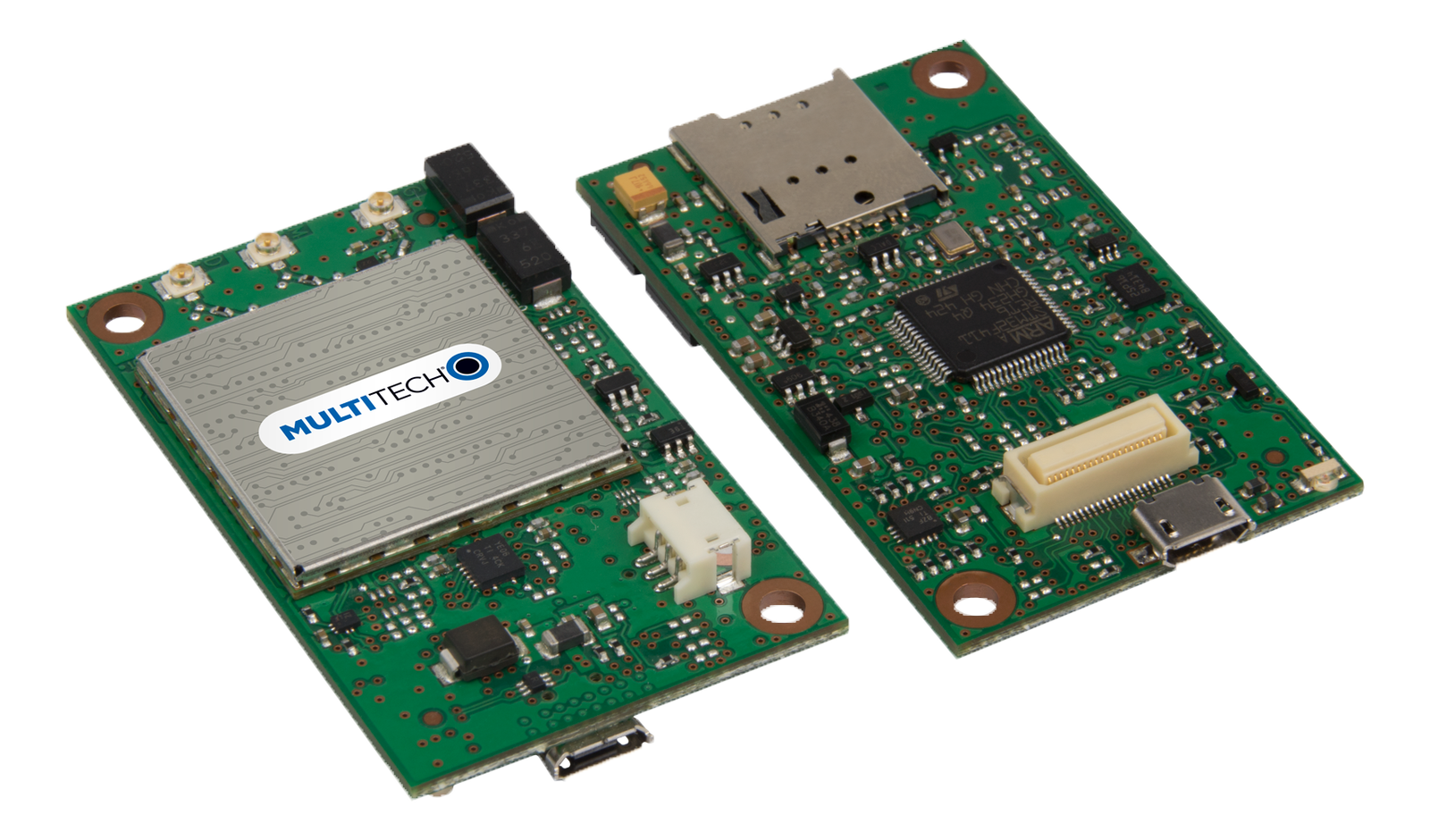

The MultiConnect Dragonfly can be used as an embedded cellular SoM providing the maximum in design and application flexibility or it can be used as an embedded cellular modem requiring little or no modification to your existing design. Connecting to the Dragonfly through its 40-pin board-to-board connector gives you access to all the programmable I/O interfaces. You can also connect to the Dragonfly using the industry standard micro USB port affording you the quickest time to market when your application only requires basic cellular connectivity.
ProdGrafik

Performance
HSPA+

Frequency Band (MHz)
3G:   850/900/AWS 1700/1900/2100 MHz
2G:   850/900/1800/1900 MHz

TCP/IP Functions
FTP, HTTP, SMTP, SSL, TCP, UDP

Connectors
3 UFL (Cellular, Rx Diversity & GPS)
1xMicro USB, 1x 40-Pin Board-to-Board, 1xMicro SIM

Host Processor
Cortex M4 (STM32F411RET) 512 Kbytes of Flash memory and 96 Kbytes of SRAM

I/O
1 x UART, 1 x HS USB, 1 x SPI, 1 x I2C, up to 6 analog inputs and up to 16 digital input/output

Dimensions
58.4mm x 34.9mm (2.3 x 1.375 inches)

Power Draw
5VDC; 24mA sleep, 58mA idle, 640mA maximum

Input Voltage
5VDC


Environmental

Operating Temperature
-40° to +85° C

Storage Temperature
-40° to +85° C

Relative Humidity
20% to 90% RH, non-condensing


Certifications

EMC Compliance
FCC Part 15 Class B, EN55022, EN55024

Radio Compliance
FCC Part 22, FCC Part 24, RSS 132, RSS 133, EN 301 511, EN 301 489-1, EN 301 489-7, EN 301 489-24

Safety
UL 60950-1 2nd ED, cUL 60950-1 2nd ED, EN 60950-1 2nd ED, AS/NZS 60950-1 2nd ED

Network
PTCRB* (* Pending )

Carrier
AT&T/T-Mobile* (Bell, Rogers, Telus planned)



ORDERING INFORMATION

MTQ-L4G1-B02
    Embedded LTE Cat 4 Modem w/Fallback & GNSS



Developer Kit

MTUDK2-ST-CELL
    SocketModem® & Dragonfly Developer Kid
