Advantech BB-WCD1TA3

Wireless Mesh 802.15.4e Sensor;3-Analog Inputs; Internal Antenna, Indoor

Advantech BB-WCD1TA3
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Ultra low power 802.15.4e SmartMesh IP technology
  • Communicates with Spectre Network Gateway via highly scalable and reliable wireless mesh networks
  • Connect to industry standard analog or digital sensors
  • Wzzard app lets you read or configure the nodes using Android tablets and smart phones
  • MQTT and JSON IoT protocol to application platform
The Wzzard™ intelligent wireless sensor platform creates a complete, quick and easy connectivity stack between your sensors and your application, on you network or the Internet. The platform uses Intelligent Edge Nodes, a wireless 802.15.4e SmartMesh IP network, to transmit sensor data to the Spectre Network Gateway. The Spectre Network Gateway can connect to the Internet via wired connections or the cellular data networks and communicate with application platforms using the MQTT IoT protocol and JSON data formats.

ProdGrafik

POWER

    Internal
    (2) 3.6V 2400 mAH Lithium Thionyl Chloride AA batteries

    Battery Life
    Multiyear based on 1 min sensor sampling and reporting

    Optional External Input Voltage
    5.0 VDC +/- 10%, 50mA max, via micro USB

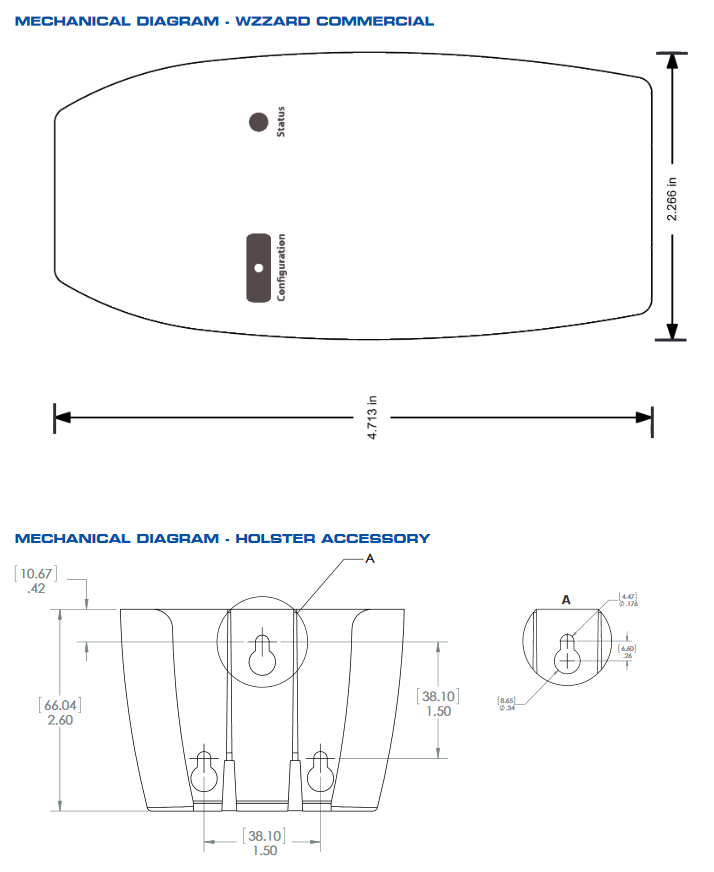

MECHANICAL

    Physical Connection
    3.5 mm terminal blocks

    Sensor Inputs
    Analog Input (0 - 5 VDC, 0 – 20 mA, 4 – 20 mA)
    Digital Input (0-48 VDC)
    Dgital Input Frequency 1-1K Hz
    Digital Input Counter
    Integrated Temperature
    Thermocouple J Type
    Digital Output (0-30 VDC)

    Mounting
    Velcro with dual lock adhesive
    Holster Mount (optional)

    Weight
    150 g (5.28 oz) with batteries installed


TECHNOLOGY

    Wireless
    802.15.4e, SmartMesh IP

    Protocols
    MQTT-SN, MQTT, JSON

    Bluetooth
    Bluetooth 4.0 Low Energy (LE)

    LED
    Network Connectivity


ENVIRONMENTAL

    Installation
    Indoor

    Operating Temperature
    0 to 65°C (32 to 149°F)

    Storage Temperature
    0 to 70°C (32 to 158°F)

    Operating Humidity
    0 to 95% Non-condensing


WIRELESS SECURITY

    Device Authentication
    128 bit AES-based encryption with multiple keys
    Message integrity check (MIC)
    Synchronized key changeovers
    Customized key rotation




SENSOR INTERFACE SPECIFICATIONS


DIGITAL INPUTS

    Voltage range
    0 – 48 VDC

    V IL
    0.97 V Maximum

    V IH
    1.8 V Minimum

    Pull up current
    32uA

    Type
    Sourcing (PNP)/Sinking (NPN) Software selectable input

    Isolation
    None


RATE/FREQUENCY INPUTS

    Frequency
    Does a 1 second measurement at each measurement/publish interval
    1-1K Hz (Accuracy + or – 1 Hz)
    Uses the falling edge or rising edge based on the Invert Enabled setting


COUNTER INPUT

    Channels
    Actively counts either the falling edge (Invert enabled) or rising edge (Invert disabled)
    Can use a multiplier to convert to a unit type or count
    2 selectable/shared with Digital inputs
    Rolls over at 999999.9


ANALOG INPUTS

    Input ranges
    0 - 5 VDC, 0 – 20 mA, 4 – 20 mA

    Resolution
    12 bit

    Input load resistance
    100 Mega ohm (0-5VDC), 250 ohm (0 - 20 mA)

    Accuracy
    Voltage: 0.10% of full scale reading, 0.20% max.
    Current: 0.11% of full scale reading, 0.24% max.


THERMOCOUPLE INPUT

    Types Supported
    J

    Ranges Supported
    Type J -210 to +1,200 °C

    Resolution
    0.25 °C

    Accuracy
    Typical +/- 2 °C
    +/- 6 °C over the temperature range of -0 to 65 °C


DIGITAL OUTPUTS

    Voltage range
    0 - 30 VDC

    Output Type
    Open Drain

    Output Current
    Not to be less than 100mA

    Protection
    Current Limit Protection

    Isolation
    None
