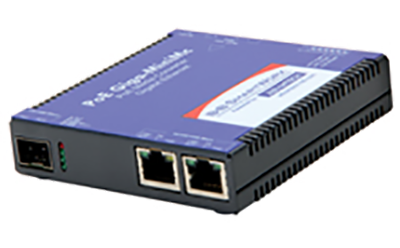

Advantech BB IMC-390-SM

Mini PoE+ Media Converter, 1000Mbps, Single mode 1310nm,
15km, SC, AC adapter

Advantech BB IMC-390-SM
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Supports IEEE802.3at PoE+ (25.5W) and IEEE802.3af PoE (15.4W) standards
  • Serves as a power sourcing equipment (PSE) device
  • Supports jumbo frame functionality (up to 10240 bytes)
  • Supports multiple mounting options (desktop, DIN rail or wall-mount)
  • Features in configurable PoE reset on fiber LOS
  • Supports Link Fault Pass Through (LFPT)

also known as MiniMc 857-11914

The IMC-380 and IMC 390 series are compact, multi-port media converters that support both IEEE802.3at and IEEE802.3af PoE standards. These unmanaged, plug-n-play media converters with PoE capability are thus ideal solution for Ethernet networks.

Designed with two 10/100/1000Base-T copper UTP ports and SFP or fixed fiber transceiver, 1x9 uplink port for the network connection, the IMC-380 series can power one PD device through standatd CAT5 (or higher version) cable via one copper port while delivering data over the other port. The IMC-390 series in even capable of powering up to 2 PD devices with power budget 60W.

The IMC-380 and 390 series support Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair, copper interface) and FX LinkLoss (Fiber, fiber interface) from both the local and remote IMC Networks media converters, when used in pairs. This feature, when enabled, will pass a link fault through the device at each segment. If a link fails on one interface of the media converter, the media converter will force the link down on its link partner and then forward it to the next interface.
ProdGrafik

Specifications

    Technical

      IEEE 802.3, 802.3u, 802.3ab, 802.3z
      IEEE 802.3at/af (IMC-390 series)
      IEEE 802.3af (IMC-380 series)
      AutoCross for MDI/MDIX
      FX and TX Auto Negotiation
      Supports Link Fault Pass Through (LFPT)



    AC Power Input

      100 to 240 VAC, 50/60H 0.7A for IMC-380 series
      100 to 240 VAC, 50/60H 2.31A for IMC-390 series



    DC Power Input

      45 to 57 VDC on DC terminal block for IMC-380 series
      51 to 57 VDC on DC terminal block for IMC-390 series



    Environment

      Operating Temperature (DC Terminal Block)
      0 to +70 °C (+32 to +158 °F)

      Operating Temperature (AC Adapter)
      0 to +50 °C (+32 to +122 °F)

      Storage Temperature
      -35 to +75 °C (-31 to +167 °F)

      Operating Humidity
      5 ~ 95% (non-condensing)
      0 ~ 10,000 ft. altitude

      MTBF
      604,306 Hours (SFP Models)
      602,720 Hours (Fixed Fiber Models)



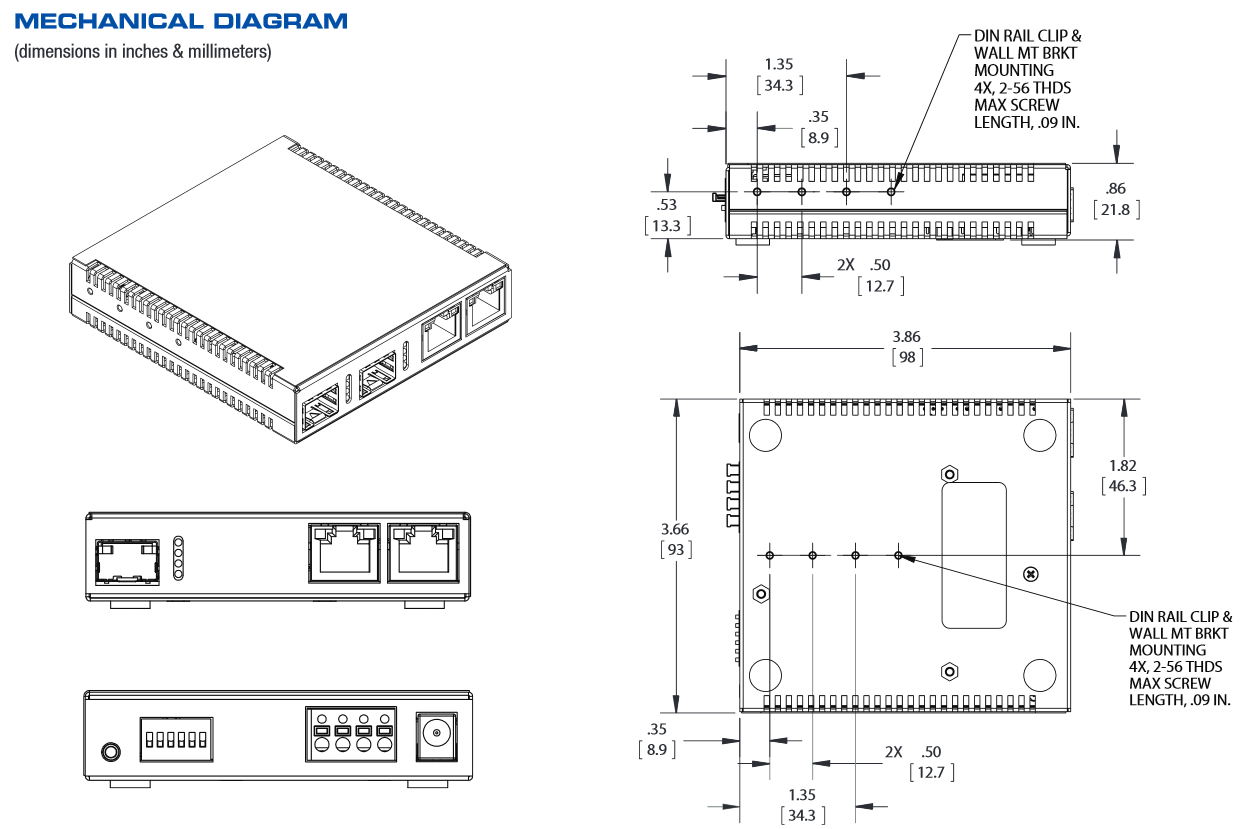

    Mechanical

      Dimensions (H x W x D)
      2.032 x 9.258 x 9.7 cm (0.8 x 3.645 x 3.82 in)

      Weight
      0.45 kg (1.0 lb)



    Certifications

      CE, FCC Class A, UL/cUL, CSA


    * Simple Network Management Protocol-based element management software.
    To configure, update, manage and monitor from a central location.



Ordering Information

    10/100/1000 Mbps PoE & PoE+ Media Converter w/ AC Adapter


Part Number Also Known As PoE-PSE Optical Mode Wavelength Distance Optical
Connector
IMC-380-SFP-US 857-11811 PoE Various Various Various SFP
IMC-380-SFP-PS - PoE Various Various Various SFP
IMC-390-MM-US 857-11912 PoE+ Multi-mode 850nm 220/550m SC
IMC-390-MM-PS - PoE+ Multi-mode 850nm 220/550m SC
IMC-390-M1-US 857-11913 PoE+ Multi-mode 1300nm 2 km SC
IMC-390-M1-PS - PoE+ Multi-mode 1300nm 2 km SC
IMC-390-SM-US 857-11914 PoE+ Single-mode 1310nm 15 km SC
IMC-390-SM-PS - PoE+ Single-mode 1310nm 15 km SC
IMC-390-SE-US 857-11915 PoE+ Single-mode 1310nm 40 km SC
IMC-390-SE-PS - PoE+ Single-mode 1310nm 40 km SC
IMC-390-SFP-US 857-11911 PoE+ Various Various Various SFP
IMC-390-SFP-PS - PoE+ Various Various Various SFP


Note: The P/N followed by 'US' is package with power adapter and US power cord.
And the P/N followed by 'PS' is package with power adapter only.


    10/100/1000 Mbps PoE & PoE+ Media Converter w/o AC Adapter


Part Number Also Known As PoE-PSE Optical Mode Wavelength Distance Optical
Connector
IMC-380-SFP 857-11811TG PoE Various Various Various SFP
IMC-390-MM 857-11912TG PoE+ Multi-mode 850 nm 550 m SC
IMC-390-SM 857-11914TG PoE+ Single-mode 1310nm 15 km SC
IMC-390-SFP 857-11911TG PoE+ Various Various Various SFP



Accessories

     Part Number      Description
806-39105 DIN Rail Clip
895-39229 Wall-mount Bracket
806-39800 Spare PoE Power Adapter for IMC-380 series
806-39900 Spare PoE+ Power Adapter for IMC-390 series


* SFP fibers sold separately ? available at www.advantech.com
