Advantech BB-WSD2MA3

Wireless Mesh 802.15.4e; 3 Analog Inputs; External Antenna, M12 Connector

Advantech BB-WSD2MA3
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Ultra low power 802.15.4e SmartMesh IP technology
  • Communicates with Spectre Network Gateway via highly scalable and reliable wireless mesh networks
  • Connect to industry standard analog sensors
  • Wzzard app lets you read or configure the nodes using Android tablets and smart phones
  • Rugged, IP66-rated, fiber reinforced polyester PBT enclosure
  • MQTT and JSON IoT protocol to application platform
  • Class 1 DIV 2 approved for hazardous locations
The Wzzard platform uses mesh networking and time-synchronized channel hopping to provide up to 99.999% connectivity, even in the most demanding RF environments. New nodes may be added at any time, and the SmartMesh IP network will dynamically self-configure as new nodes are added or removed. This is a function of the mesh network itself, and does not need to be controlled by the network gateway.

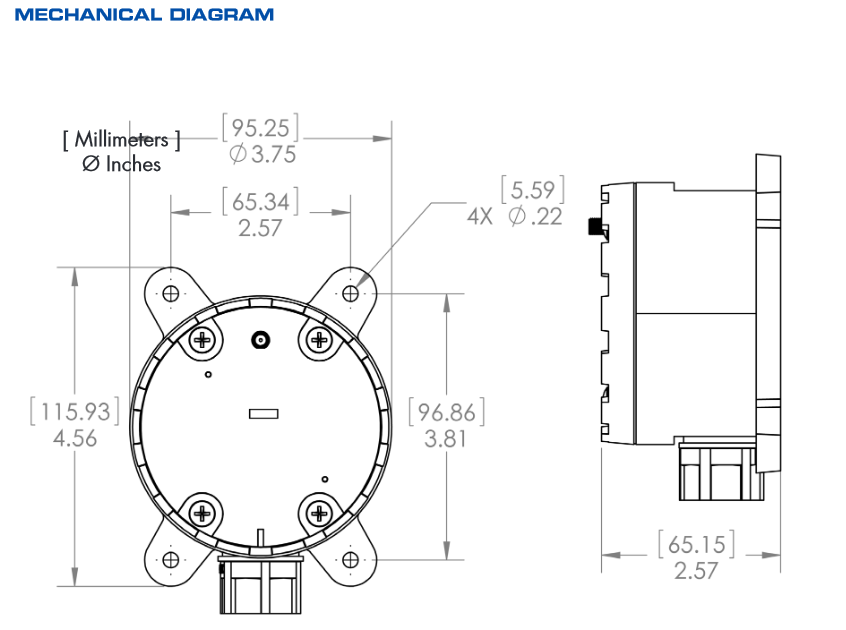

ProdGrafik

SPECIFICATIONS


POWER

    Internal
    (2) 3.6V 2400 mAH Lithium Thionyl Chloride AA batteries

    Battery Life
    Multiyear based on 1 min sensor sampling and reporting

    Optional External Input Voltage
    3.3 VDC +/- 5%



MECHANICAL

    Physical Connection
    M12 Connector
    1/2” (12.7 mm) Conduit, sensor interface cable included; 8 wire, 26 gage, 6 ft. (1.8 m)

    Sensor Inputs
    Analog Input (0 - 5 VDC, 0 – 20 mA, 4 – 20 mA)
    Digital Input (0-48 VDC)
    Digital Input Frequency 1-1K Hz (Accuracy + or – 1 Hz)
    Digital Input Counter
    Integrated Accelerometer 3 Axis
    Integrated Temperature
    Thermocouple J, K Type
    Digital Output (0-30 VDC)

    Optional External Antenna
    RP-SMA, Omnidirectional, 3.8 dBi, 2.4 GHz
    Dimensions 7.64 inches (194 mm)

    Mounting
    Magnetic mounting via internal magnet Pull force 4.7 lbs (2.13 kg)

    (4) Mounting ears, M5 (#10)

    Enclosure
    IP66-rated, fiber reinforced polyester PBT

    Weight
    0.75 lbs (0.34 kg)



TECHNOLOGY

    Wireless
    802.15.4e, SmartMesh IP

    Protocols
    MQTT-SN, MQTT, JSON

    Bluetooth
    Bluetooth 4.0 Low Energy (LE)

    LED
    Network Connectivity



ENVIRONMENTAL

    Installation
    Indoor or outdoor

    Operating Temperature
    -40 to 80°C (-40 to 176°F)

    Storage Temperature
    -40 to 85°C

    Operating Humidity
    0 to 95% Non-condensing



WIRELESS SECURITY

    Device Authentication
    128 bit AES-based encryption with multiple keys
    Message integrity check (MIC)
    Synchronized key changeovers
    Customized key rotation





SENSOR INTERFACE SPECIFICATIONS


DIGITAL INPUTS

    Voltage range
    0 – 48 VDC

    V IL
    0.97 V Maximum

    V IH
    1.8 V Minimum

    Pull up current
    32uA

    Type
    Sourcing (PNP)/Sinking (NPN) Software selectable input

    Isolation
    None



RATE/FREQUENCY INPUTS

    Frequency
    Does a 1 second measurement at each measurement/publish interval
    Digital Input Frequency 1-1K Hz (Accuracy + or – 1 Hz)
    Uses the falling edge or rising edge based on the Invert Enabled setting



COUNTER INPUT

    Channels
    Actively counts either the falling edge (Invert enabled) or rising edge (Invert disabled)
    Can use a multiplier to convert to a unit type or count
    2 selectable/shared with Digital inputs
    Rolls over at 999999.9



ANALOG INPUTS

    Input ranges
    0 - 5 VDC, 0 – 20 mA, 4 – 20 mA

    Resolution
    12 bit

    Input load resistance
    100 Mega ohm (0-5VDC), 250 ohm (0 - 20 ma)

    Accuracy
    Voltage:   0.10% of full scale reading, 0.20% max.
    Current:   0.11% of full scale reading, 0.24% max.



THERMOCOUPLE INPUT

    Types Supported
    J and K

    Ranges Supported
    Type J   -210 to +1,200 °C
    Type K   -270 to +1,372 °C

    Resolution
    0.25 °C

    Accuracy
    Typical +/- 2 °C
    +/- 6 °C over the temperature range of -40 to 80 °C



DIGITAL OUTPUTS

    Voltage range
    0 - 30 VDC

    Output Type
    Open Drain

    Output Current
    Not to be less than 100ma

    Protection
    Current Limit Protection

    Isolation
    None



INTEGRATED SENSORS


     TEMPERATURE  CONDITIONS  MIN  TYP  MAX  UNITS
     Offset  Temperature Offset Error @ 25 °C    +/- 0.25    °C
     Slope Error      +/- 0.033    °C/ °C
     3 AXIS ACCELEROMETER
     Configurable measurement ranges  +/-2 g, resolution of 1 mg/LSB
     +/-4 g
     +/-8 g
     Configurable output data rates  12.5Hz, 5Hz, 50Hz, 100Hz, 200Hz, 400Hz



SMARTMESH IP 802.15.4E RADIO SPECIFICATIONS

     TEMPERATURE  CONDITIONS  MIN  TYP  MAX  UNITS
     Frequency Band    2,400    2,4835  GHz
     Number of Channels      15
     Channel Separation      5    MHz
     Channel Clear Frequency   Where k = 11 to 25, as defined by IEEE 802.4.15    2405 + 5*(k-11)    MHz
     Modulation   IEEE 802.15.4 Direct Sequence Spread Spectrum (DSSS)
     Raw data rate      250    kbps
     Range  25 °C, 50% RH, +2dBi Omni-Directional Antenna,
      Antenna 2 m above ground

     Indoor    100    m
     Outdoor    300    m
     Receiver Sensitivity  Packet Data Error Rate (PER) = 1%    -93    dBm
     Receiver Sensitivity  PER = 50%    -95    dBm
     Output Power  Delivered to a 50 Ù load    8    dBm





BLUETOOTH LE RADIO SPECIFICATIONS


     NO.  CHARACTERISTICS  CONDITIONS  MIN  TYP  MAX  BT SPEC.  UNIT
     1  Operation Frequency Range    2402    2480    MHz
     2  Channel Spacing       2      MHz
     3  Output Power  Maximum setting, measured at single ended 50ohm.
      Minimum setting, measured at single ended 50ohm.
        4
     -24
         dBm
     dBm
     4  Sensitivity, High Gain Mode  High Gain Mode
     Standard Mode
       -93.0
     -92.5
       -70
     -70
     dBm
     dBm





THIONYL CHLORIDE LITHIUM BATTERIES (2 SUPPLIED WITH PRODUCT)


      CHARACTERISTICS   CONDITIONS
      Temperature Range   -40 to 85°C
      Nominal Capacity   2.4 Ah
      Nominal Voltage   3.6 V
      Diameter   14.5 mm
      Height   50.5 mm
    *Potential hazard: Do not recharge, crush, disassemble or heat above 212°F (100°C)




APPROVALS AND CERTIFICATIONS

CE

    EN55022 CISPR (EN55022) Class A
    EN 61000-6-2:2005 Generic immunity standard for residential, commercial and light industrial environments
    EN 61000-6-4:2006+A1:2011 Emission standard for (heavy) industrial environments
    EN61000-4-2 ESD +/- 8kV air, +/- 4kV contact
    EN61000-4-3 RFI
    EN61000-4-4 EFT
    EN61000-4-5 Surge
    EN61000-4-6 CI
    EN60255-21-1 Vibration, 2g, 10-500Hz 0.3mm displacement
    EN60255-21-2 Shock, 50g, 11ms half sine wave, 18 shocks



ENVIRONMENTAL

    IEC 60068-2-6:2007
    Vibration, 2g, 10-500 Hz,1.5mm displacement
    IEC 60068-2-27:2008
    Shock, 50g, 11ms half sine wave, 18 shocks



FCC/IC

    FCC Part 15 Class A
    FCC - Part 15.247
    Industry Canada - RSS210



SAFETY

    UL/CSA Class 1, Division 2 Group A, B, C, D



REGULATORY APPROVALS

    ROHS and WEEE Compliant






ORDERING INFORMATION
MODEL NUMBER THERMOCOUPLE INPUT
BB-WSD2CTJ Wireless Mesh 802.15.4e, 2 Thermocouple J-type Inputs, 1 Digital Output; External Antenna, Conduit Connector
BB-WSD1CTJ Wireless Mesh 802.15.4e, 2 Thermocouple J-type Inputs, 1 Digital Output; Internal Antenna, Conduit Connector
BB-WSD2CTK Wireless Mesh 802.15.4e, 2 Thermocouple K-type Inputs, 1 Digital Output; External Antenna, Conduit Connector
BB-WSD1CTK Wireless Mesh 802.15.4e, 2 Thermocouple K-type Inputs, 1 Digital Output; Internal Antenna, Conduit Connector
MODEL NUMBER ACCELEROMETER
BB-WSD2XV0 Wireless Mesh 802.15.4e Integrated Accelerometer; External Antenna
BB-WSD1XV0 Wireless Mesh 802.15.4e Integrated Accelerometer; Internal Antenna
MODEL NUMBER ANALOG INPUT
BB-WSD2MA2 Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; External Antenna, M12 Connector
BB-WSD1MA2 Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; Internal Antenna, M12 Connector
BB-WSD2CA2 Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; External Antenna, Conduit Connector
BB-WSD1CA2 Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; Internal Antenna, Conduit Connector
BB-WSD2CJA Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output, 2 Thermocouple J-type Inputs; External Antenna, Conduit Connector
BB-WSD2MA3 Wireless Mesh 802.15.4e; 3 Analog Inputs; External Antenna, M12 Connector
BB-WSD1MA3 Wireless Mesh 802.15.4e; 3 Analog Inputs; Internal Antenna, M12 Connector
BB-WSD2CA3 Wireless Mesh 802.15.4e; 3 Analog Inputs; External Antenna, Conduit Connector
BB-WSD1CA3 Wireless Mesh 802.15.4e; 3 Analog Inputs; Internal Antenna, Conduit Connector
MODEL NUMBER DIGITAL INPUT
BB-WSD2MD2 Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; External Antenna, M12 Connector
BB-WSD1MD2 Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; Internal Antenna, M12 Connector
BB-WSD2CD2 Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; External Antenna, Conduit Connector
BB-WSD1CD2 Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; Internal Antenna, Conduit Connector
ACCESSORIES
PART NUMBER DESCRIPTION
ACH2-DBAT-DP003 External Antenna, 2.4 GHz, 2 dBi, Dipole, RP-SMA, hinged, 3.8 dBi
ACH2-AT-DP011 Magnetic Mount Antenna, 2.4 GHz, 3.8 dBi
WSCAC0-6 Pigtail Cable 6 ft (1.8m)
WSCAM12-6 M12 Wiring harness cable, 8 pin, 6 ft (1.8 m)
ZXTMT Cable Gland/Conduit Kit
