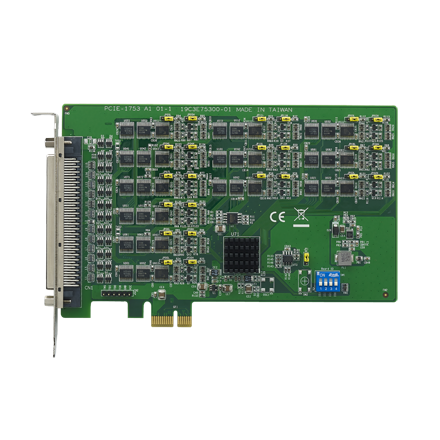

Advantech PCIE-1753

96-ch Digital I/O PCI Express Card

Advantech PCIE-1753
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Fully compatible with PCI-1753
  • Up to 96 TTL digital I/O lines
  • Emulates mode 0 of 8255 PPI
  • Buffered circuits for higher driving capacity than the 8255
  • Interrupt handling capability
  • Output status read-back
  • Supports input data pattern match and change of state functions
  • Keep I/O settings and output status after hot reset
  • Supports both dry and wet contact
  • High-density 100-pin SCSI connector
The PCIE-1753 is a 96-bit digital I/O card for the PCI bus. The card emulates mode 0 of the 8255 PPI chip, but the buffered circuits offer higher driving capability than the 8255. The 96 I/O lines are divided into twelve 8-bit I/O ports. Users can configure each port as input or output via software.
ProdGrafik

General

    Power Consumption
    Typical: 3.3 V @ 1 A, Max.: 3.3 V @ 3 A

    OS Support
    32-bit/64-bit Windows 7/8/10, and Linux

    Dimensions
    168 x 100 mm (6.6" x 3.9")

    Bus
    PCIe

    I/O Connectors
    100-pin SCSI female connector

    Operating Temperature
    0 ~ 60°C (32 ~ 140°F)

    Programming Language
    C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt



TTL DI/O

    Input Channels
    96 (shared)

    Output Channels
    96 (shared)
