Advantech BB-106FX2

The N-TRON® 106FX2 is a low cost, unmanaged six port Industrial Ethernet Switch. It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in industrial data acquisition, control, and Ethernet I/O applications.


PRODUCT OVERVIEW

The 106FX2 Industrial Network Switch is designed to solve the most demanding industrial communications requirements while providing high throughput and minimum downtime.

The 106FX2 provides four RJ-45 auto sensing 10/100BaseTX ports, plus two fiber based Fast Ethernet uplink ports. All TX ports are full/half duplex capable, using "state of the art" Ethernet switching technology. The 106FX2 auto-negotiates the speed and flow control capabilities of the four TX port connections, and configures itself automatically. The two fiber ports are 100BaseFX fiber optic uplinks utilizing industry standard ST or SC duplex connectors.

Since the TX ports of the 106FX2 are auto sensing, there will be no need to make extensive wiring changes if upgrades are made to the host computers, plant systems, or Ethernet I/O modules. The switching fabric simply scales up or down automatically to match your specific network environment.

The 106FX2 supports up to 2,000 MAC addresses, thus enabling these products to support extremely sophisticated and complex network architectures.

The N-TRON 106FX2 is an ideal candidate for upgrading existing hubs and repeaters to increase bandwidth and determinism by virtually eliminating network collisions. The product also keeps the network affordable, while maintaining the plug & play simplicity of a unmanaged hub. The 106FX2 can simplify plant wiring by eliminating the need to bring data acquisition and control network connections back to a climate controlled environment.

The 106FX2 has extended operating environmental specifi cations to meet the harsh needs of the industrial environment. For cost savings and convenience the 106FX2 can be DIN-Rail mounted alongside Ethernet I/O or other industrial equipment. The unique compact size provides a small footprint, conserving space in the most critical dimension.

To increase reliability, the 106FX2 contains redundant power inputs. LEDs are provided to display the link status and activity of each port, as well as power on/off status.

BENEFITS

Industrial Network Switch


• Compact Size, Small Footprint
• Extended Environmental Specifications
• High Reliability/Availability
• Extended Environmental Specifi cations
• Hardened Metal DIN-Rail Enclosure
• High Performance
• High MTBF >2M Hours (measured)


Ease of Use


• Plug & Play Operation
• Four Auto Sensing 10/100BaseTX RJ-45 Ports
• RJ-45 Ports Auto Sense Duplex, Speed, and Cable Type
• Compact DIN-Rail Package


Increased Performance


• Full Wire Speed Capable
• Two 100BaseFX Fiber Uplinks
• Full Duplex Capable
• Eliminates Network Collisions
• Increases Network Determinism

BB-105TX SPECIFICATIONS

Case Dimensions
Height:	3.5" (8.9 cm)
Width:	1.5" (3.8 cm)
Depth	3.6" (9.0cm)
Weight:	0.60 lbs. (0.27 kg)
DIN-Rail:	35mm
Electrical
Input Voltage:	10-30 VDC
Input Current	330mA@24V
Inrush:	7.9Amp/0.7ms@24V
Environmental
Operating Temperature:	-40 oC to 70 oC
Storage Temperature:	-40 oC to 85 oC
Operating Humidity:	10% to 95% (Non Condensing)
Operating Altitude:	0 to 10,000 ft.
Network Media
10BaseT:	>Cat3 Cable
100BaseTX:	>Cat5 Cable
100BaseFX:   Multimode:   Singlemode:	50-62.5/125μm 7-10/125μm
Connectors
10/100BaseTX:	Four (1) RJ-45 TX Ports
100BaseFX:	Two (2) ST or SC Duplex Ports
Recommended Wiring Clearance
Front:	5" (12.7 cm)
Top:	1" (2.54 cm)
Regulatory Approvals
	FCC Title 47 Part 15 Class A, ICES-003-Class A, CE: EN61000-6-2, EN61000-3-2,3; IEC61000-4-2,3,4,5,6,11 EN55011 UL/cUL: Hazardous and Non-Hazardous Locations Class I Div 2, Groups A, B, C, D , T4A and ANSI/ISA 12.12.01-2000
Designed to comply with:	IEEE 1613 for Electric Utility Substations NEMA TS1/TS2 for Traffic Control

Ordering Information

Available Modules

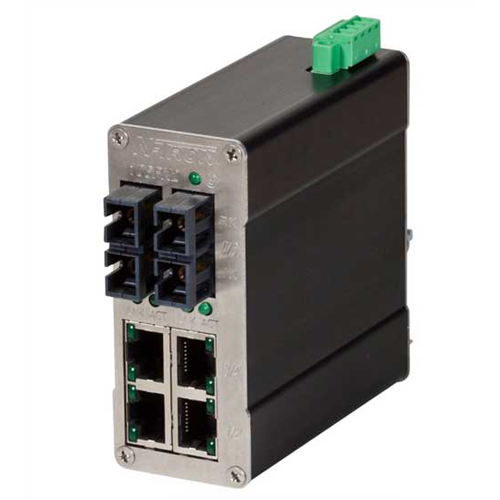

BB-106FX2-SC	UNMANAGED 6PORT, 4-10/100TX, 2-100FX UPLINK,DIN-RAIL, MM, SC

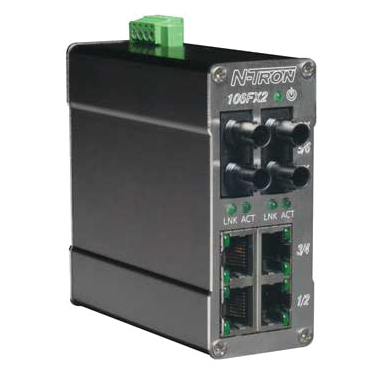

BB-106FX2-ST	UNMANAGED 6PORT, 4-10/100TX, 2-100FX UPLINK,DIN-RAIL, MM, ST
BB-106FXE2-ST-15	UNMANAGED 6PORT, 4-10/100TX, 2-100 FX, DIN-RAIL, SM, ST, 15KM
