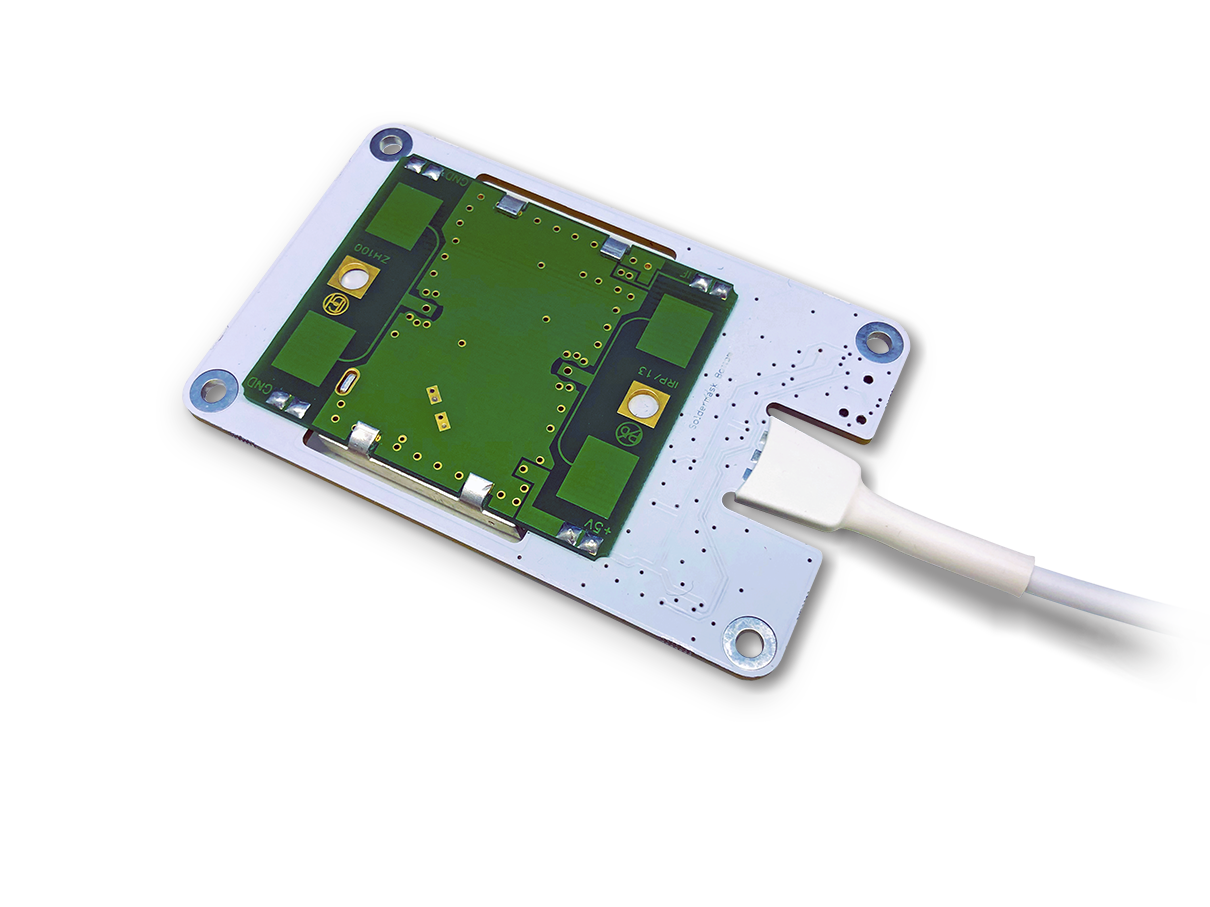

Nexmosphere X-Eye Motion

The X-Eye Motion sensor can detect the amount of motion in its detection field. This sensor can be installed behind a wall or virtually any existing surface, resulting in a completely invisible embedded sensor solution.

X-talk

The XY motion sensor can easily be connected to any of the Nexmosphere Xperience controllers using the X-talk inter face. All settings of the XY sensor are programmable on the controller, enabling a seamless integration in your application.

• Plug and smile interface
• Compatible with any Nexmosphere Xperience Controller
• Powered by and programmable with Nexmosphere Xperience Controller

Motion detection

Motion detectors can be extremely valuable to trigger your Xperience to start at just the right moment. As soon as a person enters the detection area, the motion sensor will provide a trigger, indicating the amount of motion measured

The microwave dopller radar technology allows for placement behin virtually any surface material creatinga completely invisible embedded solution

• Adjustable detection field via X-Talk settings
• Set different triggers at different amounts of motion

Benefits

• Flat (8mm)easy to integrate
• Securely mounts on any flat surface, horizontal, vertical or angeled
• Adjustable detection range
• Status LED for visual feedback
• Multiple data gathering functionalities on the Xperience controller offer a unique insight into traffic
• Easy to add onto existing installations

Specifications
Mounting Specifications

• Works behind any material, except metal:glass, acrylic, wood,cardboard,stone
• The type and thickness of material influences the range of the detection area
• Two mounting orientations possible for determining the shape of the detection area: horizontal or vertical

Thermal Specifications
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage temperature: -20°C to +05°C/-4°F to +122°F


Electrical Specifications
Operating Voltage: 5V DC (via X-talk interface)
Power Consumption: 50mA
Microwave frequency: 10.525Ghz


Miscellaneous

• Mounting holes for easy fixation
• 1-year warranty (optional 3-year extended warranty aavailable)

Packaging
Items per Carton: 1,10 or 50 pcs


Standards and Certifications
Compliant with IEC 6090-1(ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHs compliant


Mechanical Dimensions
LxWxH: 75x46x8 mm
Screw Fixation: 68x39mm


Ordering Information

Product ID	Description	Netto Weight	Quantity
XY-320	X-Eye Motion detection (radar technology)	30g	1 pc
