Nexmosphere X-Eye Presence & Proximity

X-Eye Preseence & Proximity

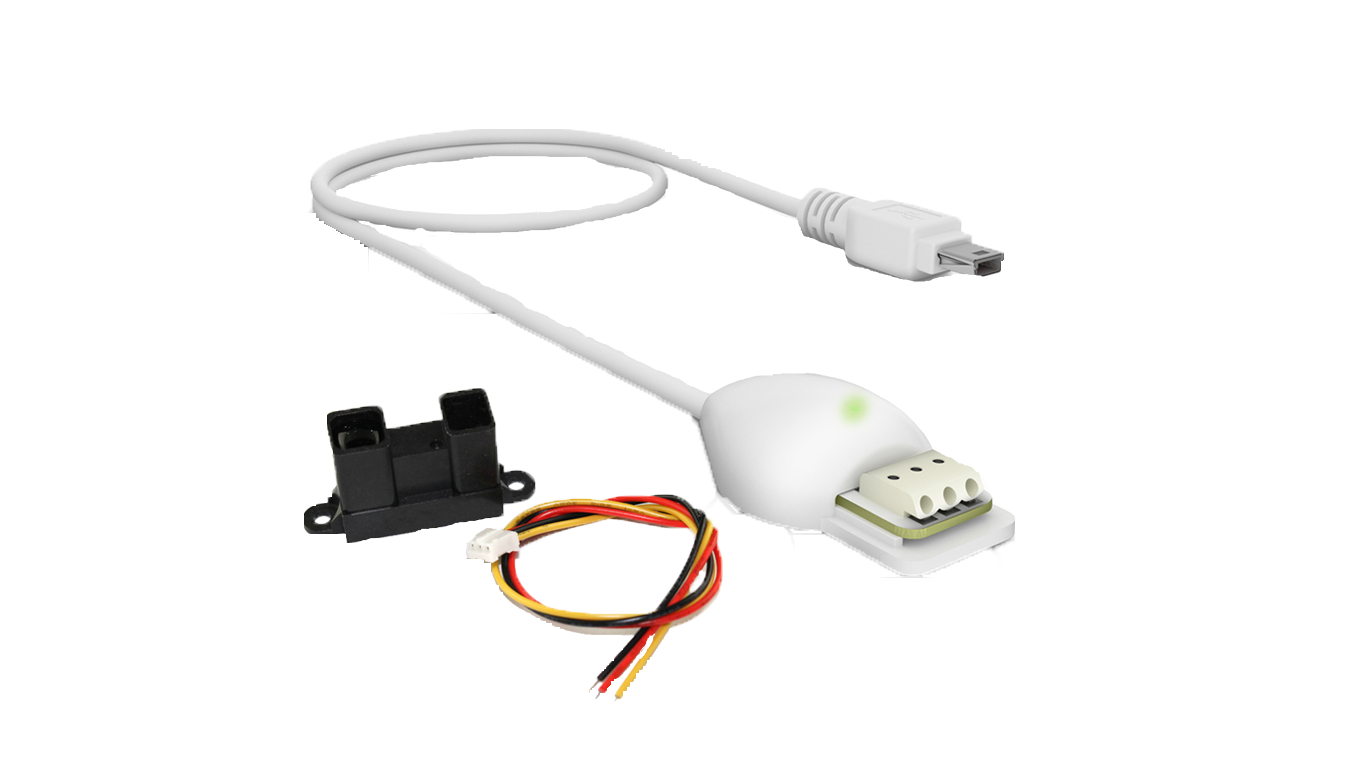

The X-Eye Presence sensor is a narrow-beam IR sensor which can detect if an object or person is present, and if so, indicate the distance to the person in relation to the sensor. This enables implementation of multiple trigger zones, such as head-turning lighting effects on connected LED lighting when a person is far away, the appearance of call-to-action video content when they approach and appearing touch buttons when the person is standing right in front of your display.


X-talk

The XY motion sensor can easily be connected to any of the Nexmosphere Xperience controllers using the X-talk interface. All settings of the XY sensor are programmable on the controller, enabling a seamless integration in your application.

• Plug and smile interface
• Compatible with any Nexmosphere Xperience Controller
• Powered by and programmable with Nexmosphere Xperience Controller

Presence & proximity detection

Presence & proximity sensors can be extremely valuable to trigger your experience to start at just the right moment. Trigger your presentation to come alive when the shopper is standing at a distance and activate interactive content as soon as the shopper comes close, providing a personal retail experience

• Adjustable settings and trigger zones
• Up to 10 trigger zones available

Benefits

• Unique cable connection (bottom feed or side feed)enables invisble cable installation
• Securely mounts on any flat surfaces, horizontal, vertical or angled
• Easy removable non-marking double sided tape
• Status LED for visual feedback
• Multiple data gathering functionalities on the Xperience controller offer a unique insight into traffic

Specifications

Mounting Specifications

• Mount in such a way that the sensors has a clear view and is not directed towards any (strong) direct light source
• Do not point multiple sensors towards each other or to the same location

Detection Range
XY-11, short range: 5-80cm
XY-14, medium range:15-160cm
XY-17, long range:5-500cm
Beam angle:5.5°(for all ranges)


Thermal Specification
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage Temperature: -20°C to +50°C/-4°F to +122°F


Electrical Specifications
Operating Voltage: 5V DC (via X-talk interface)
Power Consumption: XY-11: 50mA
XY-14: 100mA
XY-17: 350mA


Miscellaneous

• Three cable lengths available (60/120/180cm)
• Custom colors and cable lenghts available on request
• 1 year warranty (optional 3 year extended warranty available)

Standards and Certifications
Compliant with IEC 6090-1(ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHs compliant


Mechanical Dimensions
LxWxH: 37.3 x 22 x 10 mm (sensor interface)
Fixation: Interface: Double sided adhesive tape
Sensor: Screw holes


Odering Information

Product ID	Description	Netto Weight	Quantity
XY-114	X-Eye Presence, short range, narrow beam, 60cm cable	17g	1 pc
XY-115	X-Eye Presence, short range, narrow beam, 120cm cable	23g	1 pc
XY-116	X-Eye Presence, short range, narrow beam, 180cm cable	26g	1 pc
XY-144	X-Eye Presence, medium range, narrow beam, 60cm cable	17g	1 pc
XY-145	X-Eye Presence, medium range, narrow beam, 120cm cable	23g	1 pc
XY-146	X-Eye Presence, medium range, narrow beam, 180cm cable	26g	1 pc
XY-174	X-Eye Presence, long range, narrow beam, 60cm cable	19g	1 pc
XY-175	X-Eye Presence, long range, narrow beam, 120cm cable	25g	1 pc
XY-176	X-Eye Presence, long range, narrow beam, 180cm cable	28g	1 pc
