Nexmosphere XT-1G

XT-1G

XT Range
The nexmosphere X-Touch range is a family of touch button boards in various sizes and configurations that can be combined in one setup. The X-touch technology enables button placement hidden inside the display structure for seamless, non visible integration into the application. The technology works with multiple surface materials, such as acrylic, glass, carton, and wood. The button sensitivity and responsiveness can be adjusted by programming the Xperience controller accordingly.

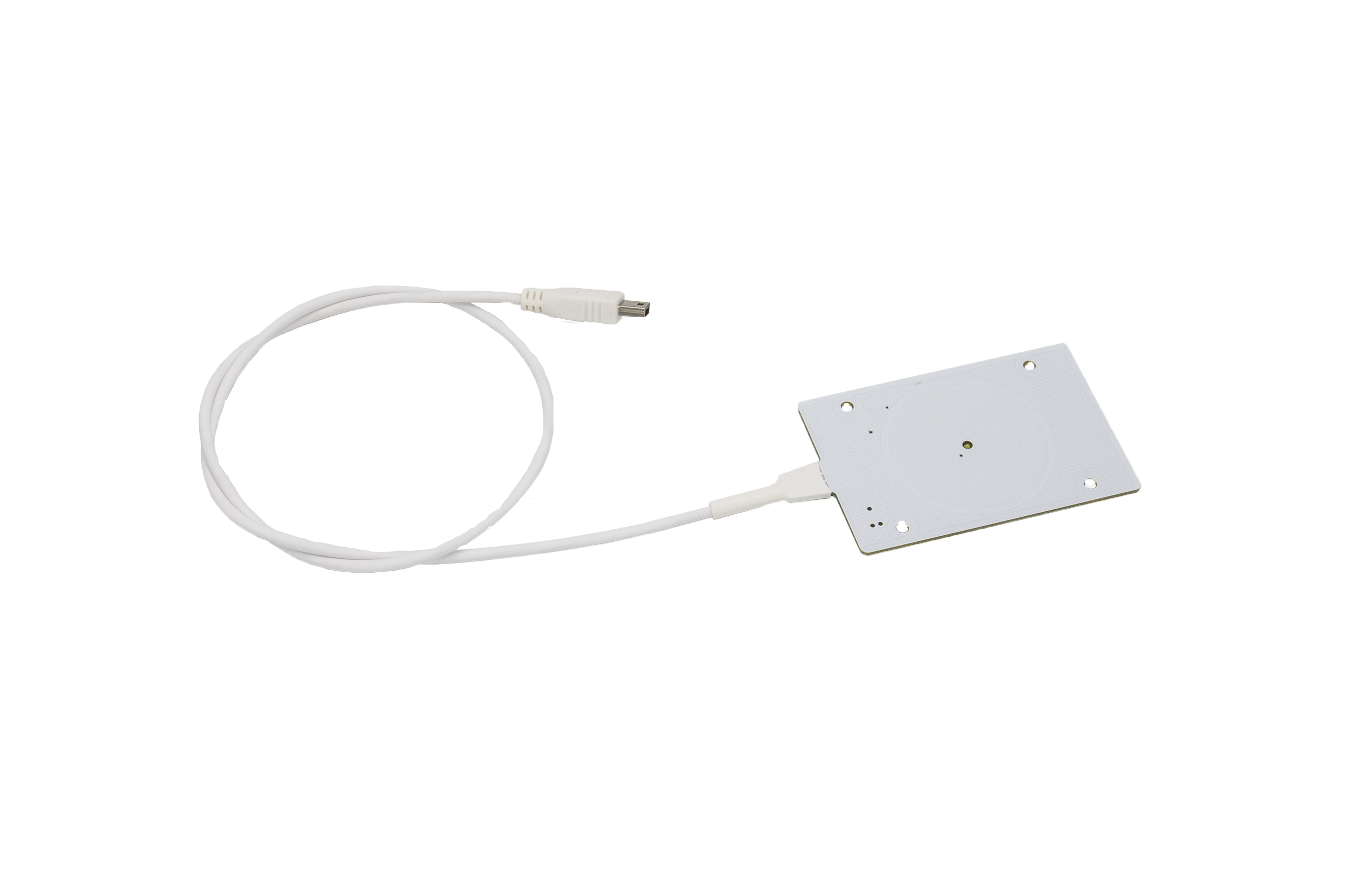

The X-Touch 1G is a rectangular board with one large-sized capacitive touch button.


X-touch technology

• Works with multiple materials, such as acrylic, glass, carton, stone, and wood
• Compatible with any nexmosphere Xperience controller
• Powered and programmable by nexmosphere Xperience controller

X-talk

The X-Touch boards can easily be connected to any of the nexmosphere Xperience controllers using the X-talk interface.All settings of the X-Touch are programmable on the Controller enabling a seamless integration in your application

• Plug and Smile interface
• Compatible with any nexmosphere Xperience Controller
• Powered and programmable by nexmosphere Xperience controller

Benefits

• Ultra flat (4mm) easy to integrate
• Bright white indication LED (custom colors on request)
• 4 programmable options for LED output: on, off, slow and fast blink
• Multiple data gathering functionalities on Xperience controller offer unique insight into how your application is being used
• Auto-calibration and auto-start for highly reliable applications (24/7)

Specifications

Mounting specifications

• Keep clean from metal objects or surfaces
• Maximum material thickness: 1-16 mm, depending on the material
• Works on glass, acrylic, wood, cardboard, stone and non-metalic materials

Thermal Specificaitions
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage Temperature: -20°C to +50°C/-4°F to +122°F


Electrical Specifications
Operating Voltage: 5V DC (via X-Talk interface)
Power Consumption: 10mA


Miscellaneous

• Mounting holes for easy fixation
• Customized layouts and board shapes available on request
• 1-year warranty (optional 3-year extended warranty available)

Packaging
Items per carton: 1, 10 or 50 pcs


Standards and Certifications
Compliant with IEC 60950-1(ed.2);am1;am2
CE certificate
RoHS compliant


Mechanical Dimensions
LxWxH: 74.5 x 50 x 3.4 mm
Screw Fixation: 53 x 40mm


Ordering Information

Product ID	Description	Qouantity
XT-1GW4	X-Touch, 1 large button, Rectangular, White LED, 60cm cable	1 pc
XT-1GW5	X-Touch, 1 large button, Rectangular, White LED, 120cm cable	1 pc
XT-1GW6	X-Touch, 1 large button, Rectangular, White LED, 180cm cable	1 pc
XT-1GN4	X-Touch, 1 large button, Rectangular, No LED, 60cm cable	1 pc
XT-1GN5	X-Touch, 1 large button, Rectangular, No LED, 120cm cable	1 pc
XT-1GN6	X-Touch, 1 large button, Rectangular, No LED, 180cm cable	1 pc
