Nexmosphere X-Wave DL

XW-DL

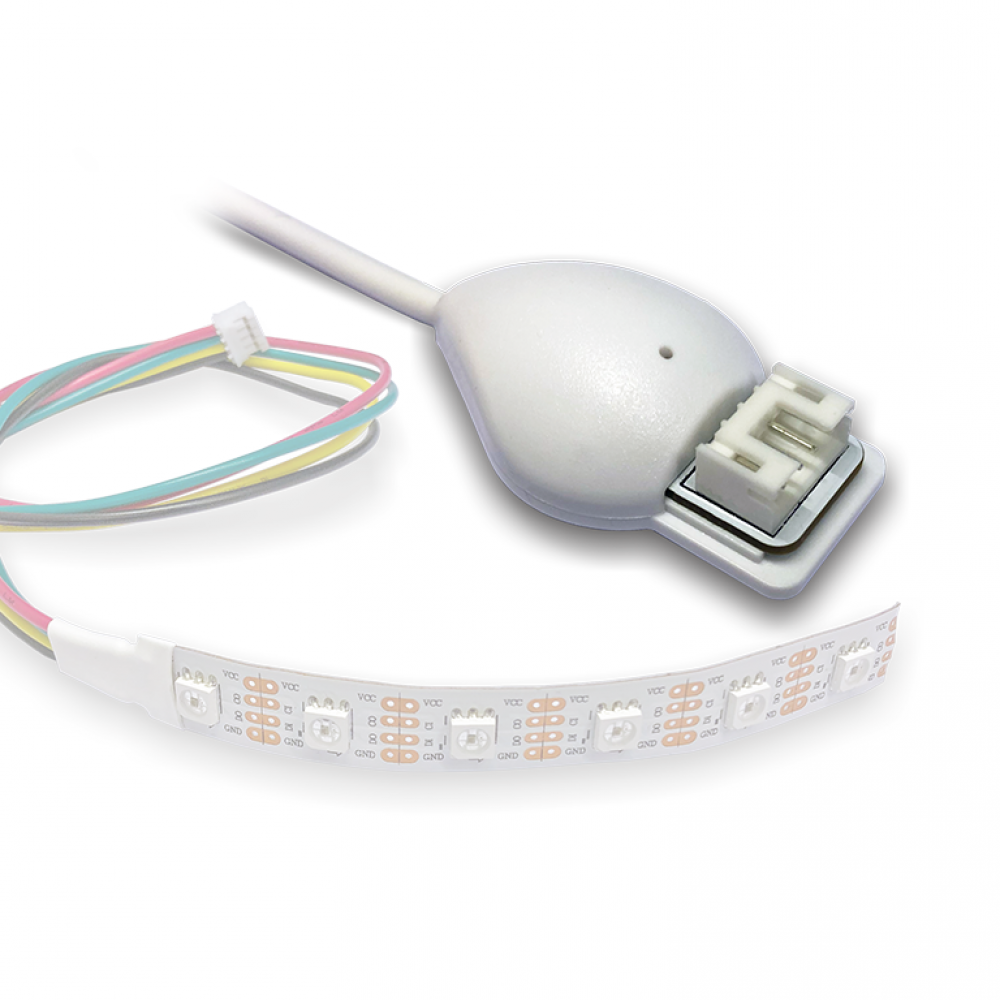

The X-Wave DL is an interface for controlling flexible Pixel LED strips with the X-Wave protocol


X-Talk

The X-Wave interface can easily be connected to any of the Nexmosphere Xperience controllers using the X-talk interface. All settings of the X-Wave interface are programmable on the Xperience Controller, enabling a seamless integration in your application

• Plug and Smile interface
• Compatible with any Nexmosphere Xperience controller
• Powerred by and programmable with Nexmosphere Xperience controller

Wave LED

The X-Wave LED technology shines a new light on animated lighting and allows user selection off one of the numerous pre-programmed patterns and modifying its colors to fit the xact application. Whether it is a gentle soft glow or a complex flashing running light pattern, this featurewill dra w attention or offer visual guidance the way you want it to. The onboard LED drivers eable a smooth dimming from 100-0%

• Preprogrammed patterns with adjustable parameters
• Pattern, speed, color, and brightness control via the connected Xperience controller
• Smooth 12-bit dimming control
• Any desired color programmable with the Xperience Controller
• Fade from one color to another

Benefits

• Unique cable connection (bottom feed or side feed)enable invisible cable installation
• Securely ounts on any flat surface horizontal, veritcal or angled
• Suitable for edge lightning of acrylic materials
• Easy way to get multiple color LED lights integrated in your design without the cable connection issues of installing multiple LED strips or RGB LED strips
• In case the connected Pixel LED strip requries more than 450mA, additional power supply wiring can be added onto the Pixel LED strip

Specification

Thermal Specification
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage temperature: -20°C to +50°/-4°F to +122°F


Electrical Specifications
Operating Voltage: 5V DC (via X-talk interface)
Power Consumption:50mA
Max. LED output current: 450mA

In case the connected Pixel LED strip requires more than 450mA, additional power supply wiring can be added to the Pixel LED Strip


Miscellaneous

• Three cable lenghts available (60/120/180cm)
• Both horizontal and vertical mounting possible
• 1 year warranty (optional 3 year extended warranty available)

Packaging
Items per Carton: 1,10 or 50 pcs


Standards and Certification
Compliant with IEC 60950-1(ed.2);am1;am2
CE certificate
RoHS compliant


Mechanical Information
LxWxH: 37.3 x 22 x 10mm
Fixation: Double sided adhesive tape


Ordering Information

Product ID	Description	Quantity
XW-DL4	X-Wave, Linear wave control, 60cm cable	1 pc
XW-DL5	X-Wave, Linear wave control, 120cm cable	1 pc
XW-DL6	X-Wave, Linear wave control, 180cm cable	1 pc
