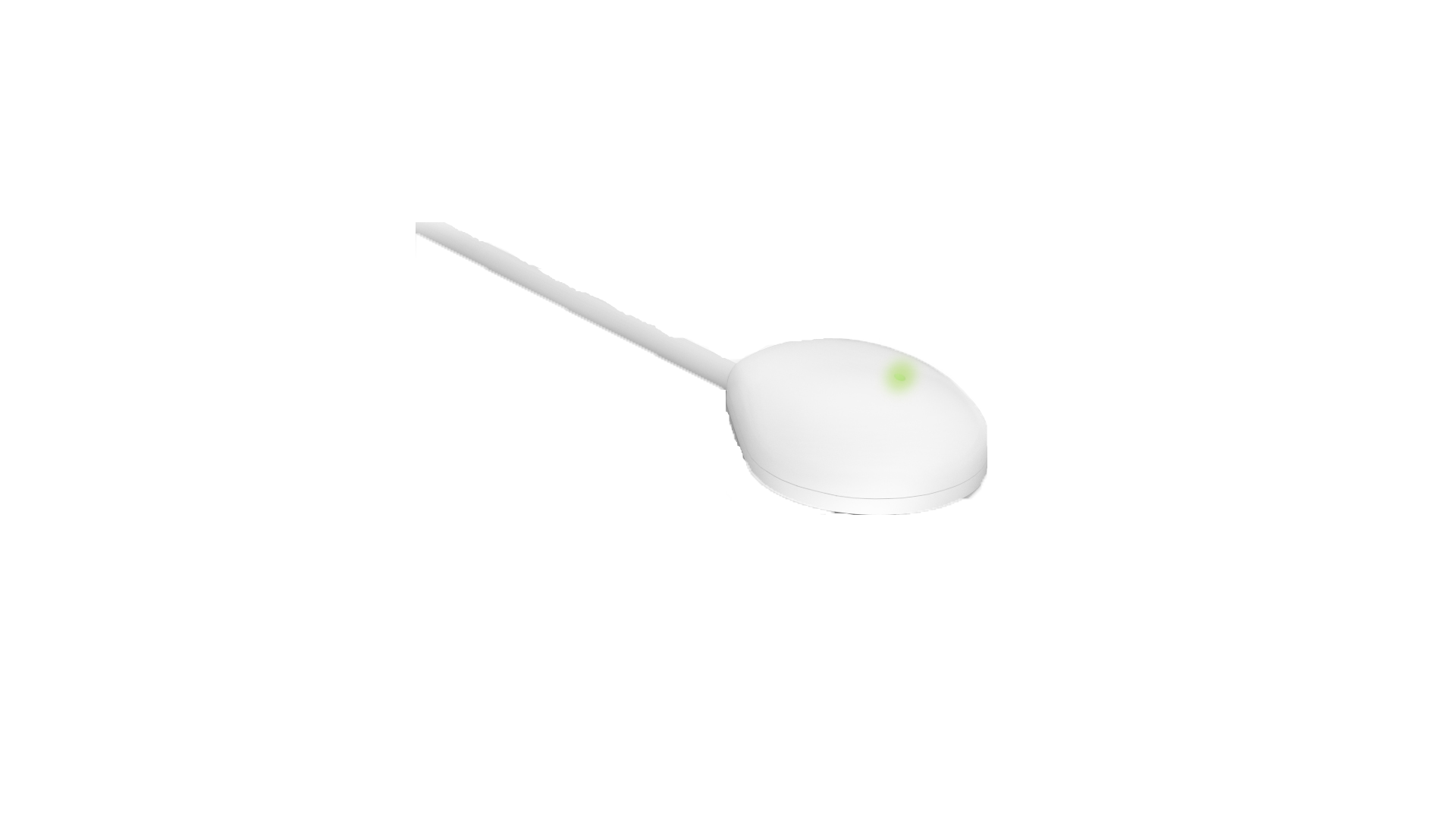

Nexmosphere X-Dot X

X-talk
The X-Dot can be easily connected to any of the nexmosphere Xperience controllers using the X-talk interface. All settings of the X-dot are programmable on the Xperience controller side enabling a seamless integration in your application.

• Plug and smile interface
• Compatible with any nexmosphere Xperience controller
• Powered and programmable by the nexmosphere Xperience controller for ease of use

Pickup detection

The sensor registers a pick-up of the merchandise as well as when its put back on the shelf(place-down). Both events can be used as triggers on the Xperience controller for example to start a video or ilumiate a string of LEDs. The Xperience controller can also run statistics showing you those products that are often picked and those that are the less preferred one providing you a valuable insight into shopping behavior

• Programmable sensitivity on the Xperience Controller
• Pick-up and place-down registration
• Highly responsive
• False detection eliminated (multiple sensor shake)

Security

The alarm gets triggerd if the merchandise is removed cables are cut or removed from the Xperience controller. The micro-optical sensor has no moving parts eliminating false alarm caused by most commonly used micro-switches

• No mechanical moving parts that can break by intense use
• Easy to setup and aintain (plug and secure)
• Status LED clearly indicates alarm status(programmable/ dimmable on Xperience controller

Benefits

• Unique cable connection (bottom feed or side feed) enables invisible calbe installation
• Securely mounts on any flat surface, horizontal, vertical or angled
• Light & flexible cable allows customers to experience the true weight and fell of the merchandise
• Easy removable non-marking double sided tape
• Multiple data gathering functionalities on Xperience controller offer unique insight in how your application is being used
• Auto-calibration & Auto start for highly reliable applications (24/7)

Specifications

Thermal Specifications


Operating Temperature:
+10°C to +40°C/ +50°F to +104°F

Storage Temperature:
-20°C to +50°C/ -4°F to +1022°F



Electrical Specifications


Operating Voltage:
5VDC (via X-talk interface)

Power Consumption:
100mA



Standards and Certifications


Compliant with IEC 60950-1(ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHS compliant



Miscellaneous


Three cable lenghts available (60/120/180cm)
Custom colors and cable lenght available on request
1 year warranty (optional 3 year extended warranty available)



Packaging


Items per carton: 1, 10 or 50 pcs



Mechanical Dimensions

LxWxH:
29 x 22 x 10 mm

Fixation:
Double sides adhesive tape

ORDERING INFORMATION

Available Modules
XDW-X34	X-Dot X Pick-up & Security, White, 60cm
XDW-X35	X-Dot X Pick-up & Security, White, 120cm
XDW-X36	X-Dot X Pick-up & Security, White, 180cm
XDW-X24	X-Dot X Security only, White, 60cm
XDW-X25	X-Dot X Security only, White, 120cm
XDW-X26	X-Dot X Security only, White, 180cm
XDW-X14	X-Dot X Pick-up only, White, 60cm
XDW-X15	X-Dot X Pick-up only, White, 120cm
XDW-X16	X-Dot X Pick-up only, White, 180cm
