XL-SNAPPER ACTIVE SECURITY & PICKUP (FLAT)

XL range

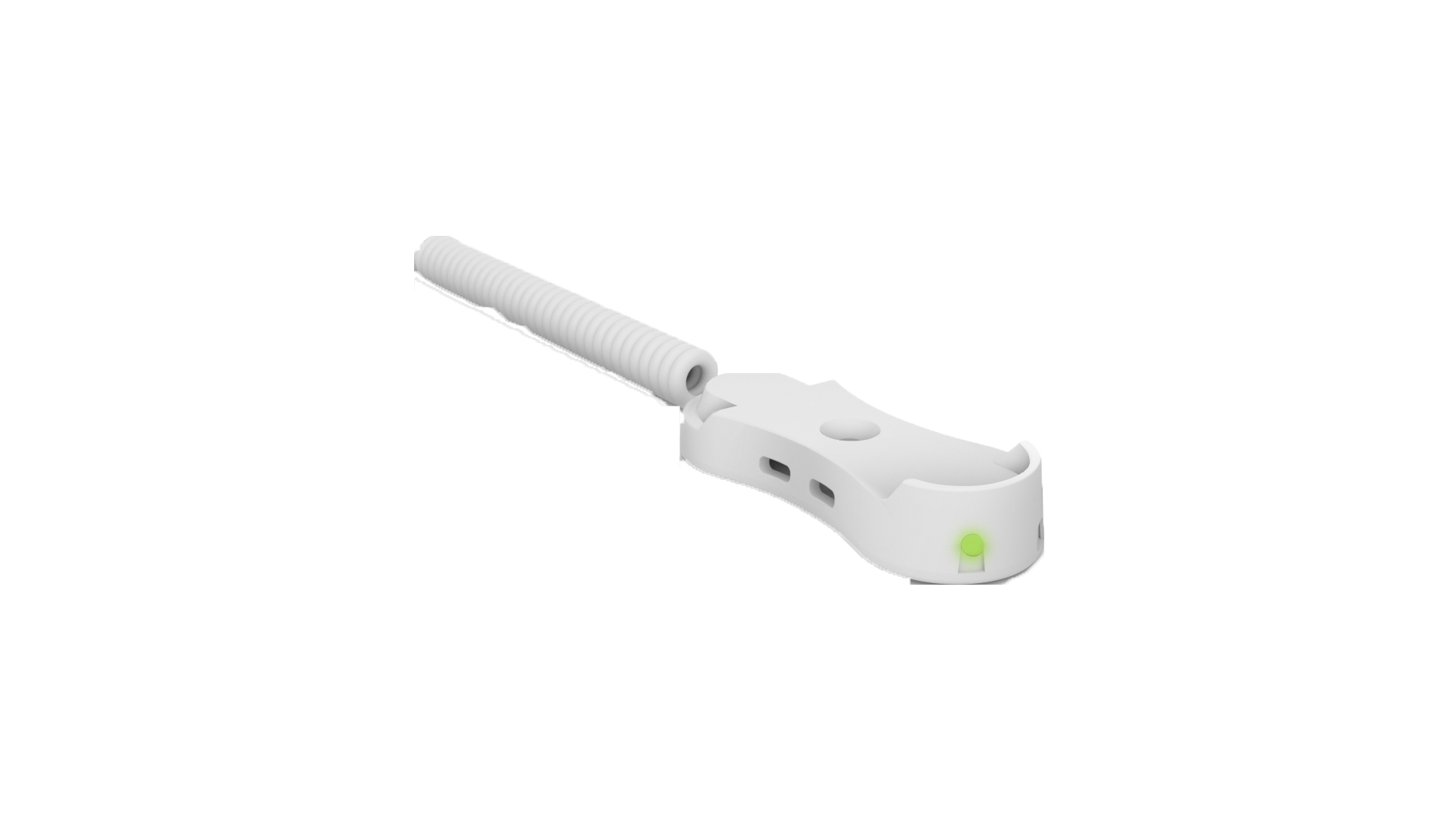

The nexmosphere XL-Snapper is a unique product that displays larger or heavier products out of the box like a tablet or a kitchen blender. It is simple to install, use, and maintain due to the high-quality finishing and non-marking double sided tape.

The XL-snapper X is a pickup detector and can be used as an active security device as well. When product is lifted, the XL-Snapper X register the movement and can trigger any event on the connected Xperience controller such as a video, to start or an auido track to play.


X-talk

The XL-Snapper can be easily connected to any of the nexmosphere Xperience controllers using the X-talk interface. All settings of the XL-Snapper are programmable by the controllerenabling a seamless integration in your application.

• Plug and smile interface
• Compatible with any nexmosphere Xperience controller
• Powered and programmable by the nexmosphere Xperience controller for ease of use

Pickup detection

The sensor registers a pick-up of the merchanidse as well as when it is put back on the shelf (place-down). Both events can be used as trigger on the Xperience controller for example to start a video or illuminate a string of LEDs. The Xperience controller can also run statics showing you those products that are often picked and those that are the less preferred ones providing you a valuable insight into shopping behavior

• Programmable sensitivity on the Xperience controller
• Pick-up and place-down registraiton
• Highly responsive
• False detection eliminated (multiple sensor shake)

Security

The alarm gets triggered if the merchandise is removed cables are cut or removed from the Xperience controller. The micro-optional sensor has no moving parts eliminating false alarm caused by most commonly used micro-switches.

• No mechanical moving parts that can break by intense use
• Easy to setup and maintain (plu and secure)
• Status LED clearly indicates alarm status (programmable/ dimmable on Xperience controller)

Benefits

• 4 strong neodymium magnets ensure that the product always returns to its original position
• Securely mounts on any flat surface, horizontal, vertical, or angled
• Light and flexible cable allows customers to experience the real weight and feel of the merchandise
• Easily removable non-marking double-sided tape
• Multiple data gathering functionalities on the Xperience controller offer an unique insight into how your application is being used
• Auto-calibration and autostart for highly reliable applications (24/7)

Specifications

Thermal Specifications
Operating Temperature: +10° to +40°C/+50°F to +104°F
Storage Temperature: -20°C to +50°C/-4°F to +122°F


Electrical Specifications
Operating Voltage: 5V DC (via X-talk interface)
Power Consumption: 100mA


Standards and Certifications
Compliant with IEC 60950-1 (ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHs compliant


Miscellaneous

• 3 cable lengths available (60/120/180 cm)
• Custom colors and cable length available on request
• 1 year warranty (optional 3-year extended warranty
  available)

Packaging
Items per carton: 1,10 or 50 pcs


Mechanical Dimensions
LxWxH: 69 x 27 x 13,7mm
Screw Fixation: Double sides adhesive tape


Ordering Information

Product ID	Description	Netto Weight	Quantity
XLFW-X34	XL-Snapper Pick-up & Security, flat cover, White, 60cm	40g	1 pc
XLFW-X35	XL-Snapper Pick-up & Security, flat cover, White, 120cm	46g	1 pc
XLFW-X36	XL-Snapper Pick-up & Security, flat cover, White, 180cm	52g	1 pc
XLFW-X24	XL-Snapper Security only, flat cover, White, 60cm	40g	1 pc
XLFW-X25	XL-Snapper Security only, flat cover, White, 120cm	46g	1 pc
XLFW-X26	XL-Snapper Security only, flat cover, White, 180cm	52g	1 pc
XLFW-X14	XL-Snapper Pick-up only, flat cover, White, 60cm	40g	1 pc
XLFW-X15	XL-Snapper Pick-up only, flat cover, White, 120cm	46g	1 pc
XLFW-X16	XL-Snapper Pick-up only, flat cover, White, 180cm	52g	1 pc
