Gefen GEF-DVI-FM2000
DVI FM 2000 Extender (Dual Link)
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Extends any Dual-link DVI source up to 1000 feet (330 meters) over multi-mode 50/125? fiber cable
- Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840 x 2400
- Fiber optic transmission eliminates electromagnetic interference (EMI)

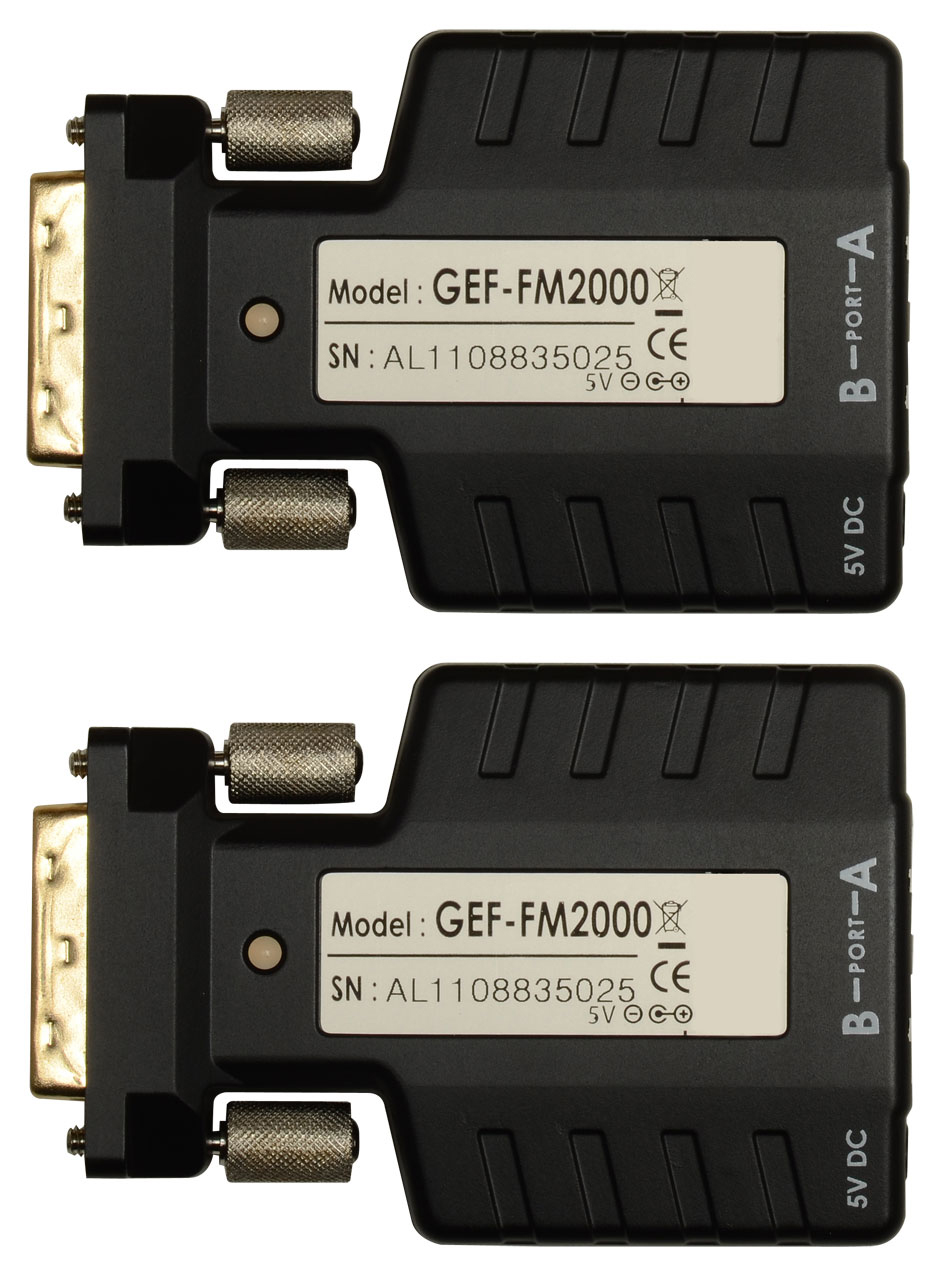

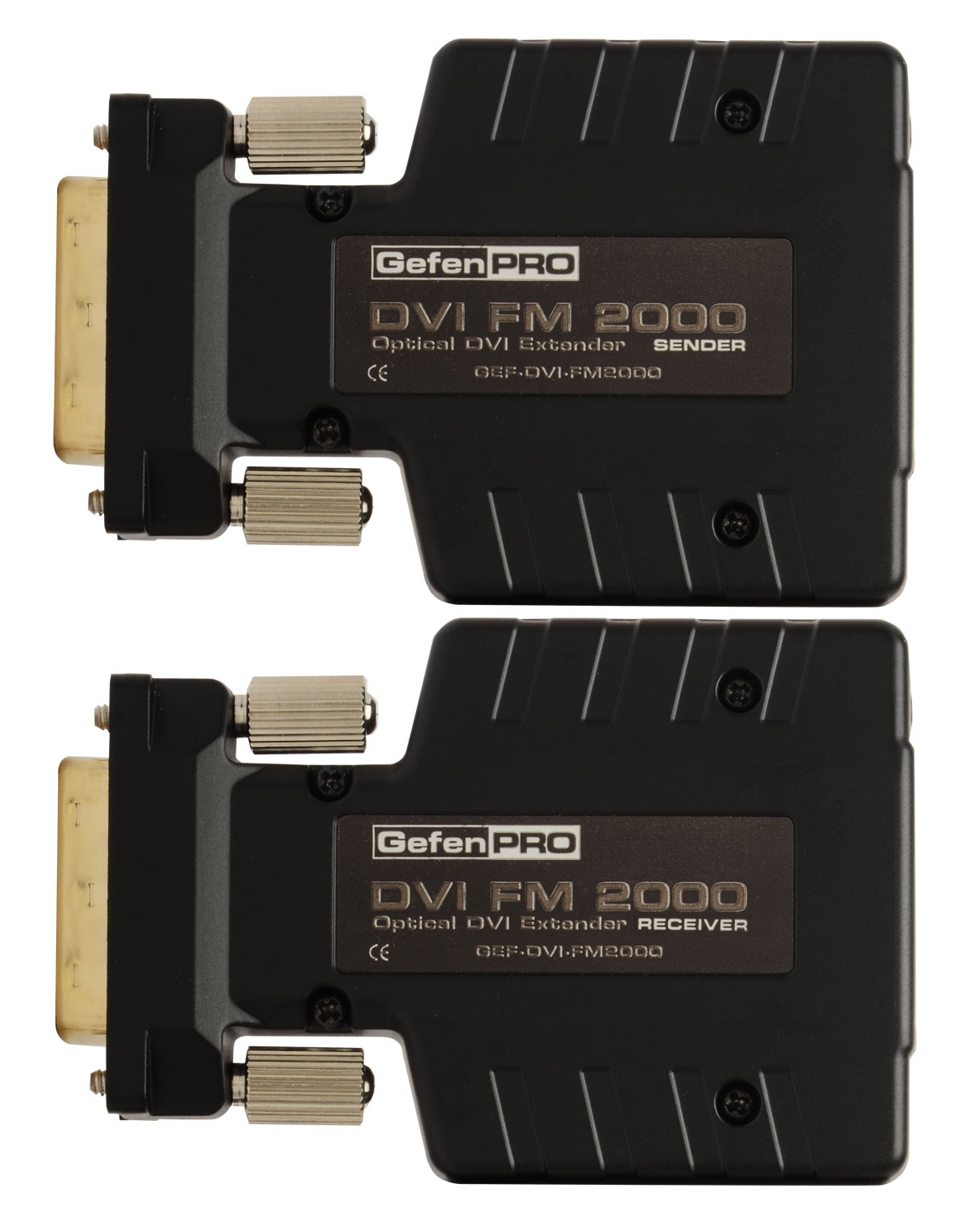

- Compact Sender module and Receiver module provide a clean, easy installation.
- Sender module does not require power if the DVI source provides sufficient power on pin 14 of the DVI connector (most sources do)
- HDCP pass-through

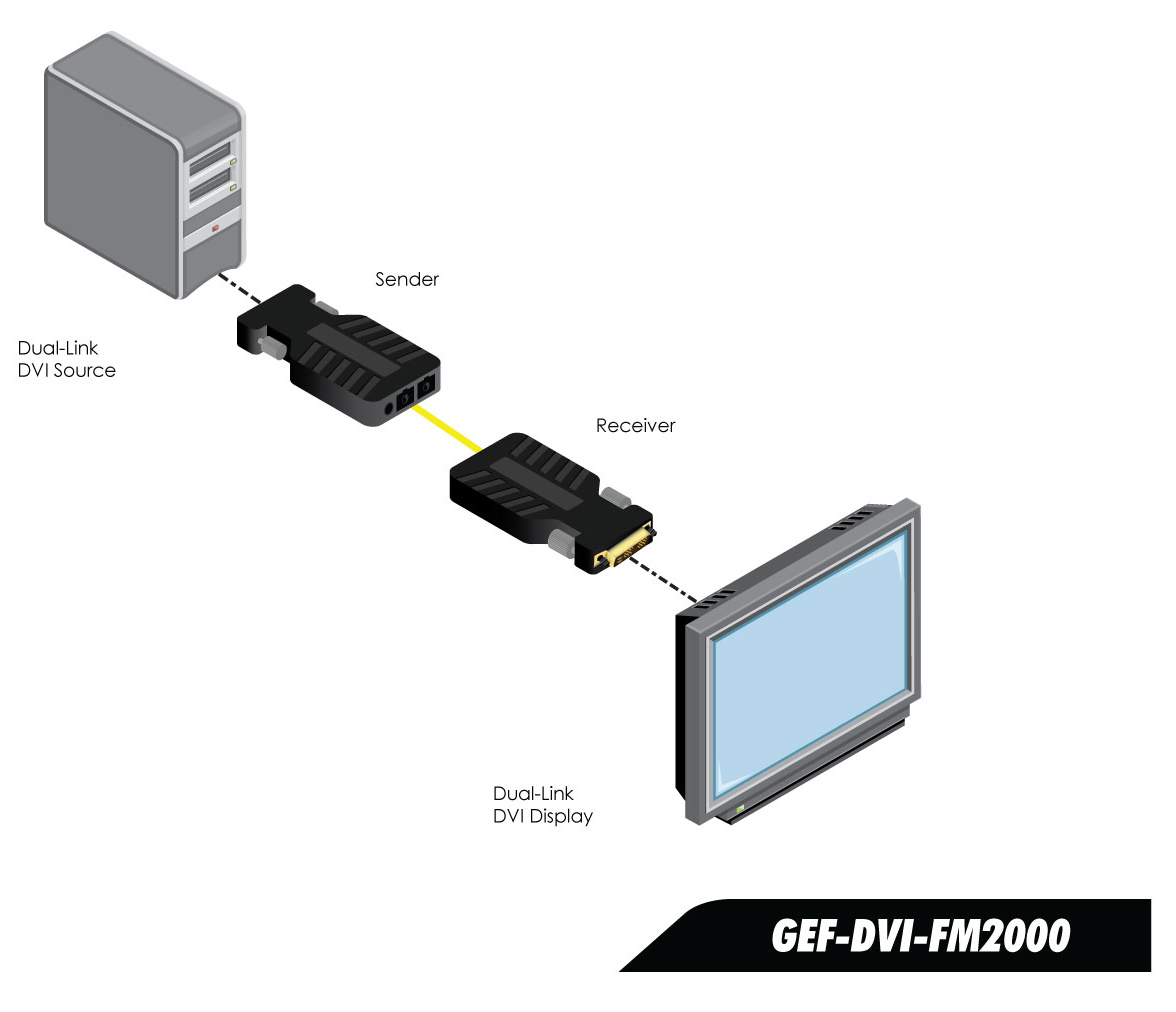

Extend Dual Link DVI up to 1000 feet (300 meters) over two fiber optic cables
The Gefen FM2000 Dual-link DVI Fiber Optic Extender allows Dual-link DVI signal to be extended up to 1000 feet (300 meters) away. This extender is the ideal for installations where a DVI source and display are located apart from each other in an interference-prone operating environment. Two strands of SC-terminated multimode fiber optic cable provides maximum extension and provides excellent protection from electromagnetic interference (EMI), and preserving signal integrity.
Video Support
Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840 x 2400
Specifications
- Maximum Pixel Clock:
2 x 165 MHz

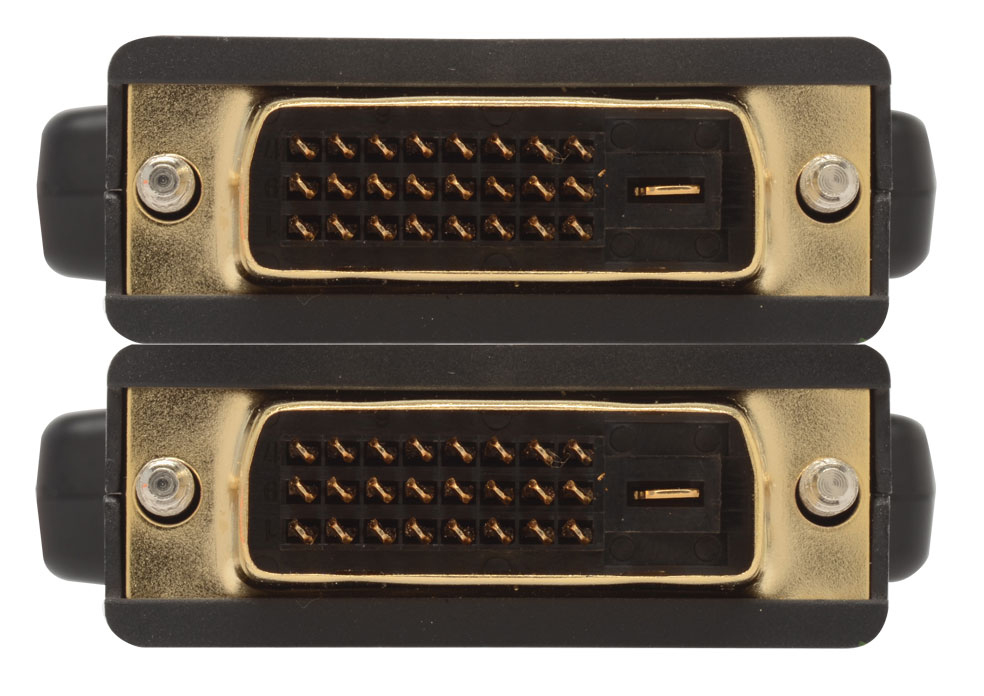

Video Input Connector (Sender):
(1) DVI-D 24-pin, male
Video Output Connector (Receiver):
(1) DVI-D 24-pin, male

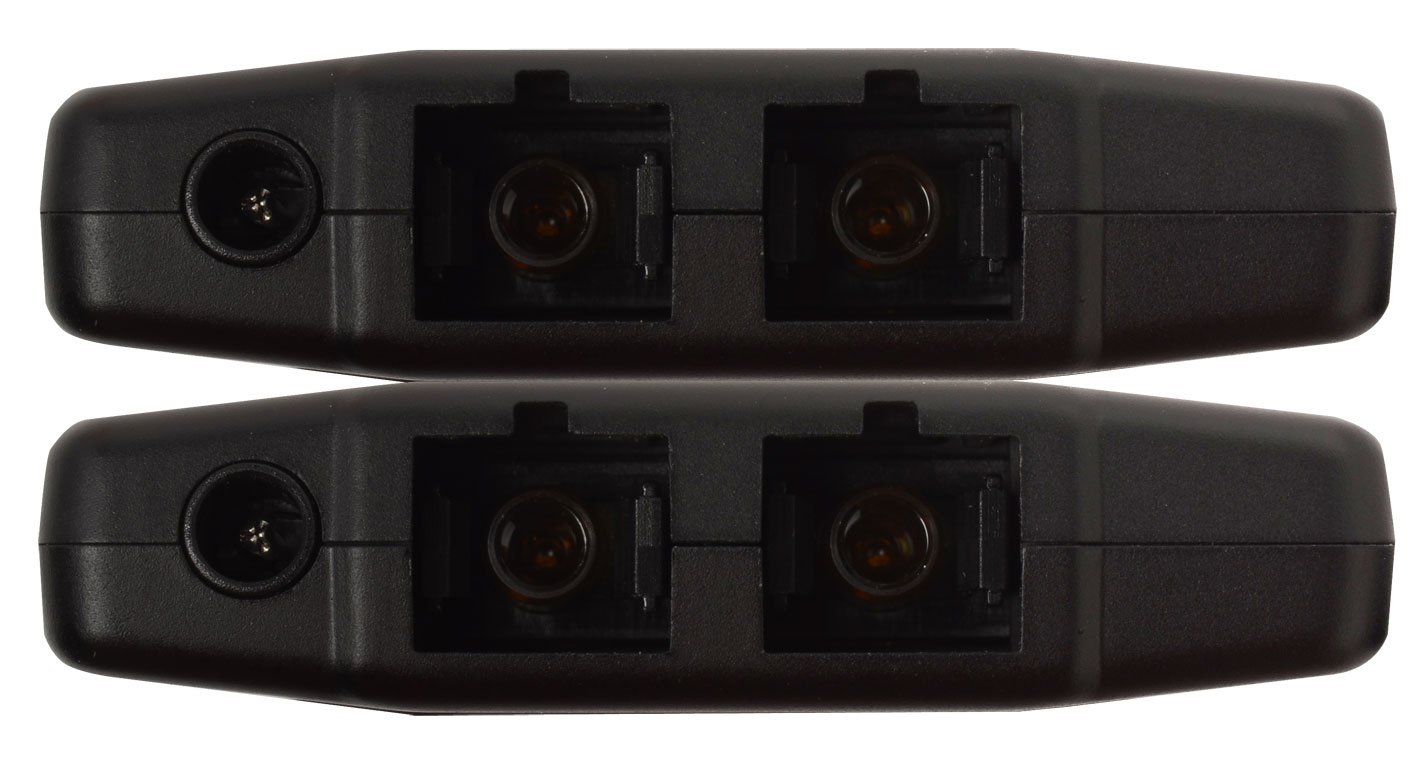

Fiber Optic Connectors (Sender / Receiver):
(2) Type SC fiber connector
Fiber Cable:
CAB-2SC-150-M (50° multi-mode)
Power Supply (Receiver):
5V DC (Sender power supply optional)
Power Consumption (Receiver):
1.3W (max.)
Operating Temperature:
0° - 50° C
Storage Temperature:
-20° - 50° C
Dimensions:
2" W x 3" D x 0.6" H
Shipping Weight:
1 lb.
In The Box
| DVI FM 2000 - Sender unit (GEF-DVI-FM2000S) | 1 |
| DVI FM 2000 - Receiver unit (GEF-DVI-FM2000R) | 1 |
| 5V DC power supply (EXT-PS52AIP-1.3) | 1 |
| Quick Start Guide (QSG-GEF-DVI-FM2000) | 1 |
