Gefen EXT-UHD-CAT5-ELRPOL

Extend HDMI, RS-232, Ethernet and Bi-Directional IR over a signle CAT-5 up to 495/150m

The Gefen 4K Ultra HD ELR-POL Extender uses the Gefen implementation of the HDBaseT technology to extend HDMI up to 495 feet (150 meters) using one CAT-5e cable.


Video Support
Resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 or 30Hz 4:4:4) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.


Audio Support

The EXT-UHD-CAT5-ELRPOL supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio.


IP & Serial Extension

This product provides Ethernet, RS-232 and 2-way IR extension between the Sender and the Receiver units, making 10/100BaseT wired Ethernet connection available at the remote location without the need to run a separate cable. It also allows the transfer of IR commands and RS-232 communications between two remote locations. RS-232 and Bi-Directional IR can be used to control A/V sources placed near the Sender unit and to send automation commands to the display or another device placed near the Receiver unit.


Bi-Directional Power Over Line

Gefen Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units needs a power supply. This feature simplifies installation.

Specifications

Maximum Pixel Clock:
300 MHz

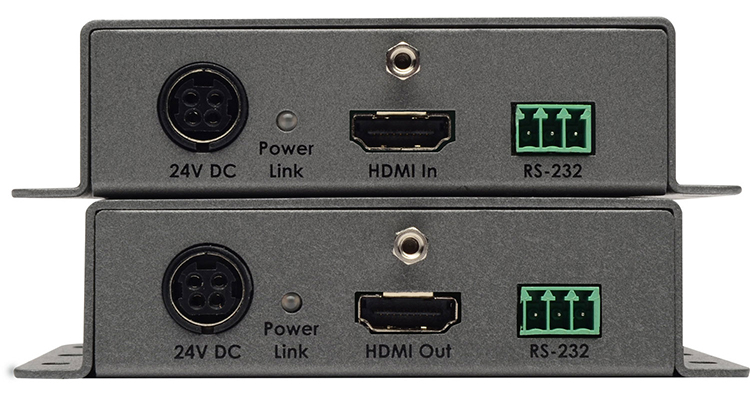

Video Input Connector (Sender):
(1) HDMI Type A 19-pin, female, locking

Video Output Connector (Receiver):
(1) HDMI Type A 19-pin, female, locking

Link Connector (Sender/Receiver):
(1) RJ-45, shielded

RS-232 port (Sender):
(1) 3-pin Phoenix - DB-9 adaptor cable included

RS-232 port (Receiver):
(1) 3-pin Phoenix - DB-9 adaptor cable included

IR Ext/In port (Sender/Receiver):
(1) 3.5mm mini-stereo jack

IR Extender type:
EXT-RMT-EXTIRN

IR Out port (Sender/Receiver):
(1) 3.5mm mini-mono jack

Power/Link LED (Sender/Receiver):
(1) Bi-color: Blue/Green

Power Supply:
(1) 24V DC, locking

Power Consumption (Sender and Receiver combined):
12W maximum

Operating Temperature:
+32 to +113 °F (0 to +45 °C)

Operating Humidity:
5% to 90% RH, non-condensing

Storage Temperature:
-4 to +185 °F (-20 to +85 °C)

Storage Humidity:
0% to 95% RH, non-condensing

MTBF:
50000 hours

Dimensions (W x H x D, Sender / Receiver):
4.3" x 1" x 3.2" (110mm x 26mm x 85mm)

Net Weight (Sender/Receiver):
0.4 lbs (0.2 kg) each

In The Box

Sender Unit (EXT-UHDCAT5-ELRPOLS)	1
Receiver Unit (EXT-UHD-CAT5-ELRPOLR)	1
6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)	1
3-pin Phoenix-to-DB-9 cable adapter (M-M) (ADA-PH-2-DB9-MM-AA)	1
3-pin Phoneix-to-DB-9 cable adapter (M-F) (ADA-PH-2-DB9-MF-AA)	1
IR Emitter (EXT-IREMIT)	1
IR Extender (EXT-RMT-EXTIRN)	1
24V DC Power Supply (EXT-PS24U1AIP-6)	1
Quick-Start Guide (QSG-EXT-UHD-CAT5-ELRPOL)	1
