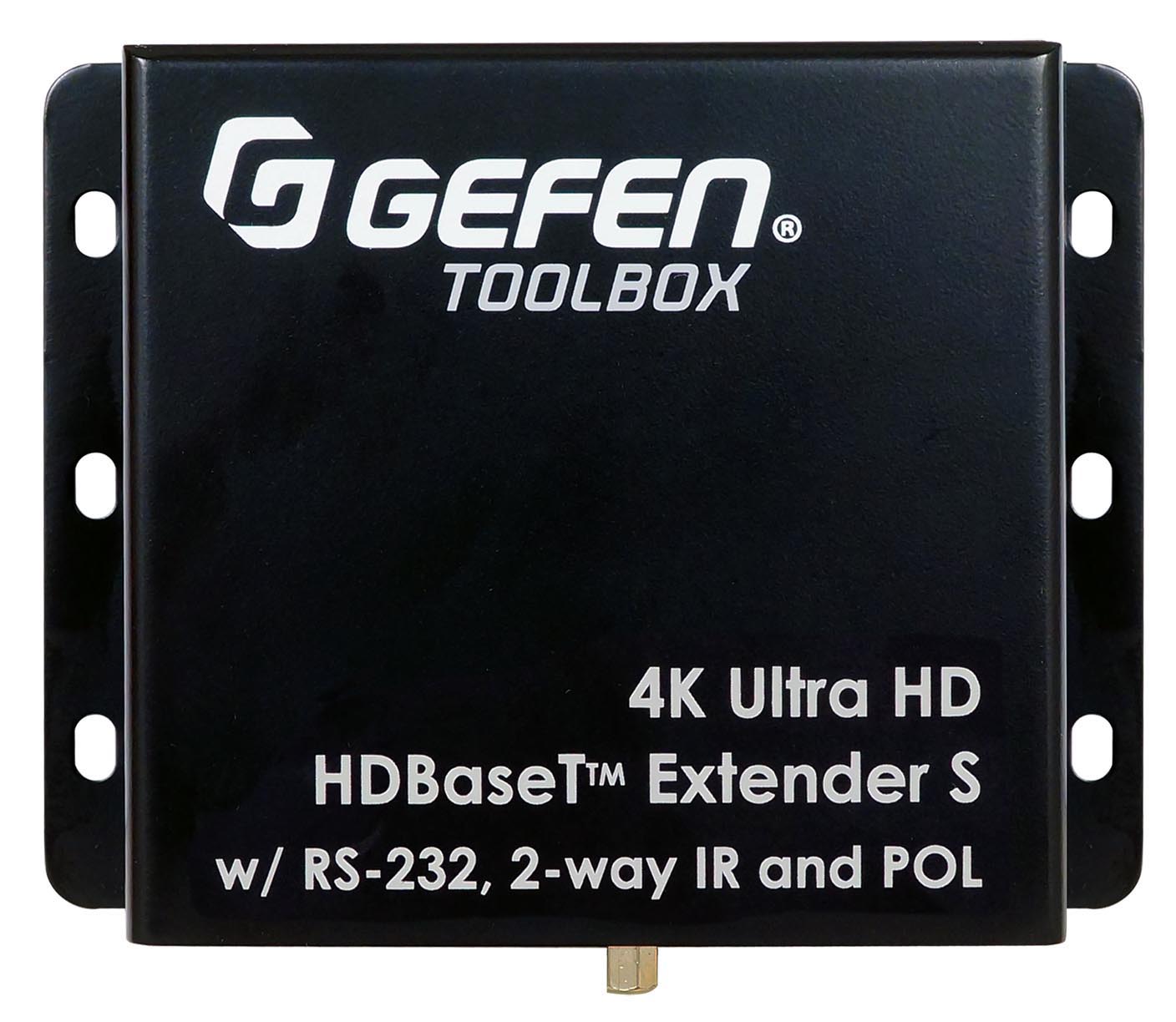

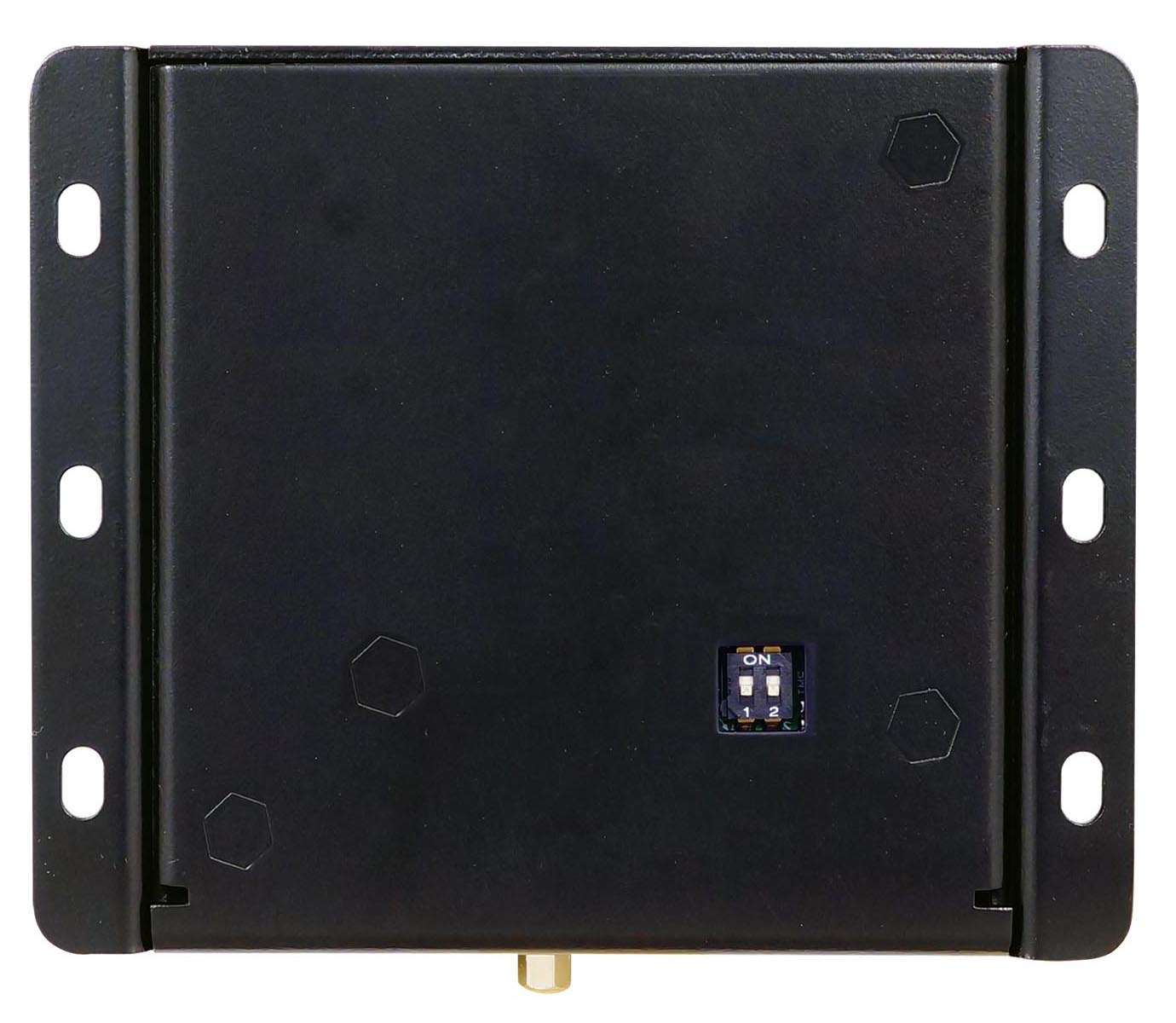

Gefen GTB-UHD-HBT

4K Ultra HD HDBaseT™ Extender over one CAT-5 with RS-232, 2-way IR, and Bi-Directional POL

The GTB-UHD-HBT 4K Ultra HD Extender uses Gefens implementation of the latest HDBaseT technology to extend HDMI up to 495 feet/150 meters at 1080p (8 bits) and up to 330 feet/100 meters at 4K. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight.


Video Support

Resolutions up to 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.


Audio Support

The GTB-UHD-HBT supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio. TOSLINK® Optical Digital Audio can be sent from the display side back to the source and analog audio can be extended from the source side to the Receiver.


IP & Serial Extension

This product provides RS-232 and 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit.


Bi-Directional Power Over HDBaseT

Gefen Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display.


Notes:

1. Shielded (STP) CAT-5e or CAT-6A is recommended. Unshielded (UTP) CAT-5e or CAT-6A may be acceptable depending on cable quality but is not the preferred choice. Care should always be given to keep these cables away from power lines and other sources of electromagnetic interference.

2. This product supports sources up to 4K 300 MHz (60 Hz 4:2:0 or 30 Hz 4:4:4). It is not compatible with sources that are capable of HDR or 4K 600 MHz (60 Hz 4:4:4).

Specifications

Maximum Pixel Clock
300 MHz

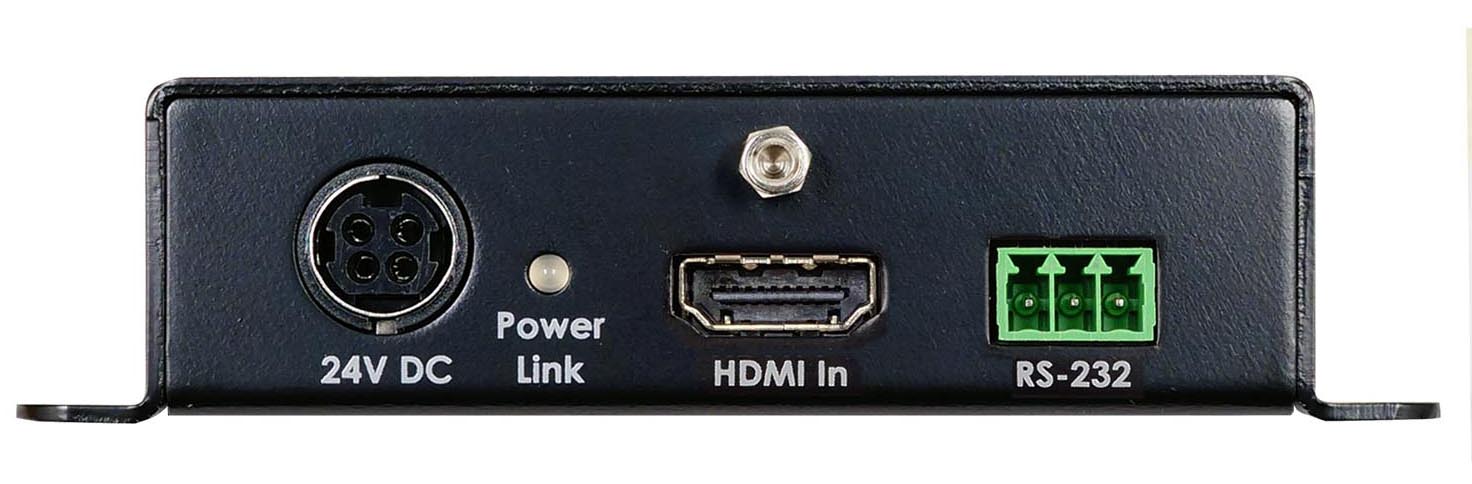

Video Input connector (Sender)
(1) HDMI Type A 19-pin, female, locking

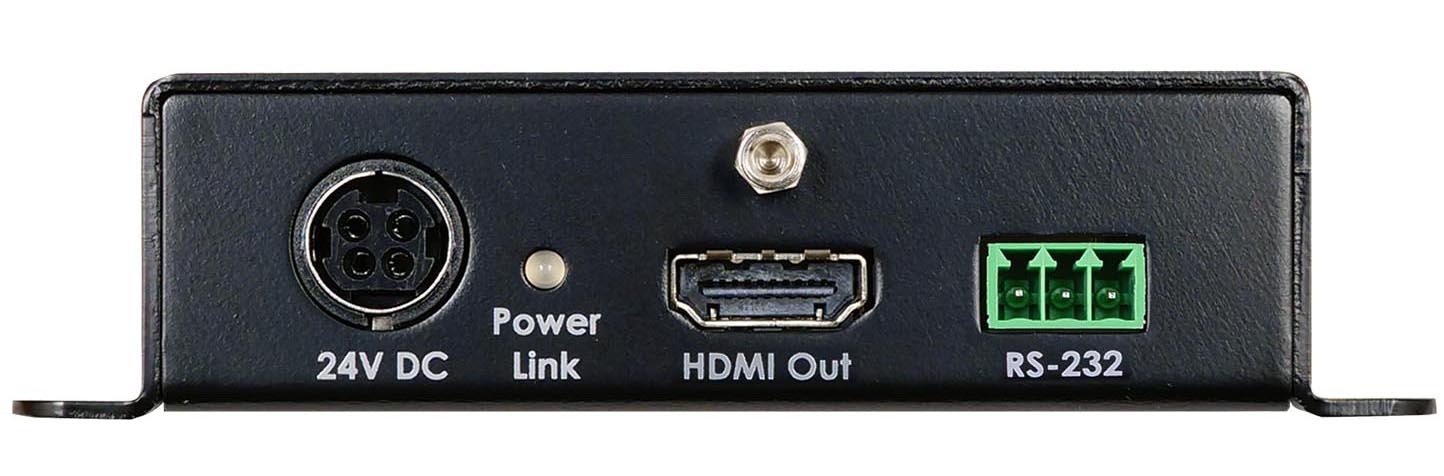

Video Output connector (Receiver)
(1) HDMI Type A 19-pin, female, locking

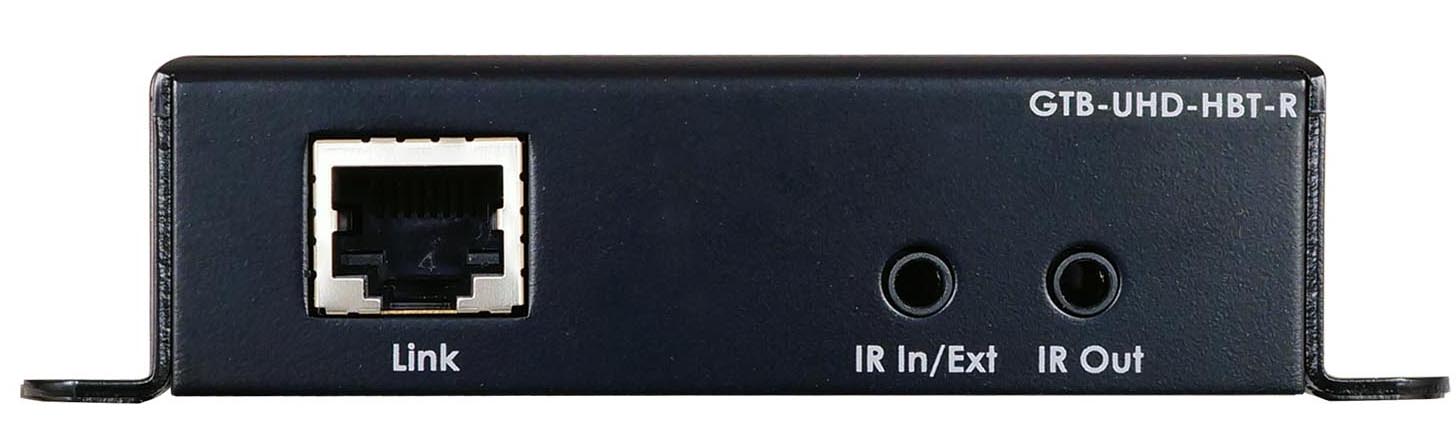

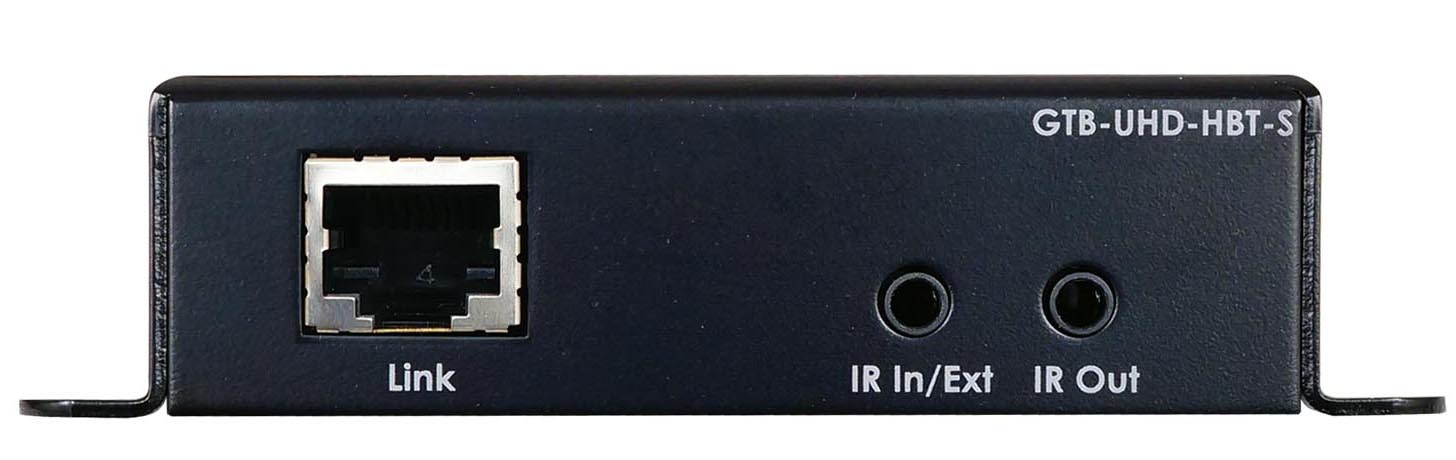

Link connector (Sender/Receiver)
(1) RJ-45, shielded

RS-232 port (Sender)
(1) 3-pin Phoenix - DB-9 adaptor cable included

RS-232 port (Receiver)
(1) 3-pin Phoenix - DB-9 adaptor cable included

IR Ext/In port (Sender/Receiver)
(1) 3.5mm mini-stereo jack

IR Extender type
EXT-RMT-EXTIRN

IR Out port (Sender/Receiver)
(1) 3.5mm mini-mono jack

Power/Link Indicator LED (Sender/Receiver)
(1) Bi-color: Blue/Green

Power Supply
(1) 24V DC, locking

Power Consumption (Sender and Receiver combined)
12W maximum

Operating Temperature
+32 to +122 °F (0 to +50 °C)

Operating Humidity
5% to 90% RH, non-condensing

Storage Temperature
-4 to +185 °F (-20 to +85 °C)

Storage Humidity
0% to 95% RH, non-condensing

MTBF
50000 hours

Dimensions (W x H x D, Sender/Receiver)
4.3" x 1" x 3.2" (110mm x 26mm x 85mm)

Net Weight (Sender/Receiver)
0.4 lbs (0.2 kg) each

Shipping Weight
2.6 lbs. (1.2 kg)
