Gefen EXT-UHDA-HBT2

With Ethernet, RS-232, 2-way IR, 2-way Audio, and Bi-Directional POH

The EXT-UHDA-HBT2 HDMI Extender over HDBaseT™ uses Gefens implementation of the latest HDBaseT 2.0 technology to extend HDMI up to 330 feet (100m) at 4K, using one CAT-5e cable. 1080p Full HD and 1920 x 1200 (WUXGA) 8-bit video can be extended up to 495 feet (150 meters). The new HDBaseT 2.0 Colligo platform provides additional features such as 2-way audio extension and ensures an even more robust and resilient connection than the industry standard HDBaseT. The Gefen Syner-G software with its powerful EDID Management capabilities speeds up configuration, performs real-time performance audits via Link Monitoring, and simplifies in-field firmware updates. Low profile, surface-mountable Sender and Receiver units fit in tight places and accommodate Gefen locking HDMI cables for secure connections.


Video Support

Resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 or 30Hz 4:4:4) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.


Audio Support

The EXT-UHDA-HBT2 supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio. TOSLINK® Optical Digital Audio can be sent from the display side back to the source and analog audio can be extended from the source side to the Receiver.


IP & Serial Extension

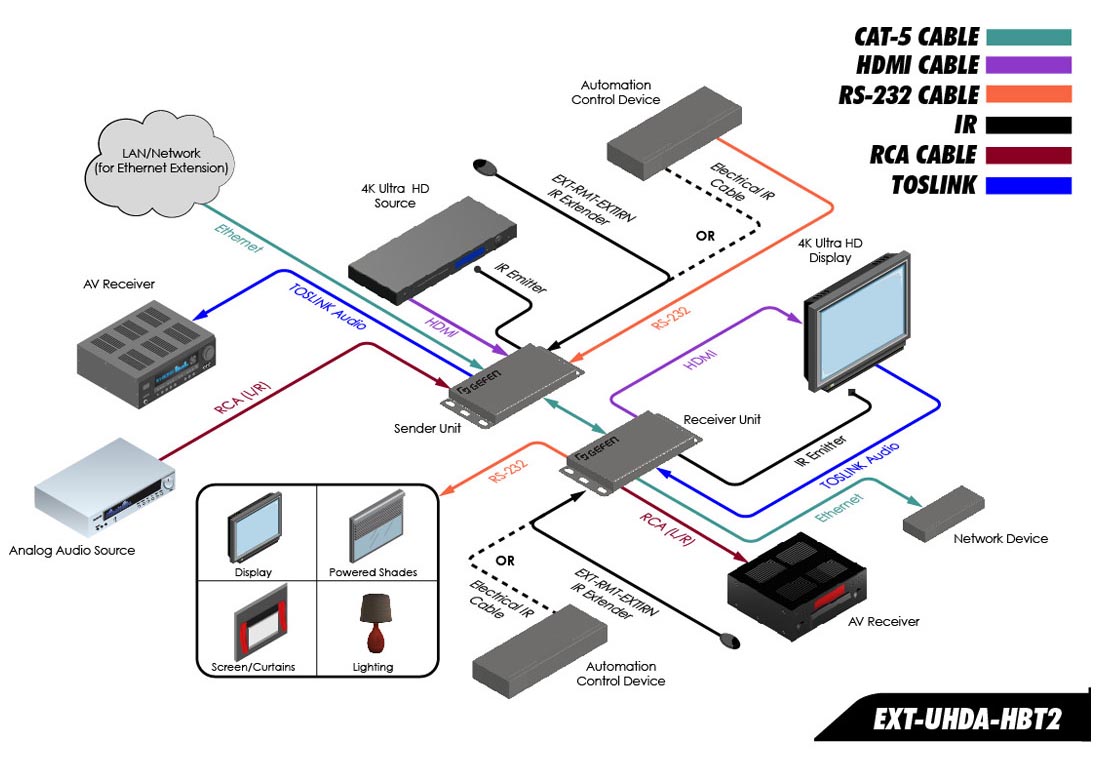

Ethernet connection for a Smart TV can be extended from the source side to the viewing location without the need to run a separate cable. RS-232 and 2-way IR are transferred between the Sender and the Receiver to control the A/V source and the display.


Bi-Directional Power Over HDBaseT

Bi-Directional POH (Power Over HDBaseT) technology provides power from the Sender to the Receiver and vice versa, using the same CAT-5 cable that extends the HDMI and control signals. Only one of the two units needs an external power supply. The POH standard ensures compatibility with other POH class-compliant devices.

Specifications

Maximum Pixel Clock
300 MHz

Video Input connector (Sender)
(1) HDMI Type A 19-pin, female, locking

Video Output connector (Receiver)
(1) HDMI Type A 19-pin, female, locking

Link connector (Sender/Receiver)
(1) RJ-45, shielded, female

Ethernet port (Sender/Receiver)
(1) RJ-45, shielded, female

RS-232 port (Sender)
(1) DB-9, female

RS-232 port (Receiver)
(1) DB-9, male

Optical Digital Audio Input connector (Receiver)
(1) TOSLINK®, female

Optical Digital Audio Output connector (Sender)
(1) TOSLINK®, female

Analog L/R Stereo Audio Input connector (Sender)
(2) RCA, female

Analog L/R Stereo Audio Output connector (Receiver)
(2) RCA, female

IR Ext/In port (Sender/Receiver)
(1) 3.5mm mini-stereo jack

IR Extender type
EXT-RMT-EXTIRN

IR Out port (Sender/Receiver)
(1) 3.5mm mini-mono jack

USB port (Sender/Receiver)
(1) Mini-B (for Gefen Syner-G interface)

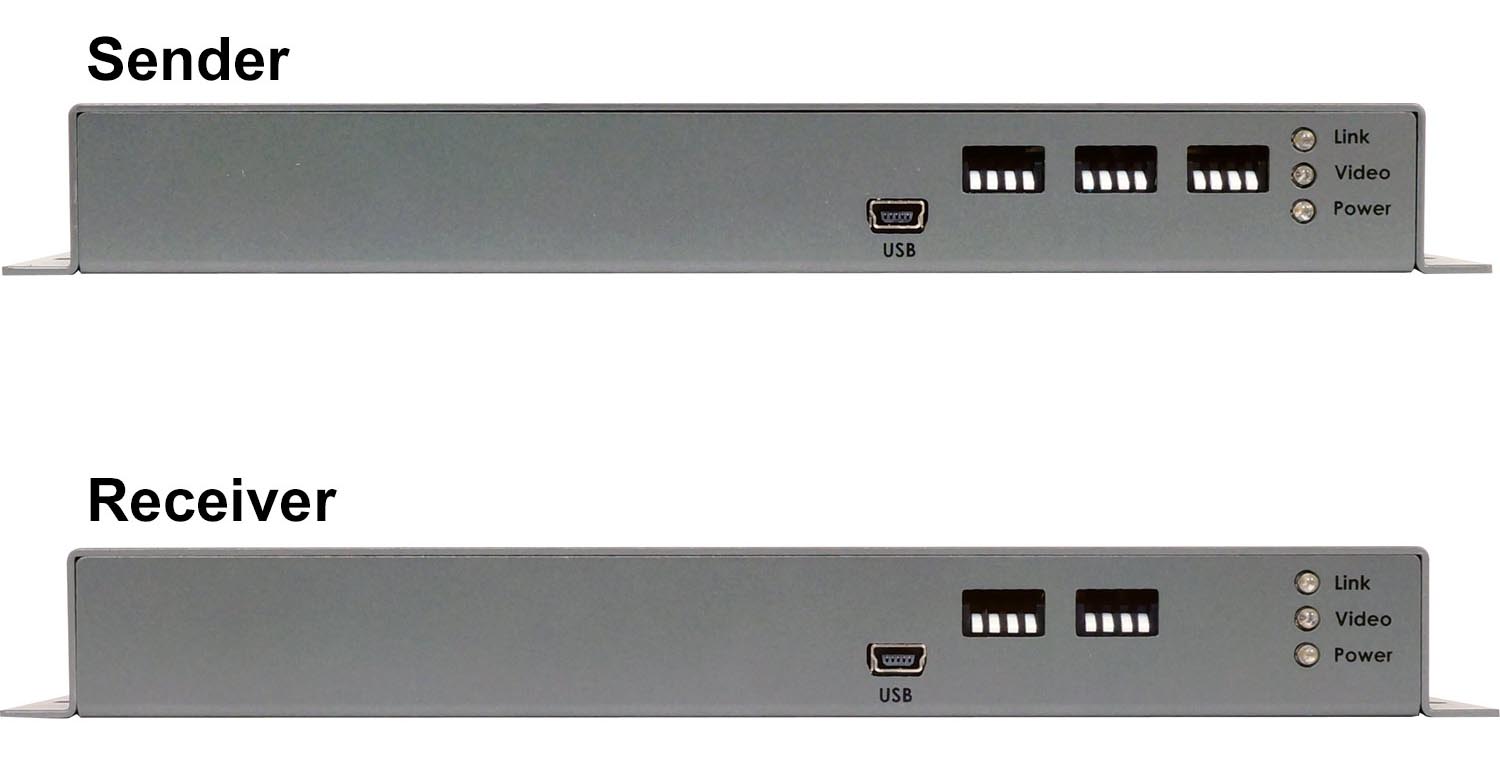

Power/Video/Link Indicator LEDs (Sender/Receiver)
(1) Blue, (1) Amber, (1) Green

Power Supply connector (Sender/Receiver)
(1) 48V DC, locking

Power Consumption (Sender and Receiver combined)
14W

Operating Temperature
+32 to +122 °F (0 to +50 °C)

Operating Humidity
5% to 90% RH, non-condensing

Storage Temperature
-4 to +185 °F (-20 to +85 °C)

Storage Humidity
0% to 95% RH, non-condensing

MTBF
50000 hours

Dimensions (W x H x D, Sender/Receiver, not including connectors)
8.4" x 1" x 4" (214mm x 25mm x 100mm)

Net Weight (Sender/Receiver)
0.75 lbs (0.35 kg) each
