Gefen GTB-HD4K2K-848-BLK
4K Ultra HD 8x8 Matrix for HDMI
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Routes eight 4K Ultra HD sources to eight displays
- Supports resolutions up to 4K (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4), 4K Ultra HD (3860 x 2160 @ 60 Hz 4:2:0 or 30Hz 4:4:4), 1080p Full HD, and 1920x1200 (WUXGA)
- HDMI 2.0 compliant
- HDCP 1.4 compliant
- Supports 12-bit Deep Color (up to 1080p Full HD)
- 3D pass-through
- Lip Sync pass-through
- Push button controls for Routing and Status
- Advanced EDID Management for rapid integration of sources and displays
- Supports LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD Master Audio™
- Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included)
- RS-232 Serial interface for remote control via a computer or automation control system
- IP control via Telnet, UDP, and the built-in web server interface
- IR remote control
- Gefen Syner-G™ software’s Discovery and Show-Me features simplify initial IP configuration
- Field-upgradeable firmware via web server interface
- Surface-mountable
Route 8 4K Ultra HD sources to 8 diplays with HDCP, 3DTV and 7.1 channel LPCM and HBR support

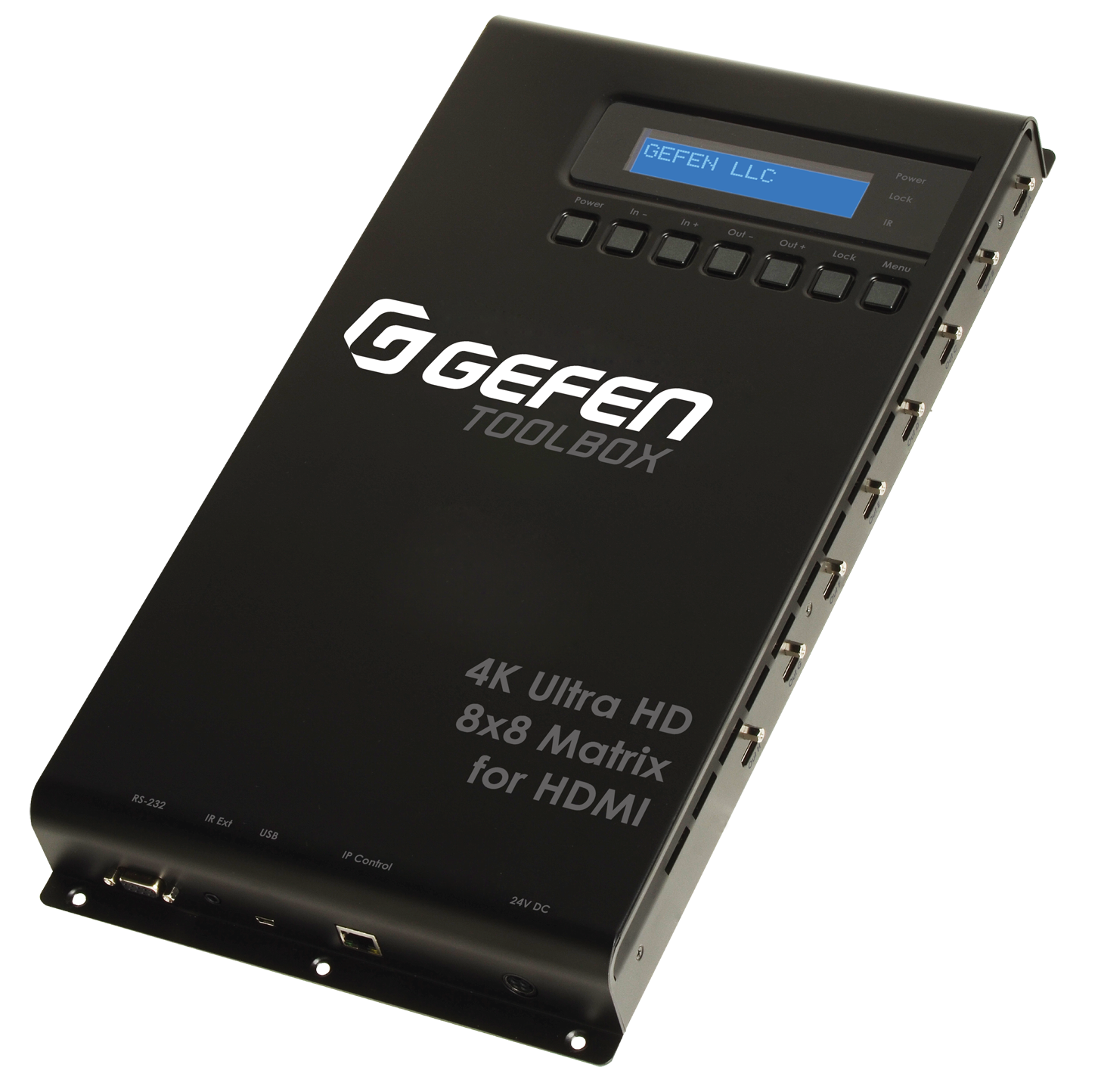

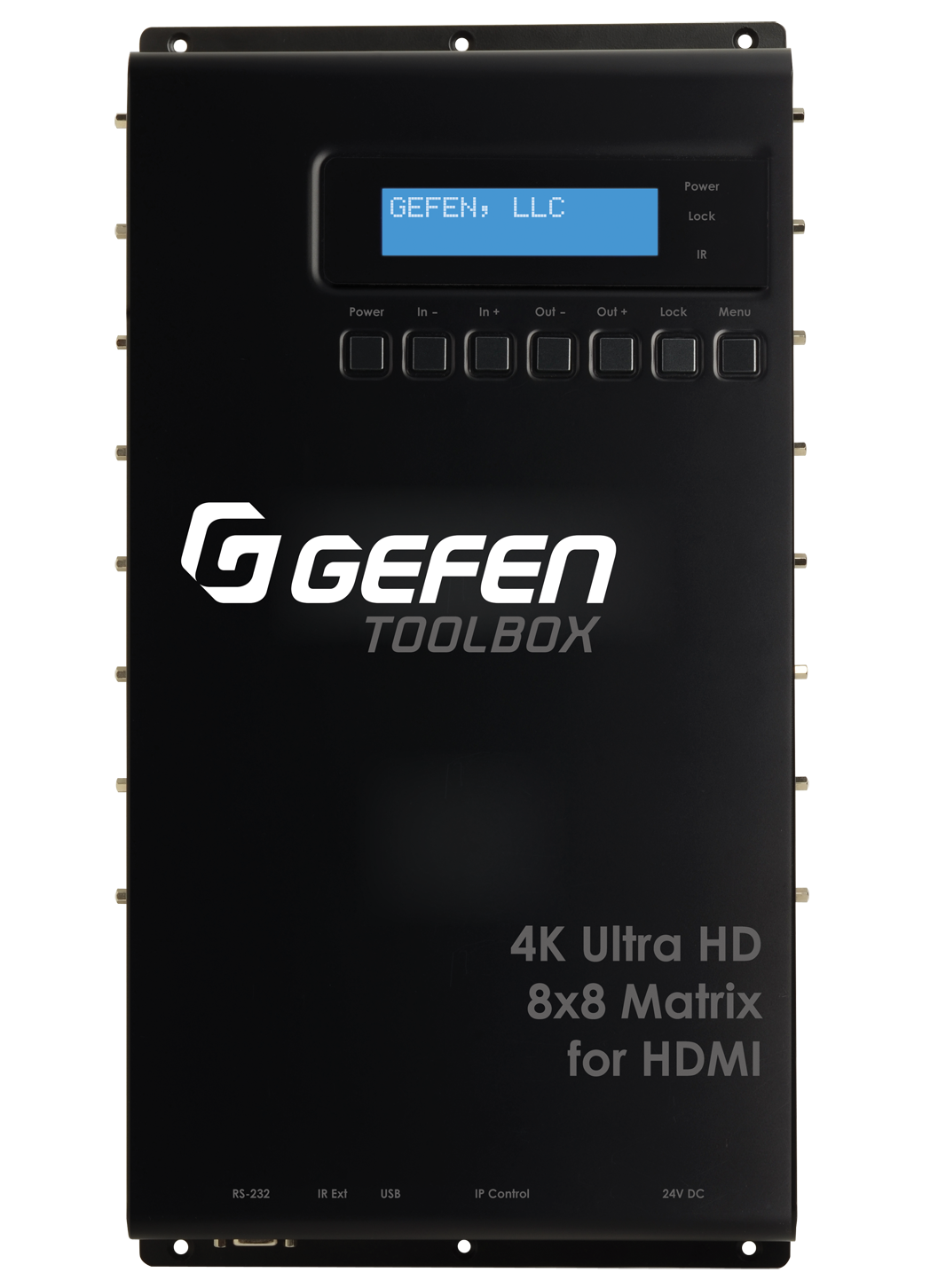

The Gefen GTB-HD4K2K-8482-BLK ToolBox 8x8 Matrix for HDMI is a compact and lightweight alternative to rack-mounted matrixes. This HDCP 1.4 compliant matrix routes eight Ultra HD sources to any eight 4K Ultra HD displays with HDMI inputs. The Gefen Syner-G software's Discovery and Show-Me features simplify initial IP configuration of this matrix. Each source can be routed to any display location, using the front-panel push buttons or the included handheld IR Remote Control. The matrix can also be controlled via RS-232, Telnet, UDP, and the Gefen intuitive and easy-to-use web server interface. An easy-to-read backlit front panel display indicates the current routing status and IP settings.
Video Support
Resolutions supported include 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 4K DCI (4096 x 2160 at 24 and 30 Hz), 1080p Full HD, and 1920x1200 (WUXGA). This HDCP compliant matrix also supports Deep Color and 3D signal.
Audio Support
multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) lossless formats are also passed through.
Specifications
- Maximum Pixel Clock:
300 MHz
HDMI Input Connectors:
(6) Type A 19-pin female, locking
HDMI Output Connectors:
(2) Type A 19-pin female, locking
Digital Audio Outputs:
(2) TOSLINK®
USB Port:
(1) Mini-B
RS-232 serial port:
(1) DB-9, female
Ethernet (IP Control) Port:
(1) RJ-45 jack
FST Selector:
(1) tact-type, recessed push-button
Audio Selector:
(1) tact-type, recessed push-button
EDID Selector:
(1) tact-type, recessed push-button
Routing Selectors:
(2) tact-type push-buttons
Power Indicator:
(1) LED, blue
FST Indicators:
(2) LED, green
Audio Indicators:
(2) LED, green
EDID Indicators:
(3) LED, green
Routing Indicators:
(12) LED, green
IR Sensor:
(1), on front panel
R Extender Port (Receiver):
(1) 3.5mm mini-stereo jack
DC Power Connector:
(1) Locking type
Power Supply:
5V DC
Power Consumption:
20 Watts (max.)
In The Box
| 4K Ultra HD 8x8 Matrix for HDMI (GTB-HD4K2K-848-BLK) | 1 |
| IR Remote (RMT-848IR) | 1 |
| 24V DC Power Supply (EXT-PS24U375A-6) | 1 |
| AC Power Cord (CAB-POWERCORD-XX) | 1 |
| Quick-Start Guide (QSG-GTB-HD4K2K-848-BLK) | 1 |
