Beacon BE-411
HDMI/DVI USB Multi-View KVM Switch with Roaming Mouse
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- 4-Port HDMI Multi-View and USB Seamless KVM Switch with Roaming Mouse support.
- Compliant with HDMI 1.3a, HDCP 1.2 with HDTV 1080p and PC resolutions 1920x1200.
- Support Keyboard, Mouse, Touch Screen.
- Support Multi-View in 2x2, 1+3, and Full Screen display modes.
- In 2x2 Mode, the entire screen is split into 4 sub-screen of equal size each displaying one of the 4 different HDMI sources.
- In 1+3 Mode, any one of 4 HDMI sources can be selected and displayed in large left-window and accompanied by the other 3 HDMI sources in small right-windows of the screen.
- In Full Screen Mode, any one of the 4 HDMI sources is displayed in full screen size.
- Support HDMI Audio De-embed output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
- Seamless KVM switching between PCs by one Roaming Mouse or Hotkey.
- Pure hardware design, plug-and-play, no any additional software installation is required.
- Interactive LED light for screen identification.
- Adjustable mouse speed.
- Control provided with front panel buttons RS-232, Hotkey, Free-Flow Mouse.
- Provides RS-232 port with Commands format for third party external control.
- Firmware upgradable.

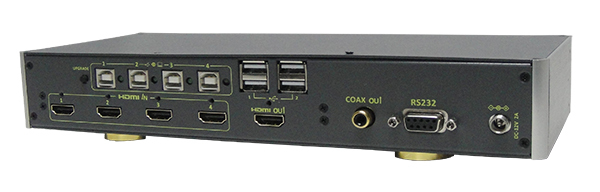

The BE-411 is a 4-port HDMI/DVI USB KVM switcher that provides for interaction with 4 PCs using a single Multiview screen and a Roaming mouse/keyboard. With excellent expandability, one Master BE-411 + four Slave BE-411 let the user interact with a maximum of 16 PCs.

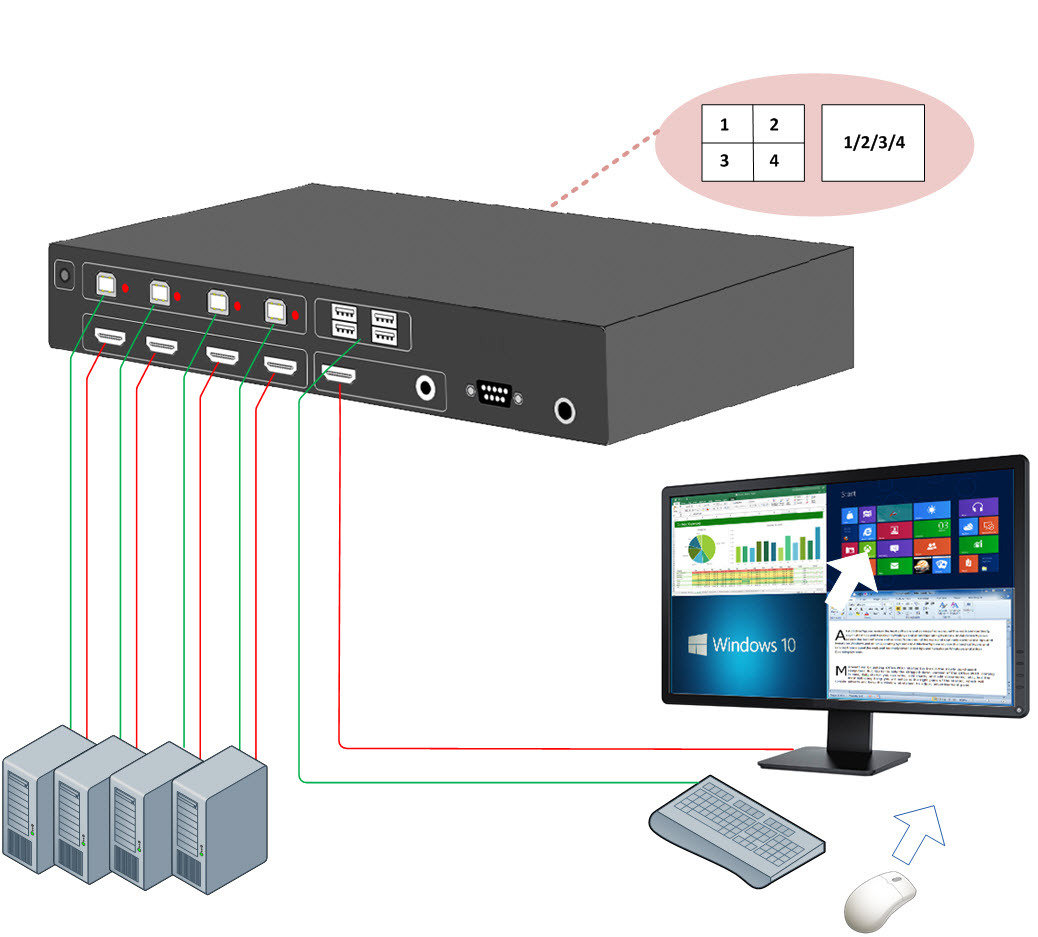

The Multi-View feature provides simultaneously display HDMI/DVI from 4 PCs in real-time on a single monitor with full screen of Seamless-Switch, or 2x2/1+3 POP (Picture out Picture) mode.
The Roaming-Mouse feature provides the user simply moves the mouse cursor across screen borders in any direction, either horizontally or vertically, instantly selecting the PC they need to control – providing super easy-to-use KVM switching that saves time and desk space.
The BE-411 can be controlled by Front Panel Buttons, RS-232 commands, Keyboard Hotkeys, or Roaming Mouse.

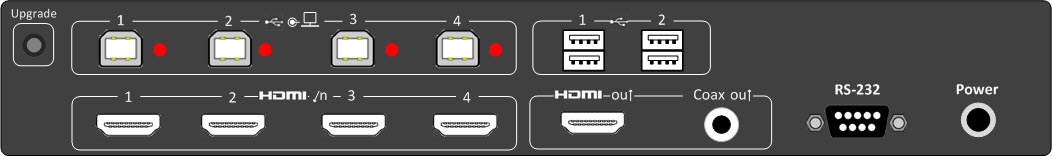

| SPECIFICATION |
| Model No. | BE-411 | ||
| Connectors | HDMI In | 4 (Female) | |
| HDMI Out | 1 (Female) | ||
| USB Upstream | 4 (to PC) | ||
| USB Downstream | 4 (keyboard, mouse, touch, expansion) | ||
| LED Light Indicator | 4 | ||
| RS-232 | DB9 x 1 and 3-pin Phoenix terminal block x 1 | ||
| Video Bandwidth | 2.25Gbps | ||
| Audio Out | PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 | ||
| Input Resolution | 480i60Hz,480p60Hz,576i50Hz,576p50Hz, 720p50/60Hz,1080i50/60Hz,1080p24/30/50/60Hz,800x600@60,1024x768@60, 1280x720@60,1920x1080@60; | ||
| Output Resolution | 1080p,1080i,720p,1024x768,1360x768 | ||
| ESD Protection | Human Body model: | ±8 | |
| ±4 | |||
| Power Supply | 12 V/2.5A DC | ||
| Power Consumption | 10 W | ||
| | Operating Temp. | 0~40°C | |
| Storage Temp. | -20~60°C | ||
| Humidity | 20~90% Non-condensing | ||
| Physical Properties | Housing | Metal (Black) | |
| Weight | 750 g | ||
| Dimensions | 118 (L) x 250 (W) x 32 (H) mm | ||
