Beacon HV-211

HDMI 2 in 1 Multi-viewer with PIP

egenskaber
beskrivelse
yderligere information
PDF

2x1 Dual Multi-viewer and seamless switch with 4 PIP (Picture in Picture) display mode.
Compliant with HDMI 1.3a, HDCP 1.2.
Supports scaler up, scaler down functions and digital audio formats LPCM/AC3/DTS.

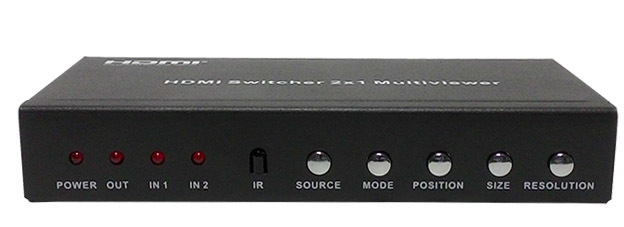

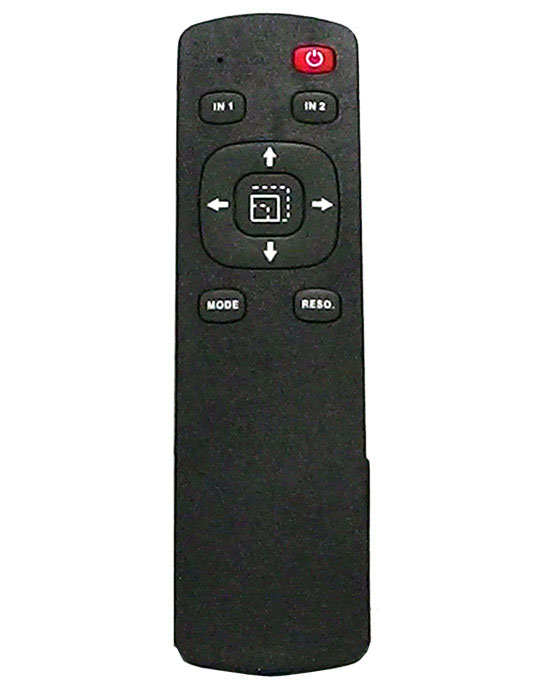

Control provided with front panel buttons, IR remote, RS-232.
Full Screen, and Picture in Picture display modes.
Full Screen Mode: (1) of the (2) video sources is displayed in full screen size with maximum resolution.
Picture in Picture (PIP) Mode :The full screen display of (1) of the (2) video sources is accompanied by (1) small images of the other video sources on the right hand margin of the screen allowing simultaneous monitoring.
Supports HDTV resolutions up to 1080p and computer resolutions to 1920x1200.
Plug-and-Play; no software or driver required.

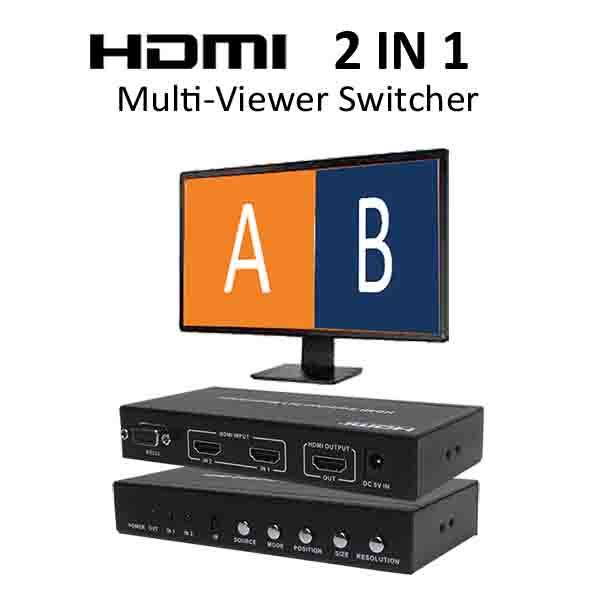

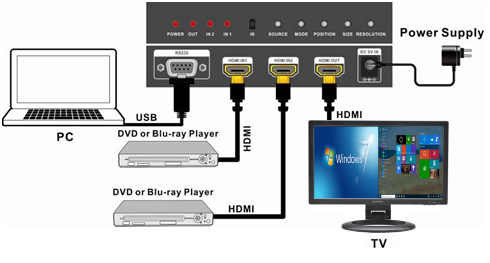

The HV-211 is a HDMI Dual Screen Multi-Viewer Seamless Switcher allows you to simultaneously display real-time HDMI video from 2 different sources on a single monitor in full screen with 4 PIP (Picture in Picture) display mode. The product can be controlled through the front panel button, IR control, or Graphic User Interface via RS-232.

SPECIFICATION

Model No.		HV-211

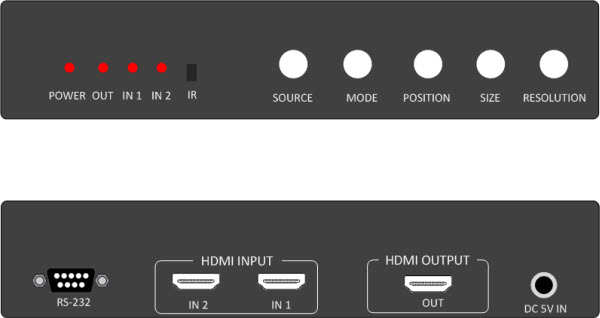

Connectors	HDMI In	2 (Female)
	HDMI Out	1 (Female)
	RCS (S/PDIF Coax)	1
	RS-232	1
Video Bandwidth		6.75 Gbps
Input Resolution		480i60Hz,480p60Hz,576i50Hz,576p50Hz, 720p50/60Hz,1080i50/60Hz,1080p24/30/50/60Hz, 800x600@60,1024x768@60,1280x720@60,1920x1080@60;
Output Resolution		1080p,1080i,720p,1024x768,1360x768
ESD Protection		Human Body model:	±8 kV (air-gap discharge)
			±4 kV (contact discharge)
Power Supply		5 V/1A DC
Power Consumption		10 W
Environment	Operating Temp.	0~40°C
	Storage Temp.	-20~60°C
	Humidity	20~90% Non-condensing
Physical Properties	Housing	Metal (Black)
	Weight	300 g
	Dimensions	70 (L) x 140 (W) x 25 (H) mm

Beacon HV-211 Datasheet (452.8 kB)
