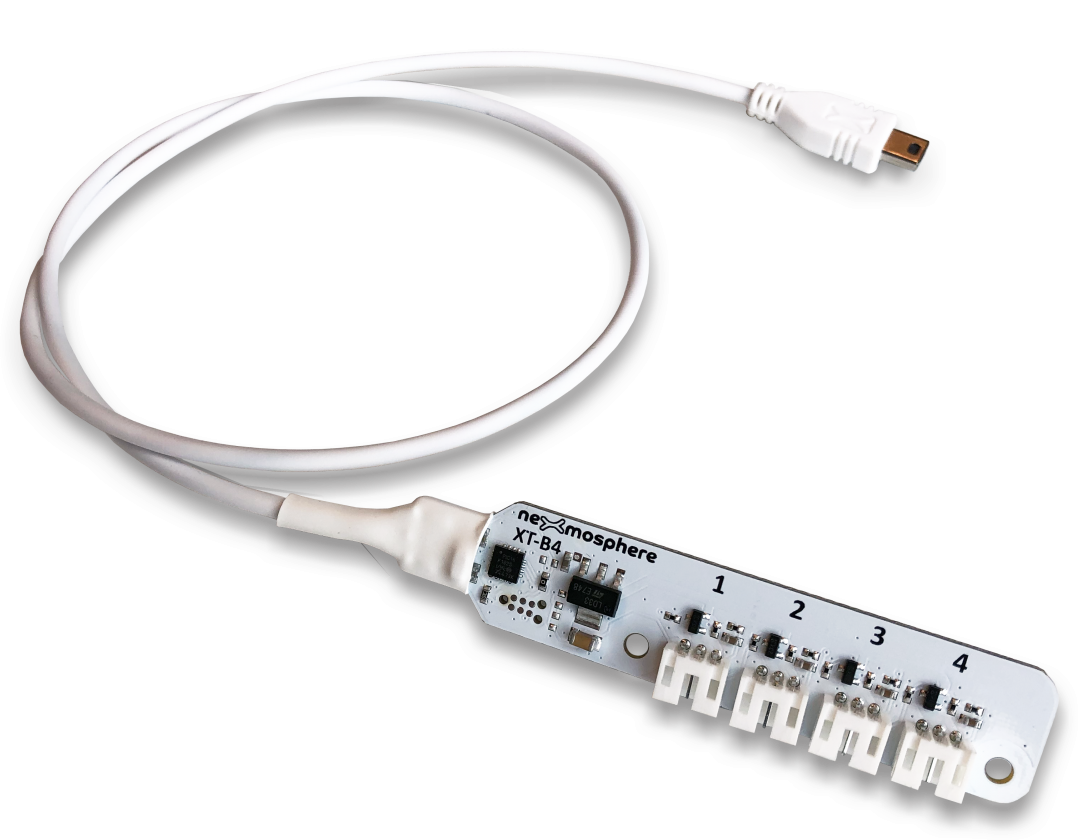

Nexmosphere XT-B4

The Nexmosphere XT-B4 is a 4-channel push button interface with LED control. Push buttons are a proven and robust way for users to provide input and navigate through your digital content. Additionally, you can opt to simultaneously trigger other connected Elements using the user’s push button input. The interface controls the LED ring in the button, so it can display different lighting output behavior providing intuitive feedback on push input as well as the current status in the interactive journey.


Push button interface

• Compatible with any Nexmosphere push button
• Connect compatible 3rd party buttons via the JST-PHR-3 connector

X-talk

The XT-B4 can easily be connected to any of the Nexmosphere Xperience controllers using the X-talk interface. All settings of the X-Touch are programmable on the controller, enabling a seamless integration in your application.


Benefits

• Connect up to 4 push buttons onto 1 X-talk channel, leaving you with the opportunity to connect other Elements onto your controller as well.
• Large amounts of button connections possible even on our smallest controllers (up to 9 on the smallest model, XN-135).
• Mechanically strong click-in connections and hassle-free installation as opposed to a GPIO wire harness.
• 4 Programmable options for LED output; on, off, slow, and fast blink.
• Multiple data gathering functionalities on Xperience controller offer unique insight in how your application is being used

SPECIFICATIONS

Thermal specifications


Operating temperature:
+10’C...+40’C
+50’F ... +104’F

Storage temperature:
-20’C...+50’C
-4’F ... +122’F



Electrical specifications


Operating voltage:
5V DC (via X-talk interface)

Power consumption:
50mA

LED output voltage:
3.3V



Miscellaneous


Mounting holes for easy fixation



Mechanical dimensions


LxWxH:
82 x 17x 5,6 mm

Screw fixation:
44,75 mm

ORDERING INFORMATION

Available Modules
XT-B4N6	X-Touch, 4 push button/LED interface, 180cm cable
