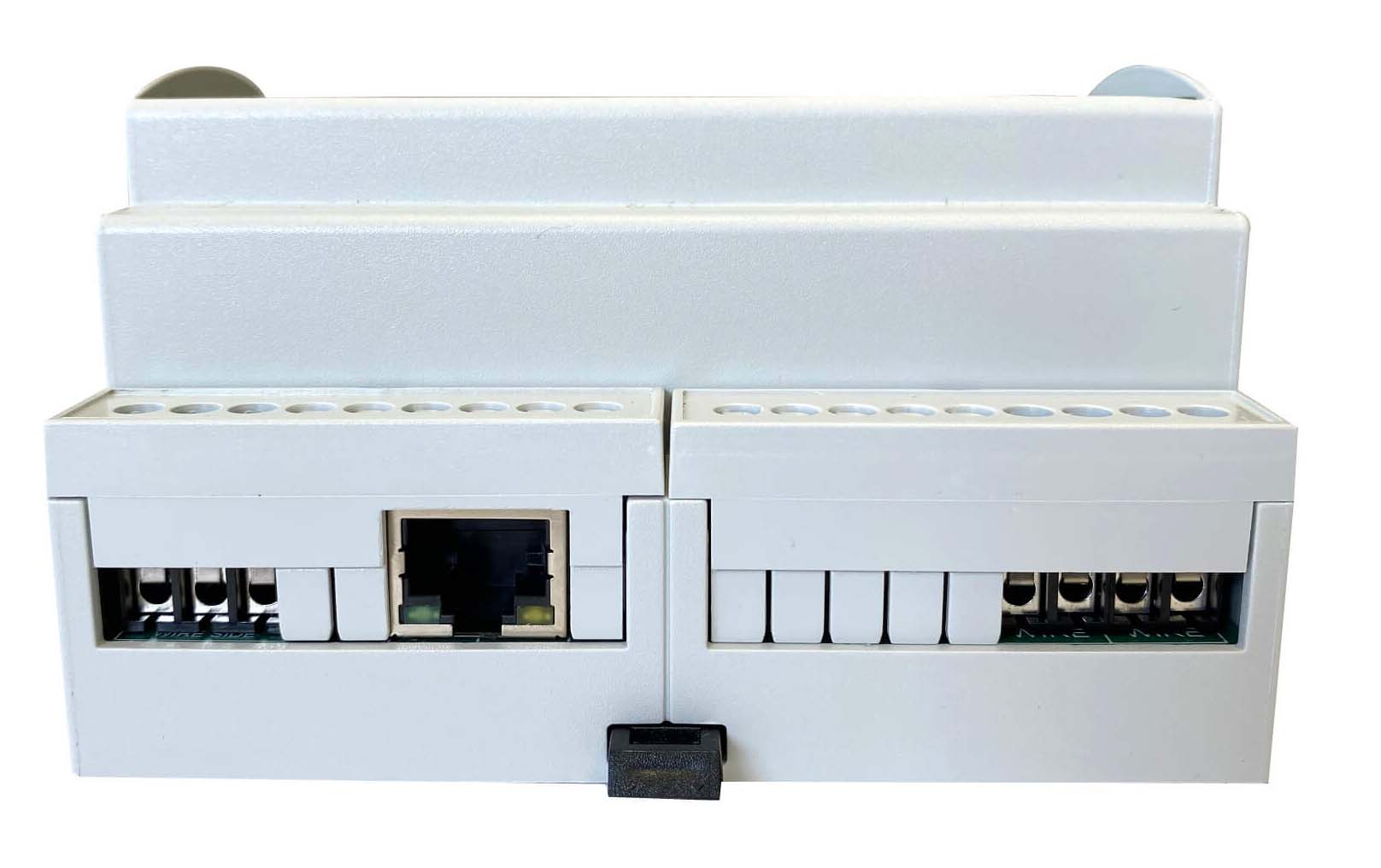

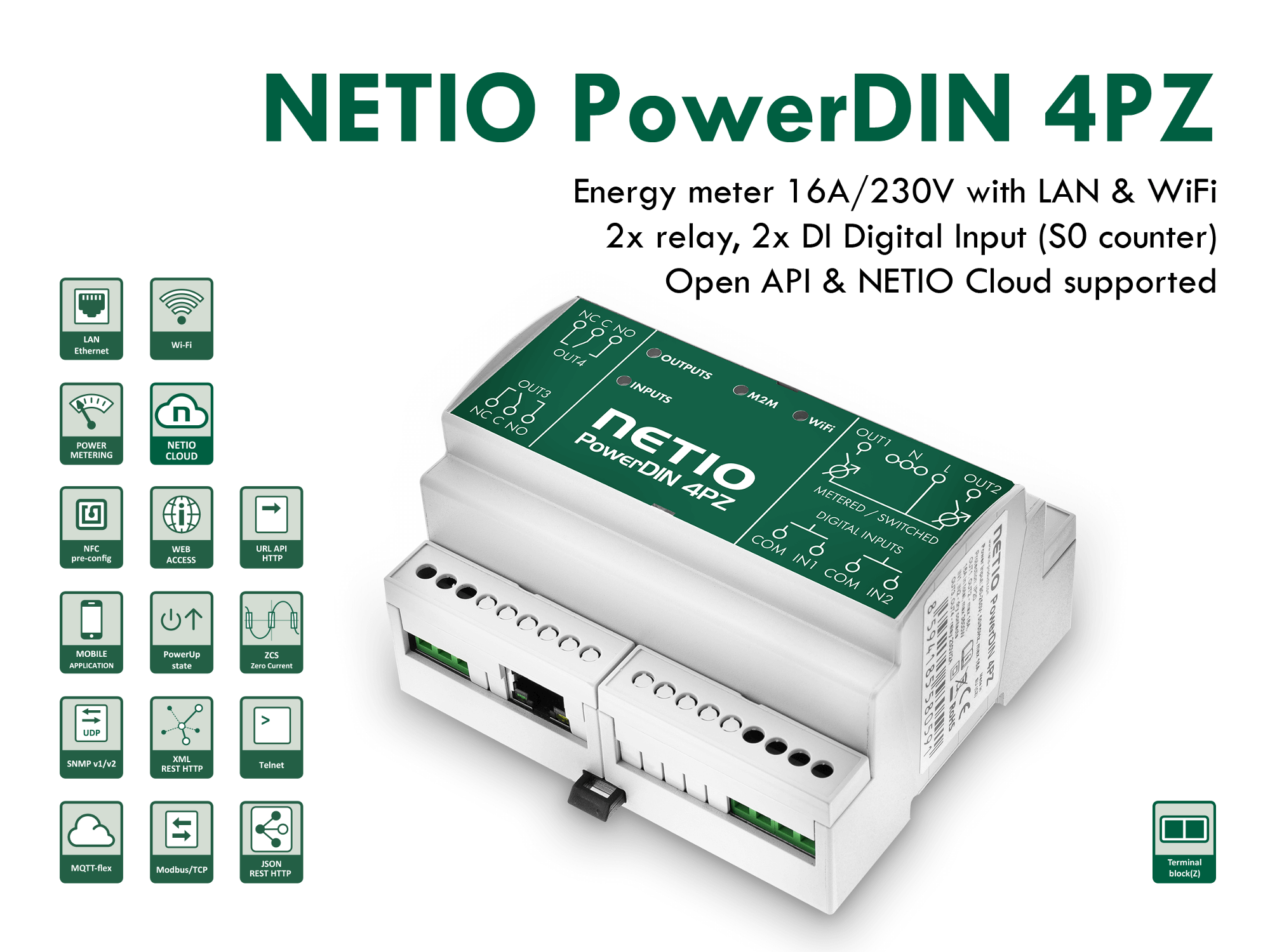

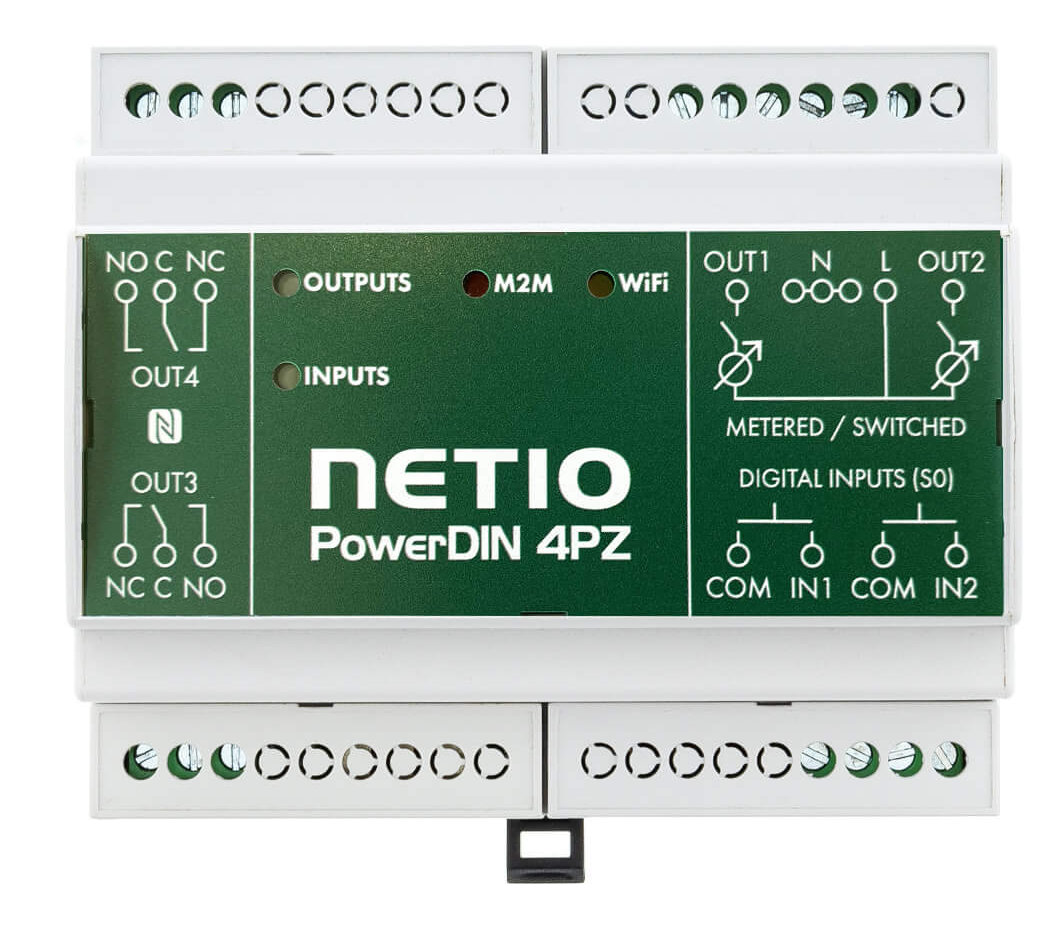

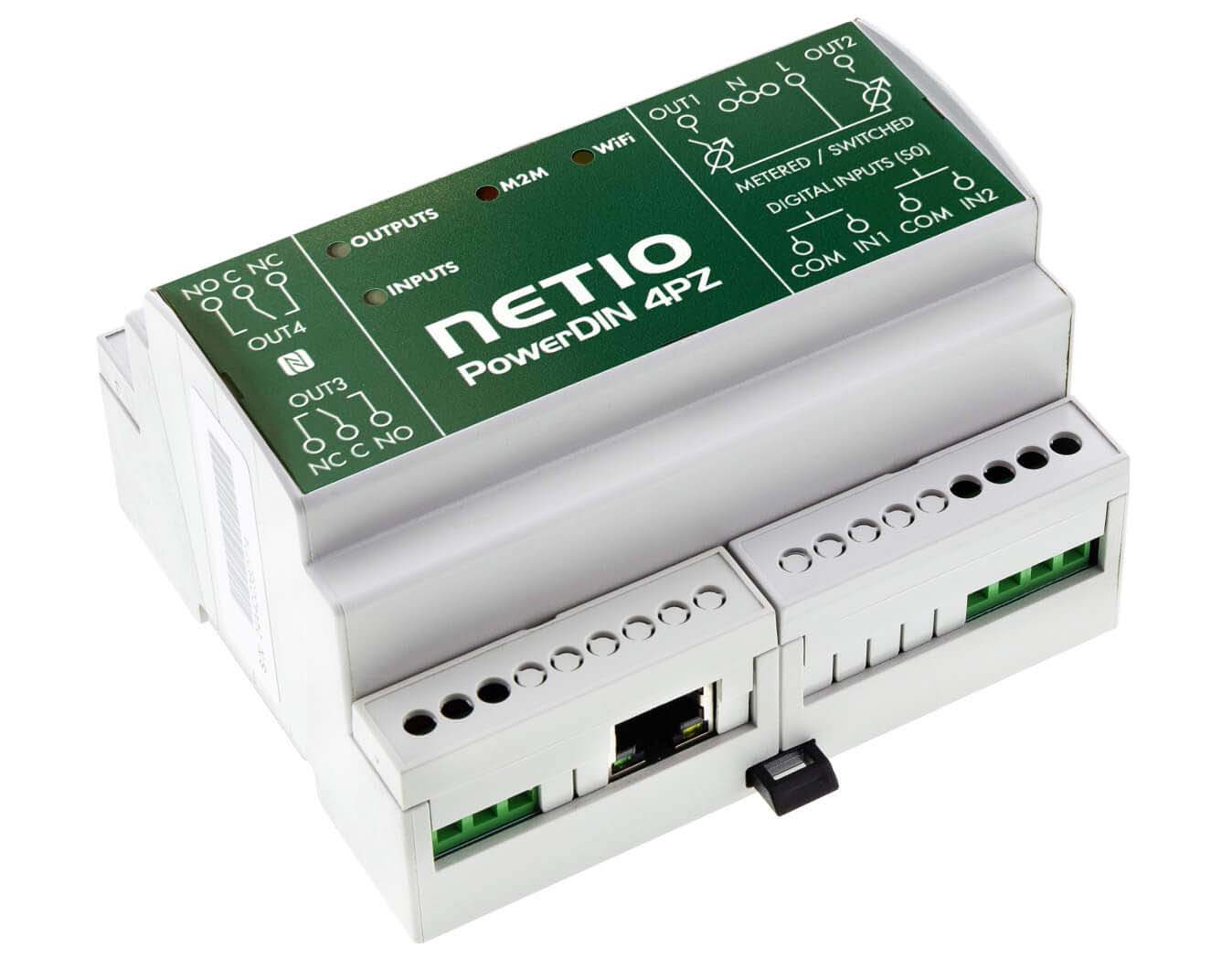

NETIO PowerDIN 4PZ
dual electricity meter for DIN rail mounting
- LAN (Ethernet) or WiFi
- I/O: 2x digital inputs (S0 counters) + 2x DO (relay)
- 2x metered ouputs 230V/16A + ZCS relays
- Open API (8 protocols, M2M API)
- Supports NETIO Cloud
- Can be controlled with a mobile app
PowerDIN 4PZ is a dual 230V/16A electricity meter with LAN/WiFi and I/O, designed to fit on a DIN rail. Enables control over the Web, NETIO Cloud, Open API. Each of the 4 outputs can be switched on or off independently using the Web interface, or with Open API and NETIO Cloud. States of two dry contact digital inputs (including S0 pulse counts) can be also read remotely. Integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy thanks to the Open API.
NETIO PowerDIN 4PZ is a 2-channel 230V/16A electricity meter with relays at outputs and LAN (Ethernet) or WiFi connectivity.
- The two metered 230VAC outputs can be switched off thanks to a built-in relay.
- Two other outputs feature NO/NC relay contacts.
- Two digital inputs can be used to connect push-buttons or S0 meters.
Using the product’s web interface, the device can be configured, the measured values can be read and each of the 4 outputs can be switched on or off.
Open API enables integration with third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..).
- LAN or WiFi connection, NFC configuration
- WEB interface
- Channels 1, 2: metering + relay
- Channels 3, 4: relay contacts
- OPEN API: MQTT-flex, Modbus/TCP, Telnet, JSON, XML, SNMP, ..
- ZCS – Zero-current switching
- Mobile app: NETIO Mobile2 (Android)
- Service: NETIO Cloud
TYPICAL APPLICATIONS
- The PowerDIN 4PZ LAN/WiFi electricity meter is typically used for electricity metering and distribution in a DIN electrical cabinet.
- Remote energy consumption monitoring in one or two circuit branches.
- Connecting the pulse output of a 3-phase electricity meter to In1 or In2 in order to measure electricity consumption above 16A.
- Each output can be switched on/off or power-cycled (e.g. to restart all appliances connected to the same circuit branch) from the web interface or the NETIO Cloud service.
- Controlling the charging of e-bikes, boats and other appliances up to 3.6 kW (230V/16A).
- Controlling the outputs using Open API (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...)
- Integration with various third-party programs and applications.
- Controlling the device from the NETIO Mobile 2 app (Android), as long as the app is connected to the same network.
- The NETIO Cloud service, provided for a fee, enables central control of outputs of multiple devices in various locations.
TECHNICAL SPECIFICATIONS
- LAN (RJ45): Yes
- WiFi: Yes
- Web: Built-in web server
- Online demo: Yes (link)
- FW upgrade: Yes – web (Download: FW Archive)
- Mobile app: NETIO Mobile2 (Android)
- Installation without a Cloud connection: Yes
- Control button: Yes (under the panel)
- Service: NETIO Cloud (for a fee, TLS security)
- Open API (M2M protocols)
Modbus/TCP
MQTT-flex
Telnet
http URL API
http JSON
http XML
SNMP v1 - Lua support: No
- Scheduler function: Yes (4Q 2020)
- Sending e-mails: No
- Power input: Terminal block (2.5mm2 / 22-14 AWG) 100-240VAC / max 16A
- Power output: Terminal block (2.5mm2 / 22-14 AWG)
- Digital Outputs: 4 in total
- Metered outputs: 2 channels
- DO Metered Power outputs + switching element: 2x Relay + ZCS (Out 1 & Out 2: SPST-NO) – Max 16A
- DO Relay outputs: 2x Relay (Out 3 & Out 4: NO/NC) – Max 2A
- Digital Inputs: 2 + S0 counter (4 bytes)
- Internal consumption: Max 2 W
- SPD – surge protection: Yes, type 3
- Switching element: Relay (Out 1, 2: SPST-NO)
- ZCS (Zero Current Switching): Yes (outputs 1, 2)
- IOC (output state independent from FW updates): Yes
- PowerUp state of outputs: On / Off / LAST state
- Power-Up sequence (switching outputs on with a delay): Yes

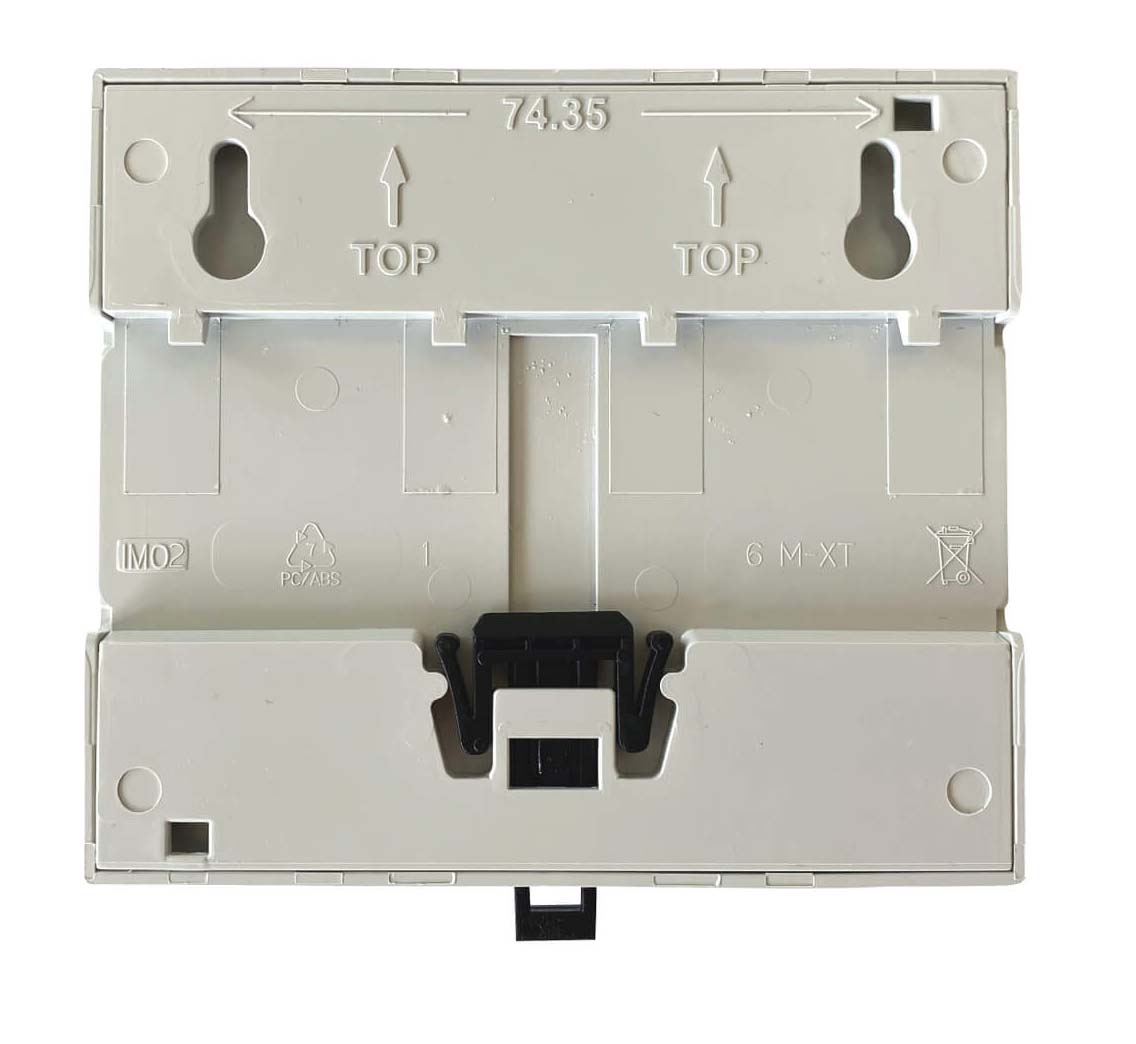

- Mechanical: 106 x 91 x 62 mm - 6M (SU) DIN
- Protection: IP20
- Sound output: No
- Temperature range: -20°C to +55°C
