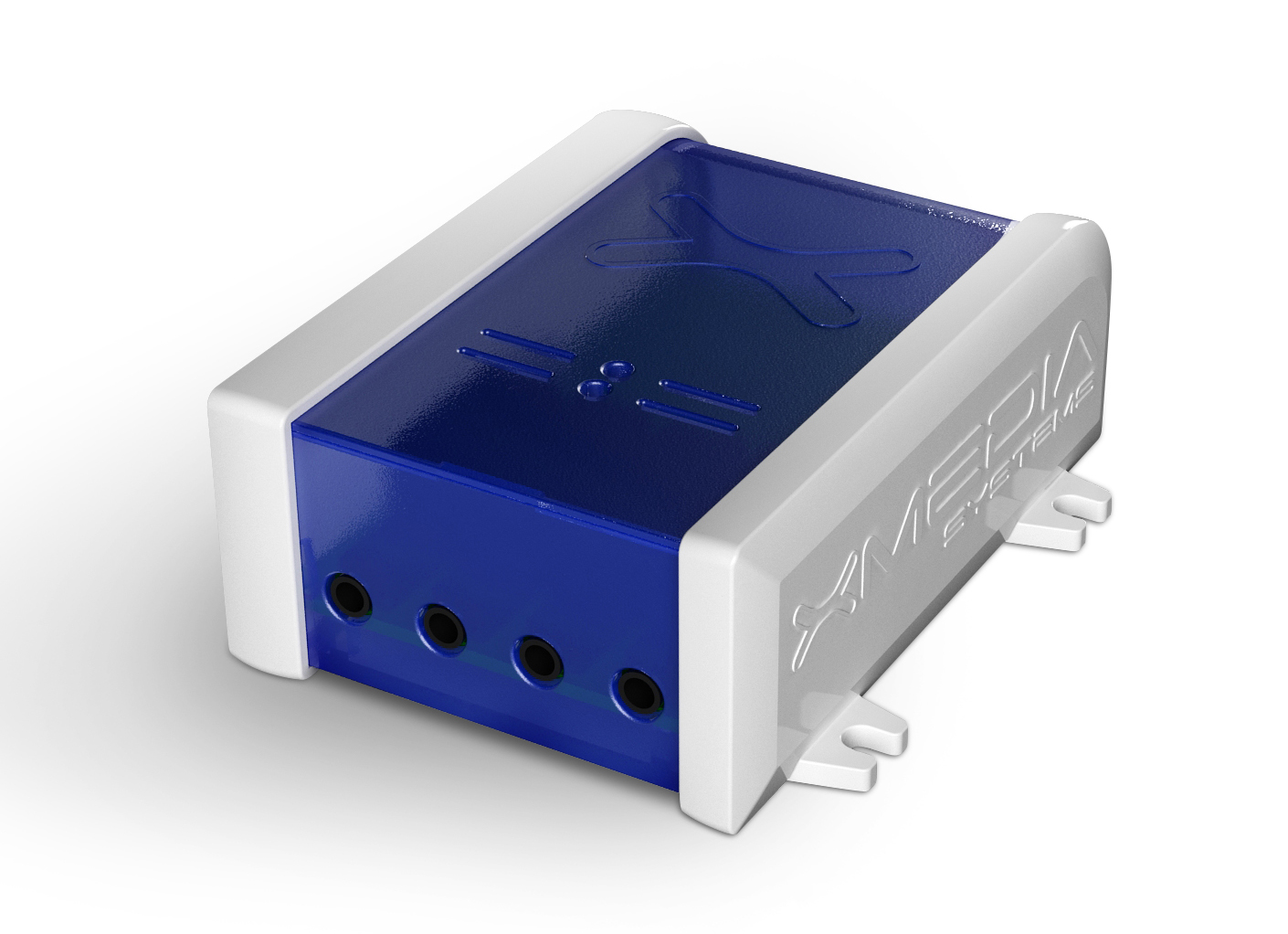

Nexmosphere EM-4
Expansion module, 4 channel audio switch
- 4x Audio switching channel
The EM modules define the exact specification of the complete XM Xperience controller. Combine any of the modules into one system to make it fit the exact application needs. Different functionalities such as LED control, audio switching or large numbers of Element connections through X-talk channels can all be combined on a single XM controller. The EM modules are pre-assembled onto the XM controllers at our production facilities.
Audio switching
Audio switching redirects the incoming audio stream from an external media player to one of the connected outputs. The switching circuit guarantees a fast transition from one output channel to another. Multiple outputs can be selected simultaneously to demonstrate multi-speaker solutions.
EM expansions
The EM modules define the exact specification of the complete XM Xperience controller. Combine any of the modules into one system to make it fit the exact application needs. Different functionalities such as LED control, audio switching or large numbers of Element connections through X-talk channels can all be combined on a single XM contr oller. The EM modules are pre-assembled onto the XM controllers at our production facilities.
Benefits
Audio switching
Audio switching redirects the incoming audio stream from an external media player to one of the connected outputs. The switching circuit guarantees a fast transition from one output channel to another. Multiple outputs can be selected simultaneously to demonstrate multi-speaker solutions.
EM expansions
The EM modules define the exact specification of the complete XM Xperience controller. Combine any of the modules into one system to make it fit the exact application needs. Different functionalities such as LED control, audio switching or large numbers of Element connections through X-talk channels can all be combined on a single XM contr oller. The EM modules are pre-assembled onto the XM controllers at our production facilities.
Benefits
- Auto start-up and configuration for highly reliable standalone applications (24/7 operability)
- Combine any of the EM and XM modules to make an exact fit for your application
Thermal specifications
- Operating temperature:
+10’C...+40’C/ +50’F ... +104’F
Storage temperature:
-20’C...+50’C/ -4’F ... +122’F
Cooling:
Passive cooling (no moving parts)
Electrical specifications
- Operating voltage:
5VDC
powered internally via XM/EM
Power consumption:
0.2A
Mechanical dimensions
- L x W x H:
94 x 72 x 36 mm / 94 x 134 x 36 mm
Screw fixation:
54 x 127,4 mm
Miscellaneous
- Robust housing with screw brackets for secure fixing
- Built-in magnets for easy mounting on metal surfaces
- Both horizontal and vertical mounting allowed
- 1-year warranty (optional 3-year extended warranty available)
Packaging
- Netto weight:
90g
Items per carton
1 or 10 pcs
(pre-assembled on XM controller)
