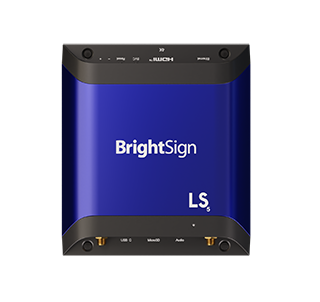

BrightSign LS445
4K Model Media Player
- Plays flawless HD and 4K video, HTML5, graphics & digital audio
- Displays simple HTML5 widgets and animations
- Packed with unique signage features to enable captivating experiences
- Flexible for connected or offline environments
- Supports single touchscreen experiences
- Ultra-thin, effcient design easily fits into tight spaces & streamlines serviceability
- Runs BrightSign OS to boost reliability, security & uptimes
BrightSign LS5 is unrivaled at its price point, offering pristine HD, 4K, and HTML5 performance, along with a range of purpose-built signage features
BrightSign LS5 offer both an HD and 4K model that effortlessly display looping video, HTML, graphics and support digital audio and USB-C interactive peripherals. With a locking power cord, ethernet, and optional dual antenna Wi-Fi module, signage is always connected to a free Control Cloud subscription and a preferred CMS.
The LS5 is small and thin so it fits just about anywhere and runs BrightSign OS to maximize security, reliability, and longevity. The LS5 is a valuable, cost-effective option for a broad range of simple signage experiences.
SPECIFICATIONS
MODEL | LS425 HD Basic I/O Package | LS445 4K Basic I/O Package |
---|---|---|
VIDEO & HTML5 ENGINES | ||
1080p60 video | X | X |
4K60p video | X | |
HD image and motion graphic support | X | X |
HTML5 performance level | Mainstream | |
MEDIA FORMATS | ||
Video codecs for 4K content: H.265/H.264 | X | |
Video Containers for 4K H.265 content: .ts, .mov, .mp4, .mkv | X | |
Video Codecs for Full HD: H.265, H.264(MPEG-4, Part 10), MPEG-2 |
X | X |
Video Containers for Full HD content: .ts, .mpg, .vob, .mov, .mp4, .m2ts |
X | X |
Images: BMP, JPEG, PNG | X | X |
Audio: MP2, MP3, AAC and WAV (AC3 is passed through) | X | X |
HTML5: .html, Chromium-based, CSS, JavaScript, webGL | X | X |
HARDWARE INTERFACES | ||

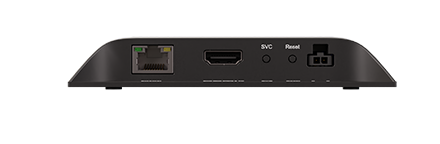

HDMI Output 2.0a | 1 | 1 |
USB Type C port: supports GPIO, Serial, IR with adapters and high-speed host mode |
1 | 1 |
3.5mm Audio Out (analog & SPDIF digital) | X | X |
10/100 Base Ethernet | X | X |
Primary Storage: External micro SD slot protected by a tool-less cover |
X | X |
Optional Wi-Fi/Bluetooth: E Key M.2 interface only for WD-105 module | X | X |
1 Status LED | X | X |
Reset and Service Buttons | X | X |
Real Time Clock 14-day life | X | X |
Locking Power Connector | X | X |
ACCESSORIES | ||
BP200 & BP900 USB Button Pads | X | X |
WD-105 Dual Antenna Wireless/Bluetooth Module | X | X |
MicroSD Class 10 Cards (various capacities) | X | X |
CBL-USBC to USBA and 3.5mm Serial | X | X |
GP800-C: USB C to GPIO 12-pin Cable Kit | X | X |
MISCELLANEOUS | ||
Perfected Industrial Design - Simplified Wi-Fi installation | X | |
Dimensions (W x D x H) | 126.6 x 141.84 x 19.41 mm; 4.98 x 5.58 x 0.76 in | |
Weight | Coming Soon | |
Power | 12V / 1.5A | |
Multi-Country Power & Regulatory Approvals | X | X |
Built-in Wall Mounting Brackets | X | X |
1 year warranty, parts and labor* | X | X |
*2 year warranty, parts and labor, for units shipped from an EU or UK distribution center and to an EU or UK address.
