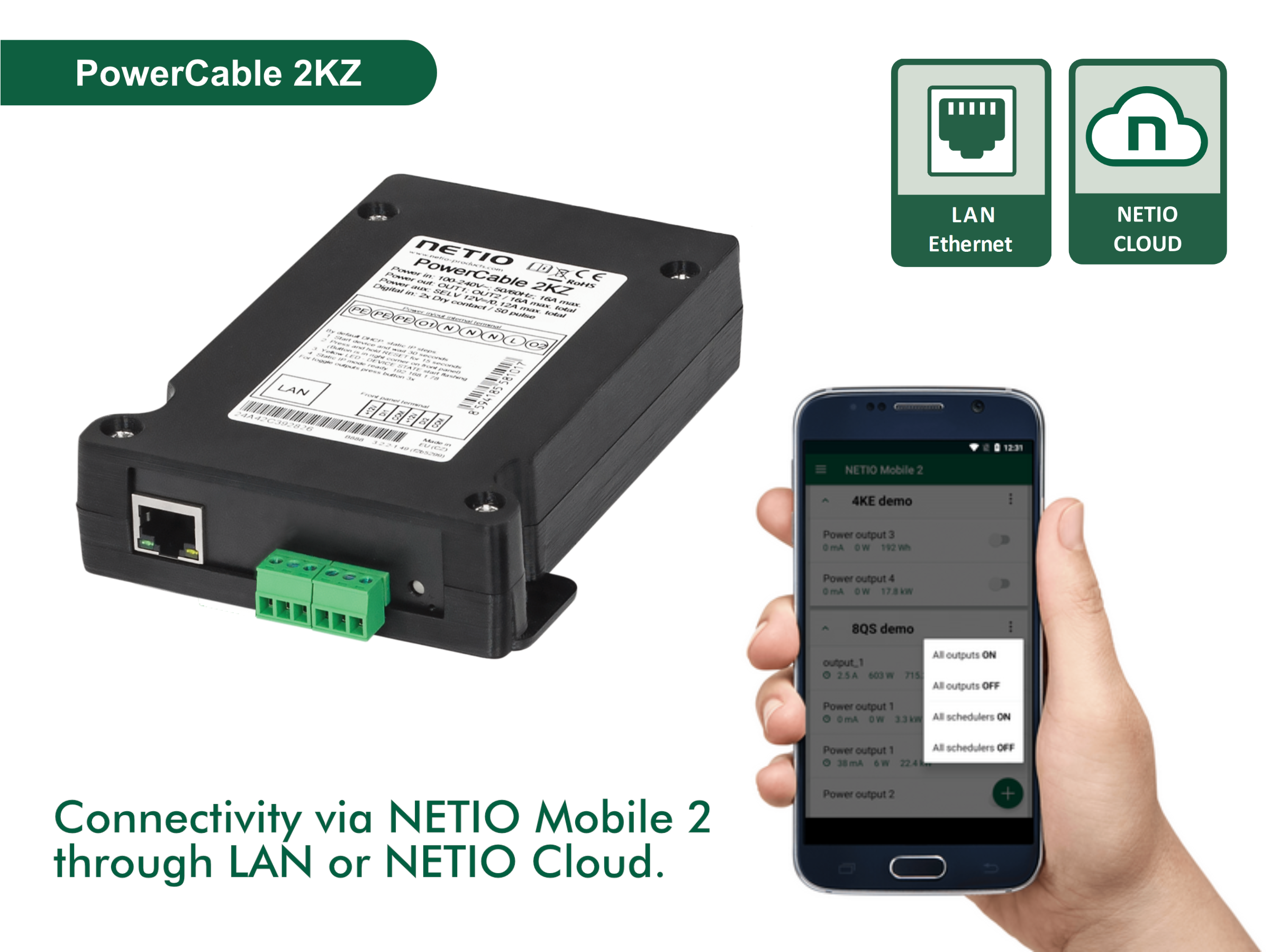

NETIO PowerCable 2KZ

NETIO PowerCable 2KZ is a flat PDU (Power Distribution Unit) with LAN & WiFi connectivity. PowerCable 2KZ can switch & meter 2 power outputs, 2x DI (Digital Input) can read state of external detectors (door contact, relay outputs).

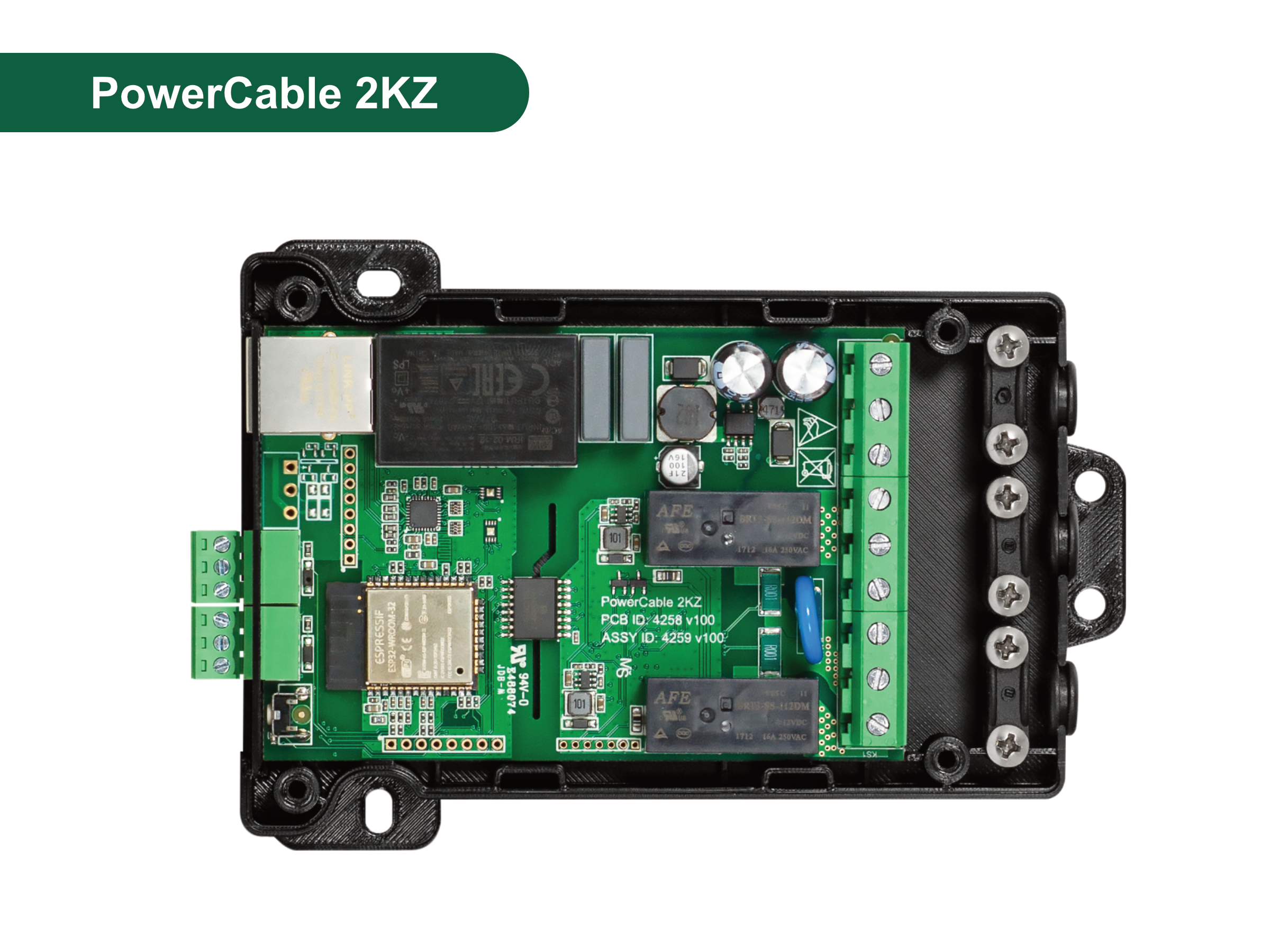

NETIO PowerCable 2KZ we call "flat PDU" because it can be installed behind TV, under double ceiling or to similar limited space. Flat PDU is delivered without power cables, user have to install 2 or 3 power cables to the terminal block inside plastic housing with using screw driver.

Small PDU is connected to LAN via RJ45 (Ethernet) or WiFi. Both power outputs are metered and can be individually switched On/Off (restarted).

Both power outputs individually measures power consumption (A, kWh, TPF, W, V, Hz) and switching On/Off (ZCS). Each output can be switched manually over the web, the NETIO Cloud service, or with a Mobile App (Locally or via NETIO Cloud).

DI (Digital Inputs) with 4-byte pulse counters can be used to connect momentary switches (dry contact) or S0 outputs of electricity, water or similar meters.

PDU supports local Ping & Power WatchDog and Scheduler functions.
Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..).

With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL/TLS security and servers in Europe.

AV drivers make it easy to connect NETIO sockets to professional Audio/Video control systems such as Neets, Crestron, Control4 etc.


Typical applications

• The PowerCable 2KZ LAN/WiFi PDU is typically used for electricity metering and distribution.
• Remote energy consumption monitoring in one or two circuit branches.
• Connecting the pulse output of a 3-phase electricity meter to In1 or In2 in order to measure electricity consumption above 16A.
• Each output can be switched on/off or power-cycled (e.g. to restart all appliances connected to the same circuit branch) from the web interface or the NETIO Cloud service.
• Controlling the charging of e-bikes, boats and other appliances up to 3.6 kW (230V/16A).
• Controlling the outputs using Open API (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...)
• Integration with various third-party programs and applications.
• Controlling the device from the NETIO Mobile 2 app as long as the app is connected to the same network.
• The NETIO Cloud service, provided for a fee, enables central control of outputs of multiple devices in various locations.

FEATURES

• 2x Power Output (230V/16A) with relays (ZCS)
• 2x Digital Input (dry contacts) with S0 counters
• Methods for controlling each output
• WEB browser
• Mobile app: NETIO Mobile 2 (LAN or WiFi)
• NETIO Cloud
• Scheduler
• Watchdog (Power & Ping)
• Rules & Conditions (based on DI)
• Open API (10 protocols)


• NETIO Mobile 2: Mobile app
• NETIO Cloud: Paid service


• ZCS (Zero Current Switching): The relay is switched when the current crosses zero.
  This reduces relay wear and allows switching devices with a high inrush current.
• PowerUp State: Default output state (On/Off/Last state)
• PowerUp Delay: Delay before switching the output on
• Firmware update over the Web interface
• Scheduler function: Each output can be switched according to its time schedule (calendar)


• Open API (protocols)
• JSON over http
• Modbus/TCP
• MQTT-flex
• Telnet
• SNMP (SNMP v1/v3)
• XML over http
• URL API - http get
• HTTP Push JSON / XML


• Supported protocols: http, DNS, NTP, uPNP, DHCP, ICMP, TCP/IP

SUPPORT FOR USERS AND DEVELOPERS

• NETIO Wiki - library for developers
• ANxx (Application Notes) with examples
• NETIO Drivers - for AV systems

SPECIFICATIONS

DEVICE VARIANTS
• PowerCable 2KZ:
  Device (terminal block inside) no power cables included

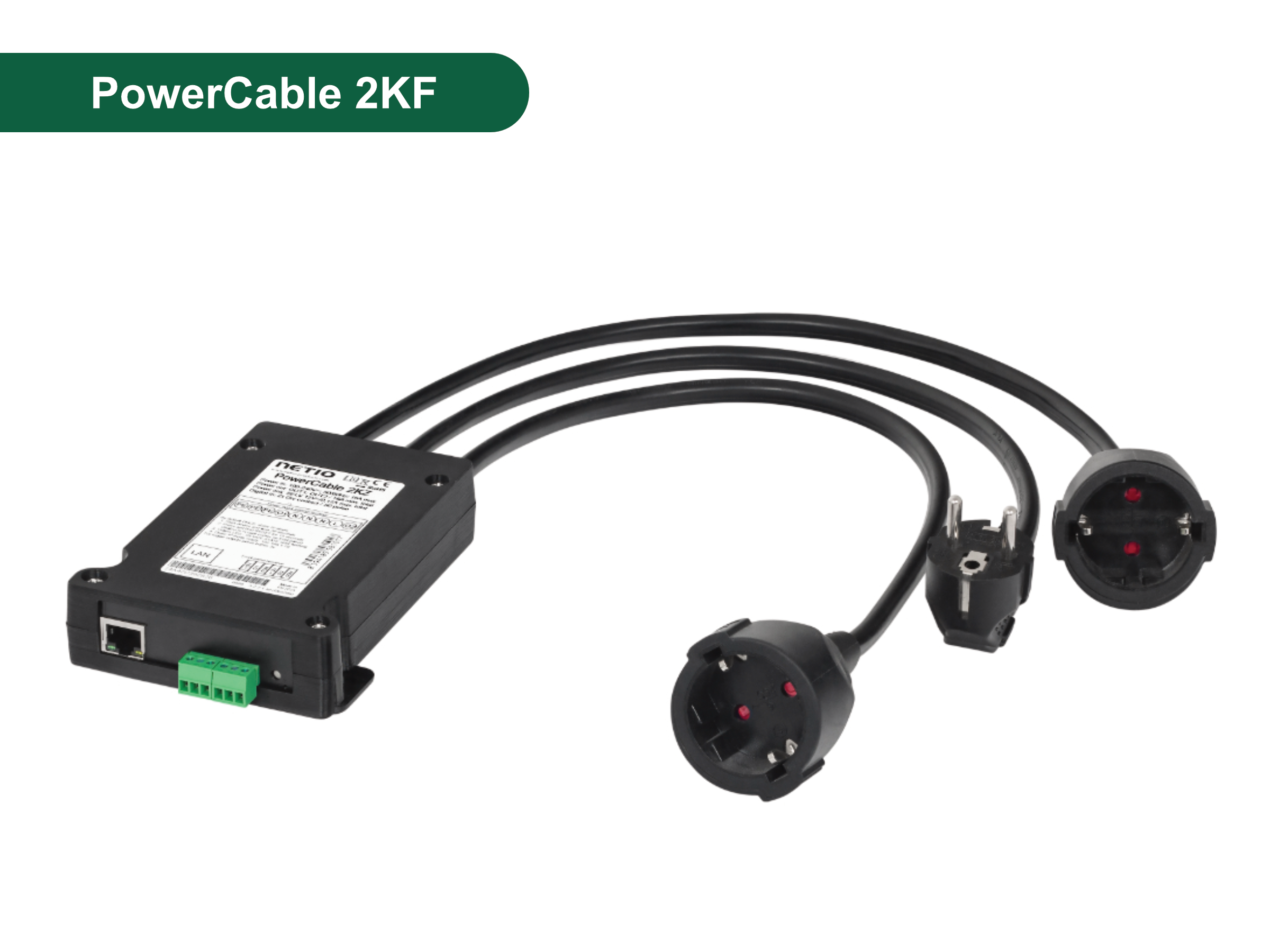

• PowerCable 2KF:
  Device + 3 power cables: CEE 7/7 + 2x output (Schuko)


POWER
• Power Input: Terminal block (Ø 2.5mm), 100-240VAC (50/60Hz) - max 16A
• Each Output: Metering + On/Off (SPST-NO relay)
• Internal consumption: 1-2W


INTERFACE
• LAN 10/100 Mbps (RJ-45)
• WiFi 2,4 GHz (internal antenna)
• 2x DI (Digital Input), 12V power (100mA)
• Load Defaults button (on the pannel)


ELECTRICAL MEASUREMENTS
• Electrical measurements: Yes (2 channels)
• 2x current [A], 2x consumption [Wh], 2x Power [W], 2x TPF (True Power Factor)
• 2x Phase [%], 2x Reverse Energy [Wh], Frequency [Hz], Voltage [V]


PACKAGE CONTENTS
• NETIO PowerCable 2KZ
• Power cables for 2KF (optional)
• QIG (printed Quick Installation Guide)

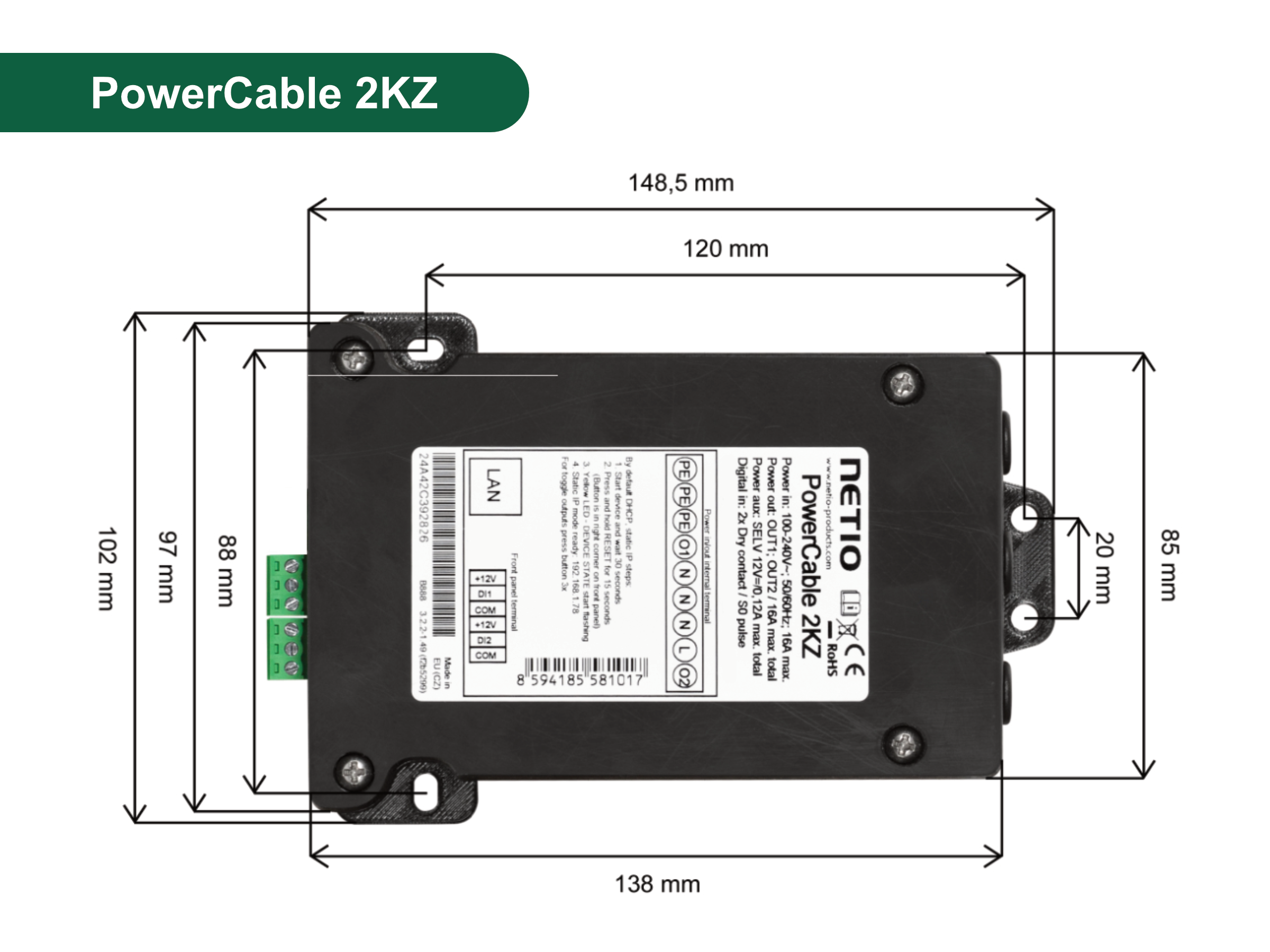

DIMENSIONS / WEIGHT
• PowerCable 2KZ: 102 x 32 x 149 mm
• Package: 125 x 73 x 204 mm/0.2 kg


OPERATING CONDITIONS
• Temperature: -20 °C to +55 °C
• For indoor use only (IP30)
• Designed and produced in the Czech Republic


STANDARDS/NORMS:

EN 62368, EN 60950, EN 61000, EN 50581




Ordering Information



Model Name	Description
PowerCable 2KZ	Flat PDU, LAN/WiFi, 2x power output (Switched & Metered), 2x DI (Digital Input). No power cables
PowerCable 2KF	PowerCable 2KZ is flat housing dual power output PDU for remote power metering & power restarting.      Device connectivity is LAN/WiFi and 2 power outputs (110/230V max 16A) are extended with 2x DI. Without cables.
