Advantech EKI-9510 Series
EN 50155 10-port Ethernet Switch
Properties
Description
Further Informations
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Informations
PDF
- M12 connector with IP67 rugged housing
- Complies with EN50155 & EN50121-3-2
- Complies with EN45545-2 & EN61373
- Supports PoE IEEE802.3af/at(PoE model)
- Wide nominal power input range: 24~110V DC
- Operating power input range: 16.8~137.5VDC
- Compact size to fit in different narrow spaces
- Operating temperature:-40 ~ 70°C
- PoE/ non-PoE /Fast Ethernet/ Gigabit Ethernet/ Managed/ Unmanaged options available

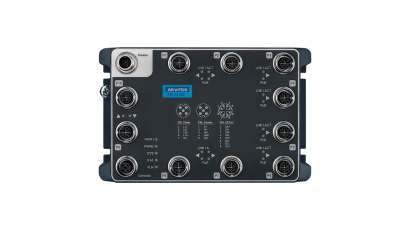

EKI-9510 series switch is designed for railway application, with rugged and high EMC performance. EKI-9510 series is the suitable networking solution for rolling stock and wayside applications. It provides M12 connectors for Ethernet/ console/ power-input) connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, it complies with IEC61373 vibration and shock for rolling stock application. The portfolio of EKI-9510 series provides multiple options, depends on user's demand, it has Managed type or Unmanaged type, Fast Ethernet or Gigabit Ethernet solutions, with IEEE802.3af/at PoE function (PoE model only), it provides up to total 90Watts power budget for P.D. devices (such as camera, IP-phone and wireless access point).
EKI-9510 series features a "compact" designed, with the IP67 rugged housing and the ample pitch connectors that can easy connect/ disconnect cables without interference to prevent the human error within the harsh industry and narrow environment. With the "short vertical height" dimension, it could be easily deployed/ installed in the cabinet or ceiling partition and integrate mass Ethernet connection in one box.
Specifications
| Interface | |
|---|---|
| Ethernet Port* | M12 4pin D-coded for Fast Ethernet (10/100BASE-T) M12 8pin X-coded for Gigabit Ethernet (10/100/1000BASE-T) |
| Console port | M12 5pin A-coded (Management model only) |
| Power Connector | M12 5pin A-coded |
| *See the port options from ordering information | |
| Physical | |
| Enclosure | Die-cast zinc front panel and extruded aluminum chassis |
| Protection Class | IP67 |
| Installation | Wall Mount |
| Dimensions | 160 x 100 x 70 mm (W x H x D) |
| Weight | 1.8 kg |
| LED Display | |
| System LEDs | PWR1, PWR2, SYS. Alarm & R.M. (Management model only) |
| Port LED | Data, PoE (PoE model only) |
| Environment | |
| Operating Temperature | -40 ~ 70°C (-40 ~ 158°F) |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ambient Relative Humidity | 5~ 95% (non-condensing) |
| Power (non-PoE Model) | |
| Power Consumption | 8 Watts |
| Nominal Input voltage | 24/28/36/48/72/96/110VDC |
| Operating range | 16.8~137.5VDC |
| Over current protection | Yes |
| Reverse polarity protection | Yes |
| Power (PoE Model) | |
| Power Consumption | 15 Watts |
| Nominal Input voltage | 24/28/36/48/72/96/110VDC |
| Operating range | 16.8~137.5VDC |
| Over current protection | Yes |
| Reverse polarity protection | Yes |
| Certification | |
| Safety | EN62368-1 |
| EMC | CE, EN55011/ 55032/ 55035; FCC Part 15 Subpart B class A |
| EMS | EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (EFT); EN61000-4-5 (Surge); EN61000-4-6 (CS) |
| Shock | EN61373 |
| Vibration | EN61373 |
| Freefall | IEC60068-2-31 |
| Railway | EN50155, EN 50121-3-2 |
| Fire protection | EN45545 |
| Other | EN61000-6-4, EN61000-6-2 |
| Switch Properties (Management model only) | |
| DRAM | 128MB |
| Flash | 32MB |
| Max. IGMP group | 256 |
| Max static VLANs | 256 |
| VLAN ID range | 1-4094 |
| MAC table | 8K |
| Jumbo frame | 10KB |
| Packet buffer | 4.1MB |
| Max priority queues | 8 |
| L2 Features (Management model only) | |
| L2 MAC Address | 8K |
| Jumbo Frame | 10KB |
| VLAN Group | 256 (VLAN ID 1~4094) |
| VLAN | 802.1Q VLAN, GVRP |
| Port Mirroring | Per port, Multi-source port |
| IP Multicast | IGMP Snooping v1/v2/v3, MLD Snooping, IGMP Immediate leave |
| Storm Control | Broadcast, Multicast, Unknown unicast |
| Redundancy Protocol | IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP, X-Ring Pro |
| QoS (Management model only) | |
| Priority Queue | Priority Queue Scheduling WRR (Weighted Round Robin), SP (Strict Priority) |
| Class of Service | IEEE 802.1p based CoS, IP TOS, DSCP based CoS |
| Rate Limiting | Egress Rate limit |
| Link Aggregation | IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking |
| Security (Management model only) | |
| Port Security | Static, Dynamic |
| Authentication | 802.1x (Port-Based, MAC-Based), RADIUS, TACACS+ |
| Advanced Security | IP Source Guard. Access control list |
| Management (Management model only) | |
| DHCP | Client, Server, Option 66/67 |
| Access | SNMP v1/v2c/v3, WEB, Telnet, RMON, Standard MIB, Private MIB |
| Security Access | SSH 2.0, SSL |
| Software Upgrade | TFTP, HTTP, Dual Image |
| NTP | NTP server/client |
Ordering Information
| Part number | Management model | 10/100BASE-T | 10/100/1000BASE-T | PoE ports |
|---|---|---|---|---|
| EKI-9510E-MPW-B | Yes | 10 (P1-P10) | 8 (P1-P8) | |
| EKI-9510E-2GMPW-B | Yes | 8 (P1-P8) | 2 (P9-P10) | 8 (P1-P8) |
| EKI-9510G-MPW-B | Yes | 10 (P1-P10) | 8 (P1-P8) | |
| EKI-9510E-2GPW-B | 8 (P1-P8) | 2 (P9-P10) | 8 (P1-P8) | |
| EKI-9510E-PW-B | 10 (P1-P10) | 8 (P1-P8) | ||
| EKI-9510G-PW-B | 10 (P1-P10) | 8 (P1-P8) | ||
| EKI-9510E-MW-B | Yes | 10 (P1-P10) | ||
| EKI-9510E-2GMW-B | Yes | 8 (P1-P8) | 2 (P9-P10) | |
| EKI-9510G-2GMW-B | Yes | 10 (P1-P10) | ||
| EKI-9510E-W-B | 8 (P1-P8) | 2 (P9-P10) | ||
| EKI-9510E-2GW-B | 10 (P1-P10) | |||
| EKI-9510G-W-B | 10 (P1-P10) |
