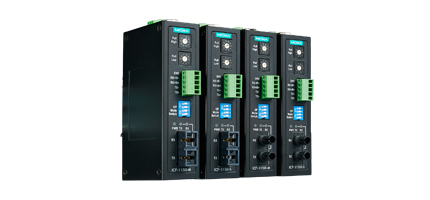

MOXA ICF-1150 Series
Industrial serial-to-fiber converters
- RS-232, fiber, and RS-422/485 3-way communication
- Rotary switch to change the pull high/low resistor value
- Extend RS-232/422/485 transmission up to: · 40 km with single-mode · 5 km with multi-mode
- 3-way Galvanic Isolation (for "I" model only)
- - 40 to 85°C wide temperature models available
- Class I, Div. II certifi cation (Pending)
Industrial serial-to-fiber converters
Three-Way Communication
The ICF-1150 series support 2 serial ports, with a D-sub connector for RS-232 communication and a removable terminal block for RS-422 or RS-485 communication. The 3 ports (2 serial ports and one fiber port) are completely independent. When an ICF-1150 converter receives data from any one port, it will send the data out through the other 2 ports. For example, once the ICF-1150 converter receives a command from the remote master through the fiber port, it will convert the signal and send the command through the RS-232 and RS-422/485 ports at the same time. If the user is monitoring a system running on an RS-485 network, there is no need to use an additional RS-232 to RS-485 converter to connect the laptop computer’s serial port to the RS-485 bus.
Rotary Switch for Setting the Pull High/Low Resistor
The RS-485 interface supports multi-drop or daisy-chain connections, which system engineers will use to connect serial devices such as meters, RTUs, and readers together on the same bus. Since the number of serial devices on the same bus will cause the impedance of the data line to increase, the ICF-1150 allows users to tune the pull high/low resistor. Just rotate the switch to the appropriate value without removing the ICF-1150 from the DIN-rail.
Three-Way Communication
The ICF-1150 series support 2 serial ports, with a D-sub connector for RS-232 communication and a removable terminal block for RS-422 or RS-485 communication. The 3 ports (2 serial ports and one fiber port) are completely independent. When an ICF-1150 converter receives data from any one port, it will send the data out through the other 2 ports. For example, once the ICF-1150 converter receives a command from the remote master through the fiber port, it will convert the signal and send the command through the RS-232 and RS-422/485 ports at the same time. If the user is monitoring a system running on an RS-485 network, there is no need to use an additional RS-232 to RS-485 converter to connect the laptop computer’s serial port to the RS-485 bus.
Rotary Switch for Setting the Pull High/Low Resistor
The RS-485 interface supports multi-drop or daisy-chain connections, which system engineers will use to connect serial devices such as meters, RTUs, and readers together on the same bus. Since the number of serial devices on the same bus will cause the impedance of the data line to increase, the ICF-1150 allows users to tune the pull high/low resistor. Just rotate the switch to the appropriate value without removing the ICF-1150 from the DIN-rail.
Optical Fiber Side
Fiber Connector
SC or ST
Cable Requirements
Single-mode: 8.3/125, 8.7/125, 9/125, or 10/125 ìm
Multi-mode: 50/125, 62.5/125, or 100/140 ìm
Transmission Distance
Single-mode: 40 km
Multi-mode: 5 km
Wavelength
ICF-1150-S (single-mode): 1310 nm
ICF-1150-M (multi-mode): 850 nm
Tx Output
ICF-1150-S (single-mode): > -5 dBm
ICF-1150-M (multi-mode): > -5 dBm
Rx Sensitivity
ICF-1150-S (single-mode): -25 dBm
ICF-1150-M (multi-mode): -20 dBm
Ring Transmission
Half-duplex
Point-to-Point Transmission
Half-duplex or full-duplex
RS-232/422/485 Side
RS-232 Signals
TxD, RxD, GND
RS-422 Signals
TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w Signals
TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w Signals
Data+, Data-, GND
Baudrate
50 bps to 921.6 kbps
ESD Protection
15 kV for all signals
Isolation
2 kV RMS isolation per I/O port for 1 minute
Physical Characteristics
Housing
Metal
Dimensions
30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
Weight
330 g
Environmental Limits
Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Power Requirements
Input Voltage
12 to 48 VDC
Power Consumption
ICF-1150: 127 mA @ 12 V
ICF-1150I: 163 mA @ 12 V
Voltage Reversal Protection
Protects against V+/V- reversal
Over Current Protection
1.1 A (protects against two signals shorted together)
Standards and Certifications
Safety
UL 508
Hazardous Location
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 EEx nC IIC, IECEx
EMC
CE, FCC
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class B
EMS
EN 61000-4-2 (ESD) Level 4,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 (PFMF) Level 3
Freefall
IEC 60068-2-32
Green Product
RoHS, CRoHS, WEEE
MTBF (mean time between failures)
Time
792,085 hrs
Database
Telcordia (Bellcore), GB
Water and Dust Proof
IP30
Ordering Information
Model No. | Description |
ICF-1150-M-SC | Industrial RS-232/422/485 to multimode fiber converter, SC connector |
ICF-1150-M-ST | Industrial RS-232/422/485 to multimode fiber converter, ST connector |
ICF-1150-S-ST | Industrial RS-232/422/485 to single mode fiber converter, ST connector |
ICF-1150I-S-ST | Industrial RS-232/422/485 to single mode fiber converter, ST connector, 2 KV isolation |
ICF-1150I-M-SC | Industrial RS-232/422/485 to multimode fiber converter, SC connector, 2 KV isolation |
ICF-1150-M-SC-T | Industrial RS-232/422/485 to multimode fiber converter, SC connector, -40 to 85°C |
ICF-1150-M-ST-T | Industrial RS-232/422/485 to multimode fiber converter, ST connector, -40 to 85°C |
ICF-1150-S-SC-T | Industrial RS-232/422/485 to single mode fiber converter, SC connector, -40 to 85°C |
ICF-1150-S-ST-T | Industrial RS-232/422/485 to single mode fiber converter, ST connector, -40 to 85°C |
ICF-1150I-M-SC-T | Industrial RS-232/422/485 to multimode fiber converter, SC connector, -40 to 85°C, 2 KV isolation |
ICF-1150I-M-ST-T | Industrial RS-232/422/485 to multimode fiber converter, ST connector, -40 to 85°C, 2 KV isolation |
ICF-1150I-S-SC-T | Industrial RS-232/422/485 to single mode fiber converter, SC connector, -40 to 85°C, 2 KV isolation |
ICF-1150I-M-ST | Industrial RS-232/422/485 to multimode fiber converter, ST connector, 2 KV isolation |
ICF-1150I-S-SC | Industrial RS-232/422/485 to single mode fiber converter, SC connector, 2 KV isolation |
ICF-1150I-S-ST-T | Industrial RS-232/422/485 to single mode fiber converter, ST connector, -40 to 85°C, 2 KV isolation |
ICF-1150-S-SC | Industrial RS-232/422/485 to single mode fiber converter, SC connector |
