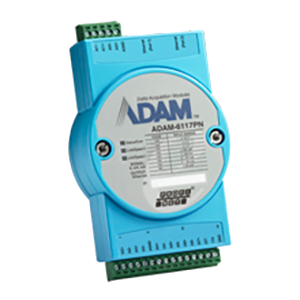

Advantech ADAM-6117PN
8-ch Isolated Analog Input PROFINET Module
- PROFINET protocol
- High common mode voltage 200 VDC
- Isolation Protection: 2,500 VDC
- 2 x RJ-45 LAN (daisy chain)
Advantech’s ADAM-6100 series is a new line of Industrial Ethernet Remote I/O modules. Designed with 2,500 VDC isolation protections.
SPECIFICATION
Analog Input
Channels
8 (differential)
Input Impedance
> 10 M Ω (voltage) , 120 Ω (current)
lnput Type
mV, V, mA
lnput Range
±150 mV, ±500 mV, ±1 V ±5 V, ±10 V, 0~20 mA, 4~20 mA, ±20 mA
Span Drift
± 30 ppm/°C
Zero Drift
± 6 μV/°C
Resolution
16-bit
Accuracy
± 0.1% of FSR (Current) at 25°C
± 0.2% of FSR (Current) at 25°C
Sampling Rate
10 sample/second (total)
CMR @ 50/60 Hz
92 dB
NMR @ 50/60 Hz
67 dB
High Common Mode
200 V DC
COMMON SPECIFICATION
General
LAN
10/100Base-T(X)
Power Consumption
ADAM-6117: 3.5 W @ 24 V DC
ADAM-6124: 6 W @ 24 V DC
Connectors
2 x RJ-45 LAN (Daisy Chain)
Plug-in screw terminal block (I/O and power)
Watchdog
System (1.6 second)
Power Input
10 ~ 30 V DC
Protection
Isolation Protection
2,500 V DC
Built in TVS/ESD Protection
Power Reversal Protection
Environment
Operating Temperature
-10 ~ 70°C (14 ~ 158°F)
Storage Temperature
-20 ~ 80°C (-4 ~ 176°F)
Operating Humidity
20 ~ 95% RH (non-condensing)
Storage Humidity
0 ~ 95% RH (non-condensing)
ORDERING INFORMATION
Analog Input
Channels
8 (differential)
Input Impedance
> 10 M Ω (voltage) , 120 Ω (current)
lnput Type
mV, V, mA
lnput Range
±150 mV, ±500 mV, ±1 V ±5 V, ±10 V, 0~20 mA, 4~20 mA, ±20 mA
Span Drift
± 30 ppm/°C
Zero Drift
± 6 μV/°C
Resolution
16-bit
Accuracy
± 0.1% of FSR (Current) at 25°C
± 0.2% of FSR (Current) at 25°C
Sampling Rate
10 sample/second (total)
CMR @ 50/60 Hz
92 dB
NMR @ 50/60 Hz
67 dB
High Common Mode
200 V DC
COMMON SPECIFICATION
General
LAN
10/100Base-T(X)
Power Consumption
ADAM-6117: 3.5 W @ 24 V DC
ADAM-6124: 6 W @ 24 V DC
Connectors
2 x RJ-45 LAN (Daisy Chain)
Plug-in screw terminal block (I/O and power)
Watchdog
System (1.6 second)
Power Input
10 ~ 30 V DC
Protection
Isolation Protection
2,500 V DC
Built in TVS/ESD Protection
Power Reversal Protection
Environment
Operating Temperature
-10 ~ 70°C (14 ~ 158°F)
Storage Temperature
-20 ~ 80°C (-4 ~ 176°F)
Operating Humidity
20 ~ 95% RH (non-condensing)
Storage Humidity
0 ~ 95% RH (non-condensing)
ORDERING INFORMATION
ADAM-6117EI | 8-ch Isolated AI EtherNet/IP Module |
ADAM-6117PN | 8-ch Isolated AI PROFINET Module |
