MOXA ISD-1100-T / 1200-T Series

Entry-level data line surge protectors

MOXA ISD-1100-T / 1200-T Series
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Plug and play
  • Surge protection for serial data lines
  •   ISD-1110-T/1130-T: EN 61000-4-5 Level 4
  •   ISD-1210-T/1230-T: IEC 61632-21 C2 (20 kV protection)
  • Supports RS-232 or RS-422/485
  • Compact size for easy installation
  • Wide temperature model available for -40 to 85°C environments
The ISD-1100-T/1200-T series provides surge protection for serial data lines to prevent damage to devices such as modems, fax machines, I/O ports, terminals, instrumentation, hubs, and any other devices that use serial data connections. The ISD-1100-T/1200-T can add serial data line protection to a variety of serial connections: RS-232, RS-422, and RS-485.
ProdGrafik
Data Line Surge Protection

Maximum Power Protection
400 watts

Number of Protected Lines
ISD-1110-T: 7
ISD-1130-T: 4

Surge Capacity
4 kV, 8/20 ìs impulse per line

Working Voltage
ISD-1110-T: 15 V
ISD-1130-T: 5 V

Maximum Load Current
ISD-1110-T: 0.1 A (23°C), 0.05 A (85°C)
ISD-1130-T: 0.12 A (23°C), 0.07 A (85°C)

Response Time
< 1 ns

Protection Mode
Line to line, line to ground

Protection Rating
IP30

Bandwidth
10 MHz loss < 1 dB


Connectors

ISD-1110-T
Data in: DB9 male
Data out: DB9 female

ISD-1130-T
Data in: Terminal block
Data out: Terminal block


Physical Characteristics

Housing
Plastic

Weight
Product only
ISD-1110-T: 58 g
ISD-1130-T: 30 g

Packaged
ISD-1110-T: 119 g
ISD-1130-T: 96 g

Dimensions
ISD-1110-T: 53 x 37 x 20.6 mm (2.01 x 1.46 x 0.81 in)
ISD-1130-T: 53 x 37 x 20.6 mm (2.01 x 1.46 x 0.81 in)


Environmental Limits

Operating Temperature
-40 to 85°C (-40 to 185°F)

Storage Temperature
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
95% max, non-condensing

Altitude
Up to 2000 m

Note Please contact us if you require products guaranteed to function properly at higher altitudes.


Standards and Certifications

EMS
EN 61000-4-5 Level 4 (4 kV))



Ordering Information


Available Modules
ISD-1110-T 7 data line entry surge protector, RS-232, 4 kV surge protection,
-40 to 85°C operating temperature
ISD-1130-T 4 data line entry surge protector, RS-422/485, 4 kV surge protection,
-40 to 85°C operating temperature

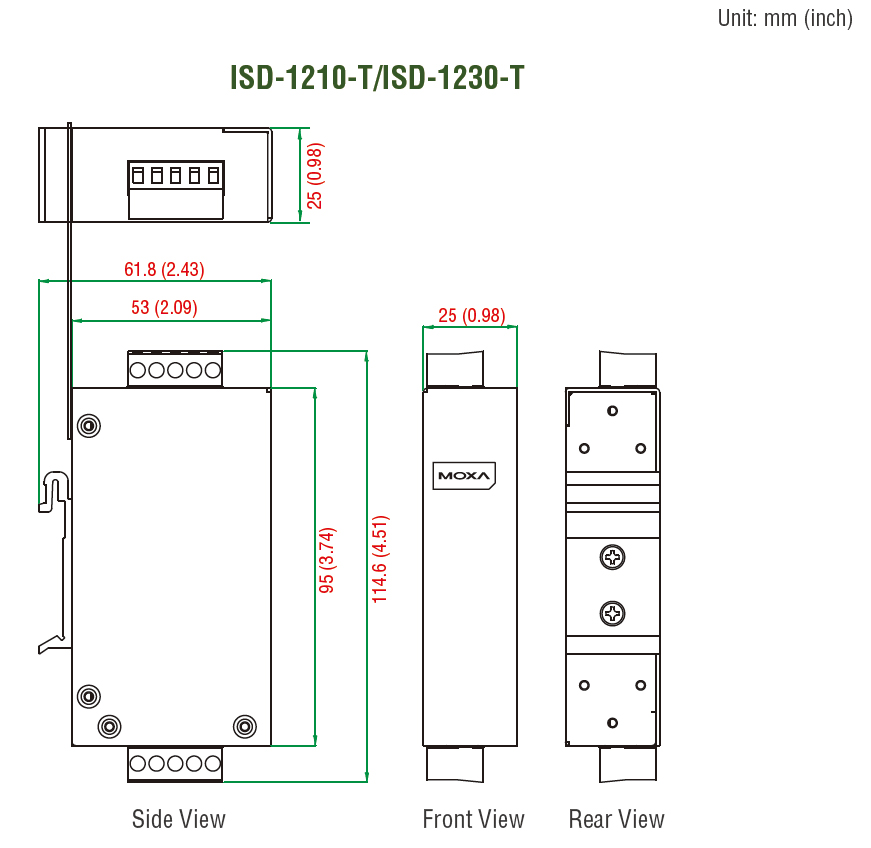

ISD-1210-T 4 data line advanced surge protector, RS-232, 20 kV surge protection,
-40 to 85°C operating temperature
ISD-1230-T 4 data line advanced surge protector, RS-422/485, 20 kV surge protection,
-40 to 85°C operating temperature
