Gefen EXT-DPKVM-241
2x1 DisplayPort KVM Switcher
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Switches one High-Resolution Display between two DisplayPort-equipped computers with audio/video and USB keyboards
- Supports resolutions up to 2560 x 1600
- Supports RGB and YCbCr color spaces
- DisplayPort utilizes a compact connector for easier installations
KVM Switching Between Two DisplayPort Sources Using One Display
Switch between two computers effortlessly using the Gefen 2x1 DisplayPort KVM Switcher, utilizing one display and one USB 2.0 port for a keyboard and mouse. Switch audio, video, and control signals for each computer. Access two computers from one workstation without having to use a network. Switch through the front panel "select" button, using the supplied IR remote control or via the RS232 port. The Gefen DisplayPort KVM Switcher is compatible with both Macintosh and PC keyboards, mice, and displays.
How It Works
Connect a DisplayPort display and USB 2.0 keyboard/mouse to the Gefen DisplayPort KVM Switcher output. Connect DisplayPort, USB, and audio ports on both computers to the Gefen DisplayPort KVM Switcher input using the supplied cables.
Note: If the source and/or display is not DisplayPort compliant, a protocol-specific protocol adapter will be required in order to connect the source to the Switcher and/or the Switcher to the high-resolution display.
Switch between two computers effortlessly using the Gefen 2x1 DisplayPort KVM Switcher, utilizing one display and one USB 2.0 port for a keyboard and mouse. Switch audio, video, and control signals for each computer. Access two computers from one workstation without having to use a network. Switch through the front panel "select" button, using the supplied IR remote control or via the RS232 port. The Gefen DisplayPort KVM Switcher is compatible with both Macintosh and PC keyboards, mice, and displays.
How It Works
Connect a DisplayPort display and USB 2.0 keyboard/mouse to the Gefen DisplayPort KVM Switcher output. Connect DisplayPort, USB, and audio ports on both computers to the Gefen DisplayPort KVM Switcher input using the supplied cables.
Note: If the source and/or display is not DisplayPort compliant, a protocol-specific protocol adapter will be required in order to connect the source to the Switcher and/or the Switcher to the high-resolution display.
Specifications
- Maximum Pixel Clock: 360 MHz

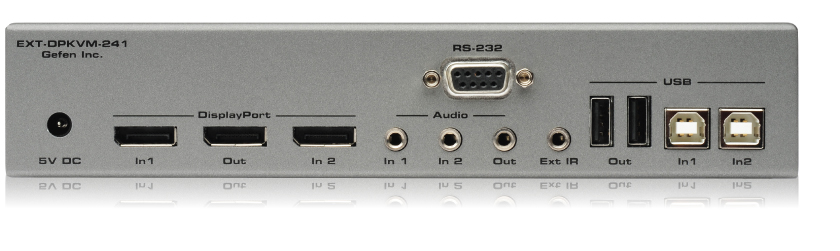

- Input Connector: (2) DisplayPort (from computers)
- Output Connector: (1) DisplayPort (to display)
- Input Connector: (2) USB 2.0 Type "B" (from computers)
- Output Connector: (2) USB 2.0 Type "A" (to keyboard/mouse)
- Input Connector: (2) 3.5mm analog L/R audio (from computers)
- Output Connector: (1) 3.5mm analog L/R audio (to speakers or amplifier)
- Dimensions (W x H x D): 8.41" x 1.57" x 4.23" (213mm x 39mm x 107mm)
- Shipping Weight: 6 lbs (2.7 kg)
