Gefen EXT-USB-400FON
Optical 4 Port USB 2.0 Hub
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Extreme USB technology extends the range of USB 2.0 devices up to 1640 feet (500 meters) using fiber-optic cables
- Receiver unit is also a USB 2.0 four-port hub
- Fully backward-compliant with USB 1.1 and USB 2.0 specifications as certified by the USB Implementer's Forum
- Number of devices can be expanded using standard USB hubs
- Supported by all major operating systems including Windows®, Mac OS®, and Linux®
- Supports USB connections for devices such as PlayStation and Wii.
- A very secure method of USB control in areas where environmental conditions prohibit access by people
- Ideal as optical isolation from over-voltage and static electricity
- Supports High Speed USB 2.0 devices up to 480mb/s
Extends any high speed USB 2.0 device up to 1640 feet (500 meters) from the USB source over multimode fiber optics cable
This new USB Extender supports all USB 2.0 devices, extending to 1640 feet (500 meters) away from the USB source. The receiver unit also contains a four-port USB 2.0 hub.
By using fiber optic cables, the new Gefen USB 400FO extends USB peripherals a long distance from the location of a computer. It provides an solution free of EMI (Electromagnetic Interference) for USB extension.
How It Works

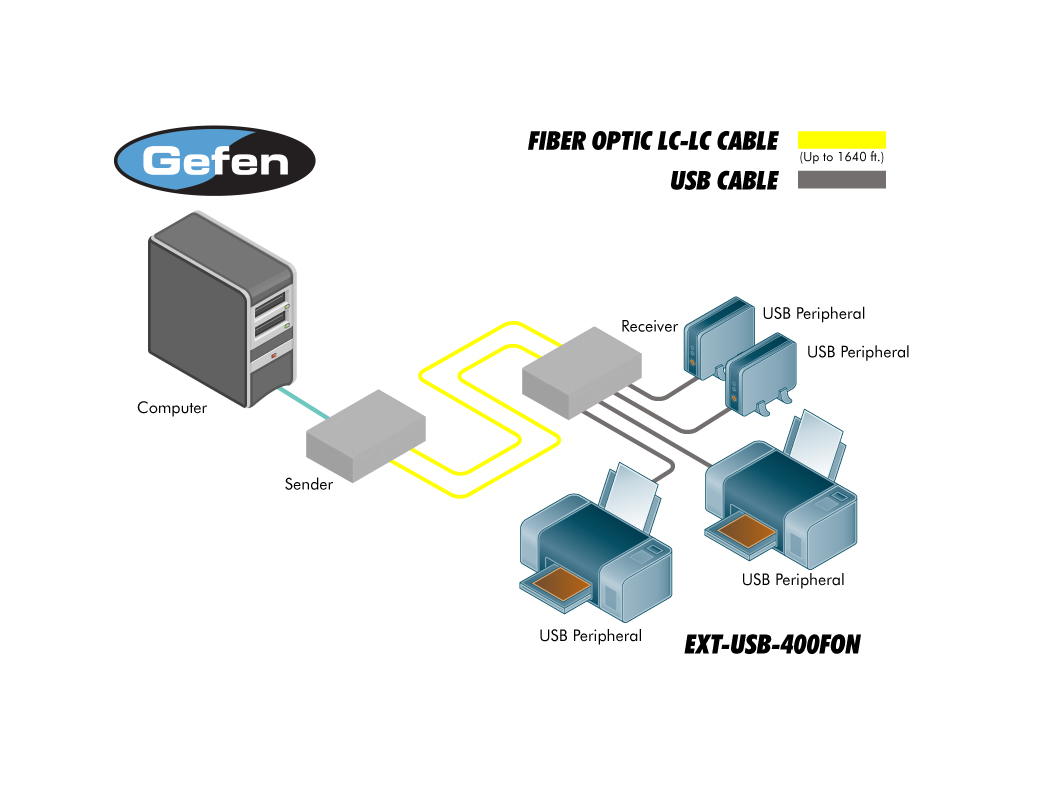

The USB 400FO sender unit is connected to the source using the supplied USB short cable. USB peripheral(s) are connected to the receiver unit at the extended side. Two LC-terminated fiber optic cables are used to link the sender to the receiver.
Note: This equipment is a new version of our existing part number, EXT-USB-400FO. This new model provides outstanding extension facilities for USB 2.0 peripherals such as a USB camera or USB hard drive.
This new USB Extender supports all USB 2.0 devices, extending to 1640 feet (500 meters) away from the USB source. The receiver unit also contains a four-port USB 2.0 hub.
By using fiber optic cables, the new Gefen USB 400FO extends USB peripherals a long distance from the location of a computer. It provides an solution free of EMI (Electromagnetic Interference) for USB extension.
How It Works
The USB 400FO sender unit is connected to the source using the supplied USB short cable. USB peripheral(s) are connected to the receiver unit at the extended side. Two LC-terminated fiber optic cables are used to link the sender to the receiver.
Note: This equipment is a new version of our existing part number, EXT-USB-400FO. This new model provides outstanding extension facilities for USB 2.0 peripherals such as a USB camera or USB hard drive.
Specifications
- USB 2.0 Speed: 480Mbps
- USB Input Connector: Type B
- USB Output Connector: Type A
- Link Connector: (2) LC
- Power Supply: 5V DC
- Operating temperature range 0°C to 50°C
- Range: 1640ft (500m) over 50/125µm Multi-Mode Fiber optic cable
- Dimensions (Sender): 4" W x 1.25" H x 3" D
- Dimensions (Receiver): 4" W x 1.25" H x 3" D
- Shipping Weight: 2 lbs
