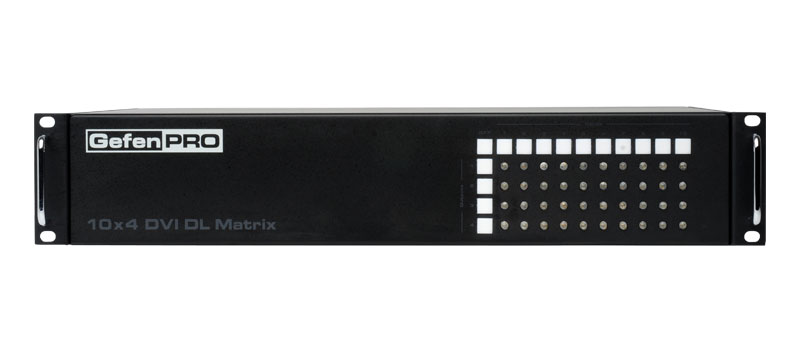

Gefen GEF-DVI-1044DL
10x4 DVI DL Matrix
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840 x 2400 (WQUXGA)
- Front-panel push buttons for local switching
- Advanced EDID management with programmable routing presets
- Front-panel LCD Display
- Standby mode
- Output masking control
- Switching is controlled via front panel buttons, IR remote, IP, or RS-232 commands
- Supports DDWG standards for DVI
- IP control and configuration with built-in Web server
- Internal power supply
- Rack-mountable
Route any 10 DVI Dual Link Sources to any 4 DVI Dual Link Monitors
Simplify the process of routing up to ten DVI dual link sources to any of four DVI monitors without losing quality or resolution. The GefenPRO 10x4 DVI DL Matrix provides a simple, reliable, and highly effective method of streamlining any installation using multiple sources and outputs, taking the hassle out of managing multiple connections. Each source is accessible from any monitor by using the front-panel buttons, the optional GEF-DVI1044DL-KB remote serial keyboard, the supplied IR remote unit, built-in RS-232 or using IP control.
How It Works
The GefenPRO 10x4 DVI DL Matrix has ten DVI inputs and four DVI outputs. Using the supplied DVI dual link cables, connect ten sources to the DVI inputs on the GefenPRO 10x4 DVI DL Matrix. Connect the four dual link outputs on the GefenPRO 10x4 DVI DL Matrix to the DVI monitors. Plug in the power cord and power ON the 10x4 DVI DL Matrix. The connected monitors will show video according to the routing selection.
Note: The GefenPRO 10x4 DVI DL Matrix only supports DVI-D. The DVI connectors on the GefenPRO 10x4 DVI DL Matrix have all 29 pins.
Simplify the process of routing up to ten DVI dual link sources to any of four DVI monitors without losing quality or resolution. The GefenPRO 10x4 DVI DL Matrix provides a simple, reliable, and highly effective method of streamlining any installation using multiple sources and outputs, taking the hassle out of managing multiple connections. Each source is accessible from any monitor by using the front-panel buttons, the optional GEF-DVI1044DL-KB remote serial keyboard, the supplied IR remote unit, built-in RS-232 or using IP control.
How It Works
The GefenPRO 10x4 DVI DL Matrix has ten DVI inputs and four DVI outputs. Using the supplied DVI dual link cables, connect ten sources to the DVI inputs on the GefenPRO 10x4 DVI DL Matrix. Connect the four dual link outputs on the GefenPRO 10x4 DVI DL Matrix to the DVI monitors. Plug in the power cord and power ON the 10x4 DVI DL Matrix. The connected monitors will show video according to the routing selection.
Note: The GefenPRO 10x4 DVI DL Matrix only supports DVI-D. The DVI connectors on the GefenPRO 10x4 DVI DL Matrix have all 29 pins.
Specifications
- Maximum Pixel Clock: 2x 165 MHz
- Input Video Signal: 1.2V p-p
- Input DDC Signal: 5V p-p (TTL)
- Video Input Connectors: (10) DVI-I 29-pin, female (digital only)
- Video Output Connectors: (4) DVI-I 29-pin, female (digital only)
- RS-232 Port: DB-9, female
- IR Extender Input: 3.5 mm mini-stereo jack
- IP Control Port: RJ-45, Shielded
- Power Supply: 100 - 240V AC (Internal)
- Power Consumption: 90W (max.)
- Rack size: 2U (rack ears included)
- Dimensions: 17.2" W x 12" D x 3.5" H
- Shipping Weight: 20 lbs.
