Advantech APAX-6572

Intel® Atom™ D510 1.66 GHz, 2 GB RAM Controller with 3 x LAN, 2 x COM, VGA

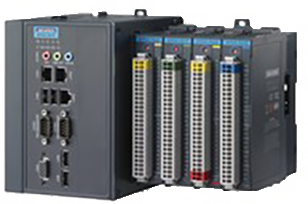

Advantech APAX-6572
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Intel Atom D510 1.66 GHz CPU
  • Onboard 2 GB DDR2 DRAM
  • Redundant system with two controllers (master and slave) to ensure continuous I/O control
  • Expands I/O by connecting with APAX-5000 I/O modules
  • Supports Windows WES7, WES2009 and Windows CE
  • Provides C/C++ and .NET library for I/O control and communication
  • Supports real-time control tasks under Windows CE through ProConOS
  • 2 x RS-232/422/485 (automatic flow control)
  • 3 x 10/100/1000 Mbps LAN, 4 x USB 2.0
The APAX-6572 is a high performance controller with an Intel Atom D510 CPU. By installing Windows WES7, WES2009 or Windows CE operating system, it becomes an application ready platform. It is an ideal open control platform which can be combined with APAX I/O modules, and features flexible I/O expansion, real-time I/O control, and powerful computing and networking capability through various interfaces.
ProdGrafik
APAX-6572-AE Intel Atom D510 1.66 GHz, 2 GB RAM Controller
APAX-6572R-AE Redundant Control System
