MOXA CSM-200 Series

10/100BaseT(X) to 100BaseFX slide-in modules for the NRack System™

egenskaber
beskrivelse
yderligere information
PDF

LFP (Link Fault Pass-through) and FEF (Far End Fault)
Two different operation modes: 1.Store-and-Forward, 2.Pass Through
Auto Negotiation
Supports TS-1000 Version 2 protocol (CSM-400 Series only)
Plug and Play
Hot-swap

The CSM-200 modules are slide-in Ethernet-to-fiber media converters for the NRack System™. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (SC/ST connectors), and can be installed in any NRack System™ chassis.

Available Models
CSM-200-1213: 10/100BaseT(X) to 100BaseFX slide-in module media converter, multi-mode ST connector
CSM-200-1214: 10/100BaseT(X) to 100BaseFX slide-in module media converter, multi-mode SC connector
CSM-200-1218: 10/100BaseT(X) to 100BaseFX slide-in module media converter, single-mode SC connector

Technology

Standards:
IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X), 100BaseFX

Interface

RJ45 Ports: 10/100BaseT(X)
Fiber Ports: 100BaseFX (SC/ST connectors)
LED Indicators: PWR, Fiber Link, 10/100M (TP port)

DIP Switches:

Dip	Function	ON	OFF
1	Auto Negotiation	Enable	Disable
2	Force TP Speed	100 Mbps	10 Mbps
3	Force TP Duplex	Full Duplex	Half Duplex
4	Link Fault Pass Through	Enable	Disable
5	Operating Mode	Store-and-Forward	Pass Through

Optical Fiber

	100BaseFX
	Multi-mode	Single-mode
Wavelength	1300 nm	1310 nm
Max. TX	-14 dBm	0 dBm
Min. TX	-20 dBm>	-5 dBm
RX Sensitivity	-32 dBm	-34 dBm
Link Budget	12 dB	29 dB
Typical Distance	5 km (a) 4 km (b)	40 km (c)
Saturation	-6 dBm	-3 dBm

(a.) 50/125 ìm, 800 MHz*km fiber optic cable
(b.) 62.5/125 ìm, 500 MHz*km fiber optic cable
(c.) 9/125 ìm, 3.5 PS/(nm*km) fiber optic cable

Physical Characteristics

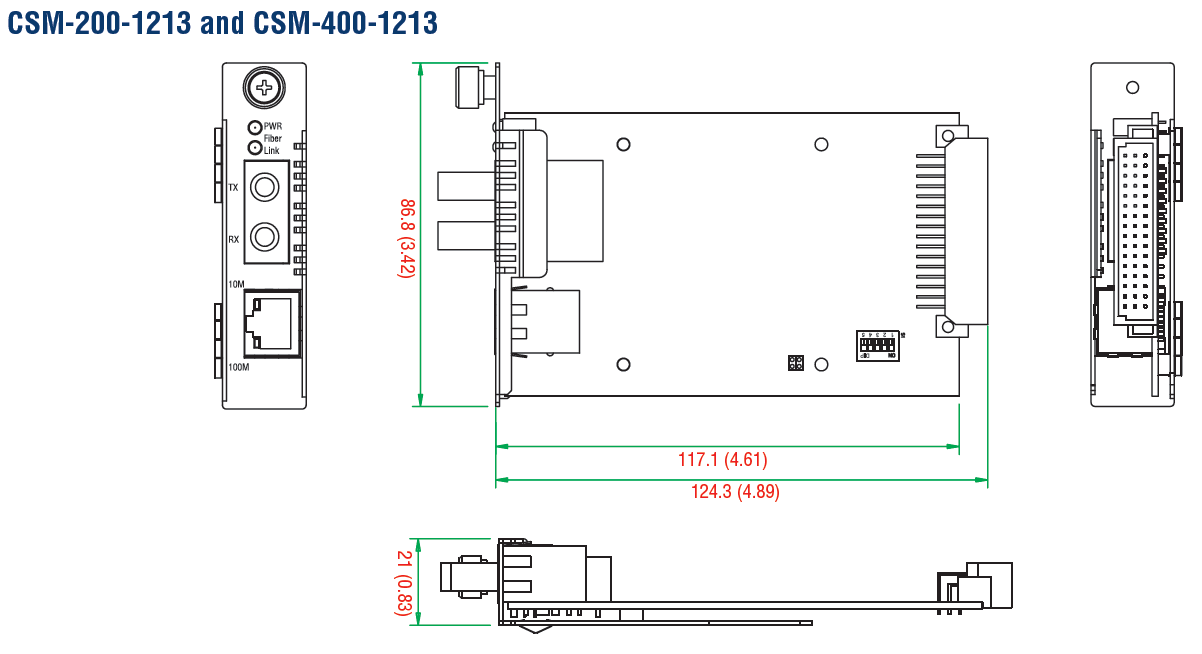

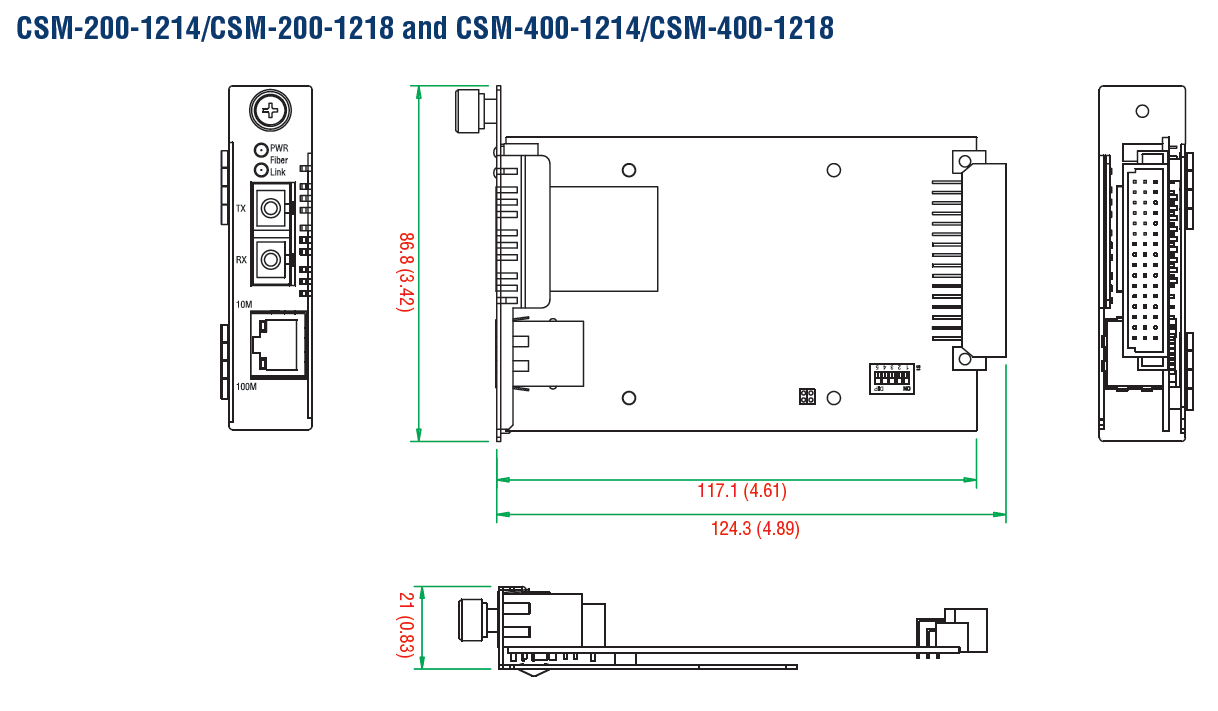

Dimensions: 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)

Weight:
Product only:
- CSM-200-1213: 115 g (0.25 lb)
- CSM-200-1214/1218: 125 g (0.28 lb)
Packaged:
- CSM-200-1213: 170 g (0.37 lb)
- CSM-200-1214/1218: 180 g (0.40 lb)

Environmental Limits

Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

Input Voltage: 12 VDC
Power Consumption: 180 mA @ 12 VDC

Standards and Certifications

Safety: UL 60950-1
EMC: CE, FCC
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 (PFMF) Level 3,
EN 61000-4-11 (DIPS)
Freefall: IEC 60068-2-32

MTBF

Time: 1,454,560 hrs
Database: Telcordia (Bellcore), GB

MOXA CSM-200 Series Datasheet (851.7 kB)
