MOXA EDS-405A-PTP Series
5-port IEEE 1588v2 PTP managed Ethernet switches
- Command Line Interface (CLI) for quickly configuring major managed functions
- DHCP Option 82 for IP address assignment with different policies
- Support EtherNet/IP, Modbus/TCP and PROFINET protocols for device management and monitoring
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
- RMON for efficient network monitoring and proactive capability
- SNMPv1/v2c/v3 for different levels of network management security
- Bandwidth management to prevent unpredictable network status
- Port mirroring for online debugging
The EDS-405A-PTP are 5-port IEEE 1588v2 PTP switches designed especially for real-time control applications. The switches support Modbus TCP, PROFINET RT, and EtherNet/IP for better SCADAintegration. Other management functions such as IGMP snooping, IEEE 802.1Q VLAN, QoS, RMON and relay warning, make the network planning more flexible and easy.
IEEE 1588 PTP Features
IEEE 1588 PTP Features
- IEEE 1588v2 PTP (Precision Time Protocol) with hardware time stamping for precise time synchronization of networks
- Support both IEEE 1588 Boundary Clock and Transparent Clock
- Support both End to End (2-step) and Peer to Peer (2-step) modes in Transparent Clock
- High precision time accuracy (under 1 ìs)
- Technology
- IEEE 802.3 for 10BaseT
- IEEE 802.3u for 100BaseT(X)
- IEEE 802.3x for Flow Control
- IEEE 802.1D-2004 for Spanning Tree Protocol
- IEEE 802.1w for Rapid STP
- IEEE 802.1p for Class of Service
- IEEE 802.1X for Authentication
- IEEE 802.1Q for VLAN Tagging
- Protocols IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP Option 66/67/82, BootP, LLDP, PROFINET, EtherNet/IP, Modbus/TCP, IPv6, NTP Server/Client, HTTPS, SSH
- MIB MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
- Flow Control IEEE 802.3x flow control, back pressure flow control
- Priority Queues 4
- Max. Number of Available VLANs 64
- VLAN ID Range VID 1 to 4094
- IGMP Groups 256
- MAC Table Size 8 K
- Packet Buffer Size 1 Mbit
- RJ45 Ports 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Console Port RS-232 (RJ45 connector)
- DIP Switches Turbo Ring, Master, Coupler, Reserve
- LED Indicators STATE, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M
- Alarm Contact 1 relay output with current carrying capacity of 1 A @ 24 VDC
- Power Requirements
- Input Voltage 12/24/48 (9.6 to 60 VDC), redundant dual inputs
- Input Current 0.27 A @ 24 V
- Overload Current Protection Present
- Connection 1 removable 6-contact terminal block
- Reverse Polarity Protection Present
- Housing Metal, IP30 protection

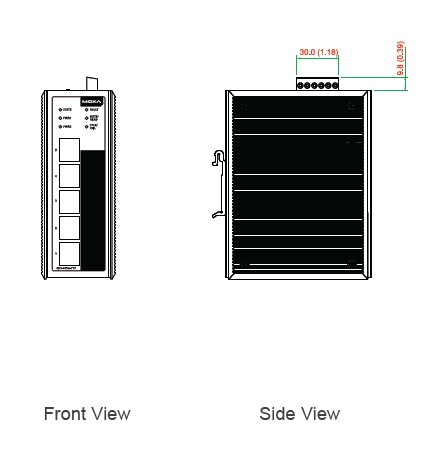

- Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
- Weight 820 g
- Installation DIN-rail mounting, wall mounting (with optional kit)
- Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
- Wide Temp. Models: -40 to 75°C (-40 to 167°F)
- Storage Temperature -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Safety UL 508 (pending)
- EMI FCC Part 15 Subpart B Class A, EN 61000-6-4 (industrial)
- EMS
- EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
- EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
- EN 61000-4-6 (CS) Level 3, EN 61000-4-8
- Shock IEC 60068-2-27
- Freefall IEC 60068-2-32
- Vibration IEC 60068-2-6
- Time 1,292,680 hours
- Database Telcordia (Bellcore), GB
- Standards
Switch Properties
Interface
Physical Characteristics
Environmental Limits
Standards and Certifications
MTBF (mean time between failures)
