MOXA IMC-101G Series

The IMC-101G industrial gigabit modular media converters are designed to provide reliable and stable 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments. The IMC-101G’s industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss. All IMC-101G models are subjected to a 100% burn-in test, and are available in models that support a standard operating temperature range of 0 to 60°C, and an extended operating temperature range of -40 to 75°C.

Technology
• Standards
• IEEE 802.3 for 10BaseT
• IEEE 802.3u for 100BaseT(X) and 100BaseFX
• IEEE 802.3ab for 1000BaseT(X)
• IEEE 802.3z for 1000BaseSX/LSX/LX/LH/LHX/ZX/E2X


Interface
• Fiber Ports   1000BaseSFP slot
• LED Indicators   PWR1, PWR2, FAULT, 10/100M (TP port), 1000M (TP and Fiber port)
• DIP Switches   Port break alarm mask, Link Fault Pass-through, SFP Auto/Force
• Alarm Contact   One relay output with current carrying capacity of 1 A @ 24 VDC
• RJ45 Ports    10/100/1000BaseT(X)


Optical Fiber
• Note    See the SFP-1G series product information on page 3-17 for detailed spec information.


Physical Characteristics
• Housing    Metal, IP30 protection

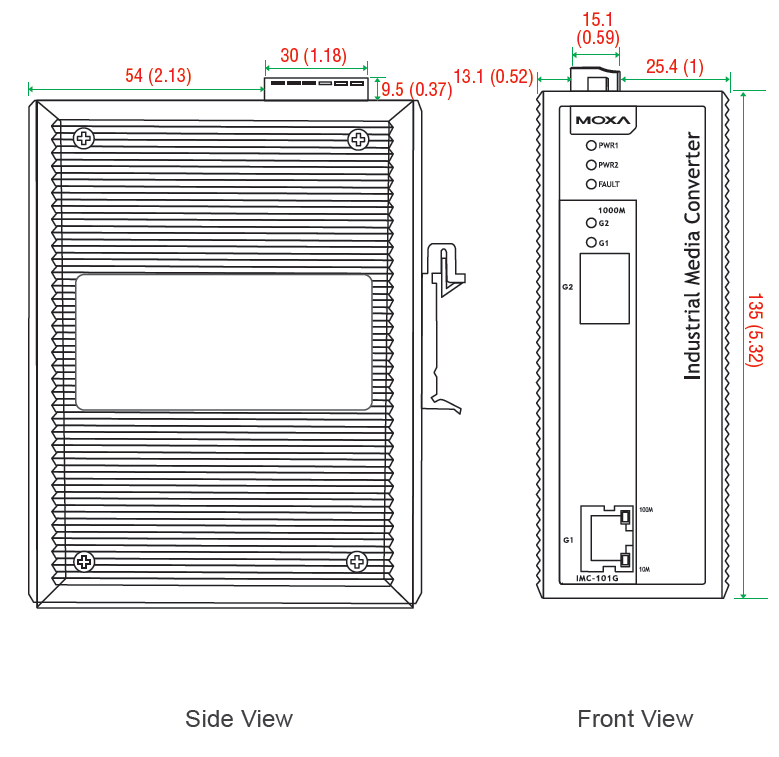

• Dimensions   53.6 x 135 x 105 mm (2.11 x 5.32 x 4.13 in)
• Weight    630 g

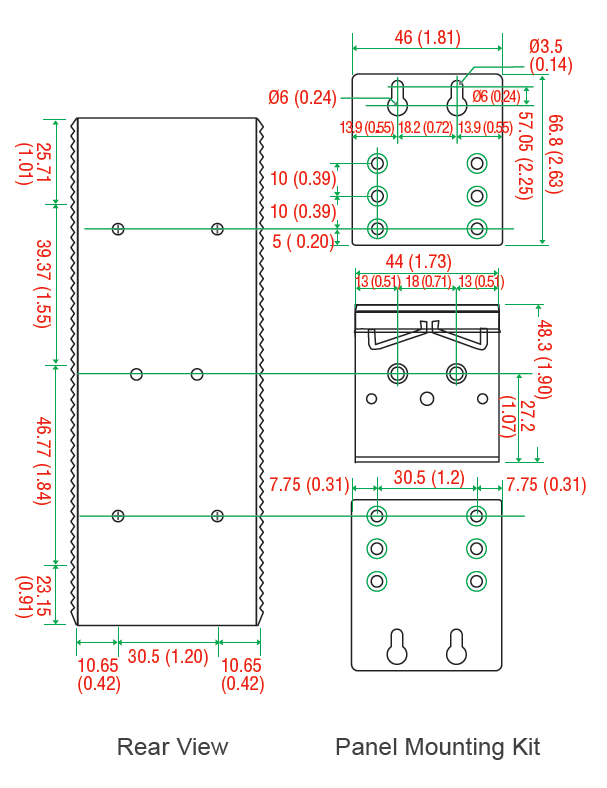

• Installation    DIN-Rail mounting, wall mounting (with optional kit)


Environmental Limits
• Operating Temperature    Standard Models: 0 to 60°C (32 to 140°F)
• Wide Temp. Models:   -40 to 75°C (-40 to 167°F)
• Storage Temperature    -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity    5 to 95% (non-condensing)


Power Requirements
• Input Voltage    12 to 45 VDC redundant inputs
• Input Current    110 mA @ 24 VDC
• Connection    Removable terminal block
• Overload Current Protection   2.5 A
• Reverse Polarity Protection    Present


Standards and Certifications
• Safety    UL 508
• Hazardous Location   UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC nL IIC T4, IECEx
• EMC    CE, FCC
• EMI   FCC Part 15 Subpart B Class A, EN 55022 Class A
• EMS
• EN 61000-4-2 (ESD) Level 3,
• EN 61000-4-3 (RS) Level 3,
• EN 61000-4-4 (EFT) Level 3,
• EN 61000-4-5 (Surge) Level 2,
• EN 61000-4-6 (CS) Level 3,
• EN 61000-4-8,
• EN 61000-4-11
• Shock   IEC 60068-2-27
• Freefall    IEC 60068-2-32
• Vibration   IEC 60068-2-6
• Green Product   RoHS, CRoHS, WEEE


MTBF (mean time between failures)
• Time    500,540 hrs
• Database    Telcordia (Bellcore), GB

Ordering Information

Available Modules
IMC-101G	Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media converter, 0 to 60°C
IMC-101G-T	Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media converter, -40 to 75°C
IMC-101G-IEX	Industrial 10/100/1000BaseT(X) to 1000BaseSFP media converter, IECEx, 0 to 60°C operating temperature
IMC-101G-T-IEX	Industrial 10/100/1000BaseT(X) to 1000BaseSFP media converter, IECEx, -40 to 75°C operating temperature
