MOXA EXPC-1519 Series

Zone 2 19-inch panel computers with multiple connectivity options

MOXA EXPC-1519 Series
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Anti-scratch, 19-inch sunlight viewable, 1000 nits LCD panel
  • High performance Intel® 3rd generation Core™ i7-3555LE or Celeron 1047UE CPU
  • Fanless design with highly efficient heat dissipation
  • -40 to 70°C extended operation temperature
  • Multi-touch with glove-friendly touch screen interface
  • Options of cable gland and standard USB Type A/RJ-45 connectors
  • Totally sealed IP66 / NEMA 4X enclosure
  • Class 1 Division 2, ATEX Zone 2, and IECEx certified
  • Dual AC/DC power supply
  • Optional WLAN, 100M Fiber optic connection
The EXPC-1519 panel computers are Zone 2 certified for both indoor and outdoor hazardous environments. The EXPC-1519 series features Intel® 3rd generation Core™ i7-3555LE 2.5GHz or Celeron 1047UE 1.4GHz processor, with up to 16 GB of memory to deliver high performance processing.

The EXPC-1519 series offers flexible interface connectivity options to meet your application needs: standard connectors with cable glands, terminal block with cable glands, and standard connectors on the bottom panel. The EXPC-1519 computers are designed with wide temperature range (-40 to 70°C) and come with a patented, fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot outdoor environments like oil and gas fields, or drilling platforms.

In addition, the EXPC-1519 computers feature touchscreen controls with anti-refection treatment and 1000 nits LED backlight, making them easy to read even during the peak daylight hours.

ProdGrafik
Computer


CPU
Intel® Core™ i7-3555LE 2.5GHz or Intel® Celeron® 1047UE 1.4GHz Processor

OS
Windows Embedded Standard 7 32/64-bit, Windows 7 Professional 32/64-bit

System Chipset
Intel® QM77 Express Chipset (Intel® BD82QM77 PCH)

BIOS
64 Mbit SPI Flash

Graphics Controller
Intel® HD Graphics 4000

System Memory

2 SO-DIMM slot, DDR3/DDR3L support, 4 GB pre-installed, maximum 16 GB capacity

Expansion Bus
1 mini PCIe socket

Touchscreen
Projected capacitive touch, 7H surface hardness, anti-reflection treatment, glove-friendly


Storage

HDD Support
2.5” SATA, 7 or 9.5 mm in height, access externally

CFast Push-push type, access externally

Display

Panel Size
19-inch SXGA, 1000 nits LED backlit LCD

Aspect Ratio
5:4

Response Time
5 ms

Contrast Ratio
1000:1

Viewing Angles
  • Horizontal: 170° (left to right)
  • Vertical: 160° (up to down)


Max Colors
16.7 M colors

Resolution
  • VGA: 640 x 480
  • SVGA: 800 x 600
  • XGA: 1024 x 768
  • SXGA: 1280 x 1024



Serial Communication Parameters

Data Bits
5, 6, 7, 8

Stop Bits
1, 1.5, 2

Parity
None, Even, Odd, Space, Mark

Flow Control
RTS/CTS, XON/XOFF

Baudrate
50 bps to 115.2 Kbps


Serial Signals

RS-232
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND

RS-422
TxD+, TxD-, RxD+, RxD-, GND

RS-485-4w
TxD+, TxD-, RxD+, RxD-, GND

RS-485-2w
Data+, Data-, GND


Interface (EXPC-1519-C1-S1/EXPC-1519-C7-S1)

Connector type
On motherboard via cable glands

USB
3 USB 2.0 hosts, Type A connectors

VGA
15-pin D-Sub connector (DB15 female), with resolution up to 2048x1536 pixels with 32-bit color at 75 Hz

Serial Port
2 RS-232/422/485 ports, software-selectable (DB9 male)

Ethernet
2 auto-sensing 10/100/1000 Mbps ports (RJ45)

Optical Fiber
2 multimode 100M fiber optic ports

AC
100 to 240 VAC (3-pin terminal block)

DC 24 VDC (2-pin terminal block)


Interface (EXPC-1519-C1-S2/EXPC-1519-C7-S2)

Connector Type
On terminal block via cable glands

USB
4 USB 2.0 hosts, terminal block

Serial Port
2 RS-232/422/485 ports (terminal block), software-selectable

Ethernet
2 auto-sensing 10/100/1000 Mbps ports (terminal block)

Optical Fiber
2 multimode 100M fiber optic ports

AC
100 to 240 VAC (3-pin terminal block)

DC
24 VDC (2-pin terminal block)

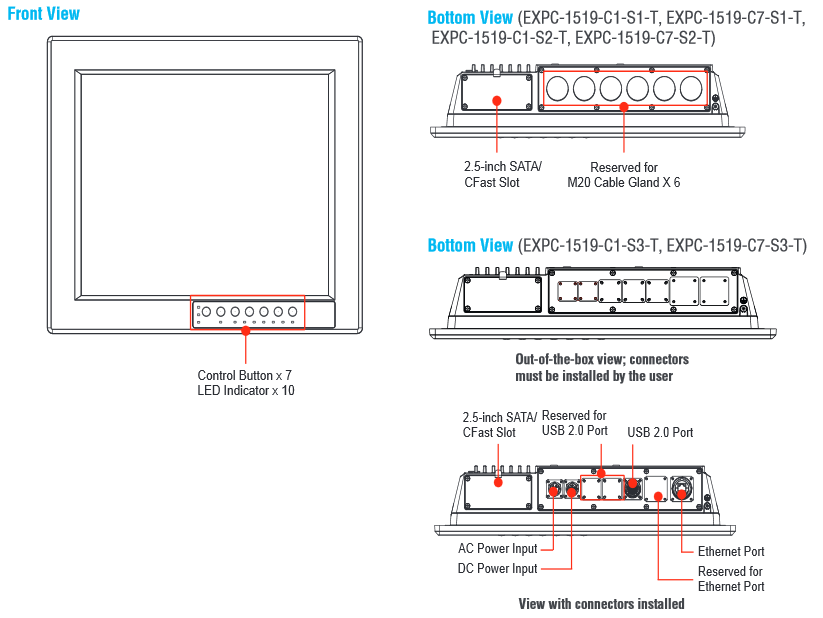

Interface (EXPC-1519-C1-S3/EXPC-1519-C7-S3)

Connector Type
On bottom panel

USB
1 USB 2.0 hosts, Type A connector

Ethernet
1 auto-sensing 10/100/1000 Mbps port (RJ45)

AC
100 to 240 VAC (3-pin terminal block)

DC
24 VDC (2-pin terminal block)


LEDs and Buttons

System LEDs
Power, Fiber1, Fiber2, LAN1, LAN2, Touch, Info, DAY, Dusk, Night

LAN LEDs
100M/Link, 1000M/Link (on each RJ-45 connector)

Buttons
Power, Brightness +/-, Fn, Touch, Info, Brightness mode


Physical Characteristics

Housing
Aluminum

Weight
10.7 kg

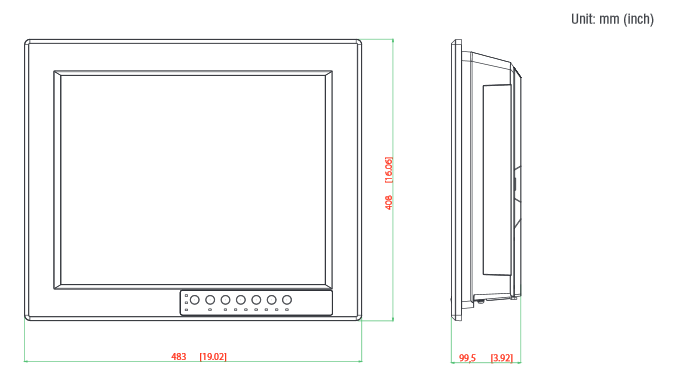

Dimensions
483 x 408 x 99.5 mm (19.02 x 16.06 x 3.92 in)

Mounting
VESA mounting (100 x 100 mm), desktop mounting, yoke mounting, wall mounting, and panel mounting


Environmental Limits

Operating Temperature
-40 to 70°C (-40 to 158°F)

Storage Temperature
-40 to 70°C (-40 to 158°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

Anti-Vibration
2 g rms, 5-500 Hz frequency, compliant with IEC 60068-2-6 standard

Anti-Shock
20 g rms, half sine wave under system operating, 11 ms duration, compliant with IEC 60068-2-27 standard


Power Requirements
Rated Voltage
100 to 240 VAC or 24 VDC (18 to 32 VDC, 2-pin terminal block)

Power Consumption
100 to 240 VAC, 47 to 63 Hz, 1 A (less than 100 W) or 24 VDC, 6 A (less than 150 W)


Standards and Certifications

Safety
UL 60950-1, IEC 60950-1

Hazardous Environments
Class 1 Division 2

EMC
EN 55022/24

EMI
CISPR 22, FCC Part 15B Class A

EMS
  • IEC 61000-4-2 ESD: Contact 4 kV; Air 8 kV
  • IEC 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz)
  • IEC 61000-4-4 EFT: Power 1 kV; Signal 0.5 kV
  • IEC 61000-4-5 Surge: AC Power 2 kV; Signal 1 kV; DC Power 1 kV; Signal 1 kV
  • IEC 61000-4-6 CS: 3 V
  • IEC 61000-4-


Igress Protection Rating
IP66 / NEMA 4X

Green Product
RoHS, cRoHS, WEEE



Available Models

EXPC-1519-C1-S1-T
    Fanless, Zone 2 19-inch 1000 nits LCD panel computer, Intel® Celeron® Processor 1047UE 1.4GHz, cable gland with standard I/O design, projected capacitive touch screen, IP66, -40 to 70°C operating temperature, 2.5” SSD tray and CFast slot

EXPC-1519-C1-S2-T
    Fanless, Zone 2 19-inch 1000 nits LCD panel computer, Intel® Celeron® Processor 1047UE 1.4GHz, cable gland with terminal block I/O design, projected capacitive touch screen, IP66, -40 to 70°C operating temperature, 2.5” SSD tray and CFast slot

EXPC-1519-C1-S3-T
    Fanless, Zone 2 19-inch 1000 nits LCD panel computer, Intel® Celeron® Processor 1047UE 1.4GHz, harsh environment I/O connector, projected capacitive touch screen, IP66, -40 to 70°C operating temperature, 2.5” SSD tray and CFast slot

EXPC-1519-C7-S1-T
    Fanless, Zone 2 19-inch 1000 nits LCD panel computer, Intel® Core™ i7-3555LE Processor 2.5GHz, cable gland with standard I/O design, projected capacitive touch screen, IP66, -40 to 70°C operating temperature, 2.5” SSD tray and CFast slot

EXPC-1519-C7-S2-T
    Fanless, Zone 2 19-inch 1000 nits LCD panel computer, Intel® Core™ i7-3555LE Processor 2.5GHz, cable gland with terminal block I/O design, projected capacitive touch screen, IP66, -40 to 70°C operating temperature, 2.5” SSD tray and CFast slot

EXPC-1519-C7-S3-T
    Fanless, Zone 2 19-inch 1000 nits LCD panel computer, Intel® Core™ i7-3555LE Processor 2.5GHz, harsh environment I/O connector, projected capacitive touch screen, IP66, -40 to 70°C operating temperature, 2.5” SSD tray and CFast slot
