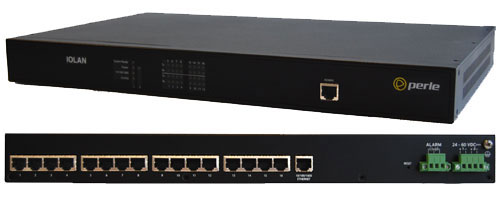

PERLE IOLAN SDSC LDC

Rugged Console Server for Telecommunication Facilities

PERLE IOLAN SDSC LDC
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • 8, 16 and 32 serial ports on RJ45 – software selectable RS232/422/485
  • Dual input 18 – 72v DC ( 48v DC nominal ) range
  • NEBS Level 3 certified ( SR-3580 ), GR-1089-CORE, GR-63-CORE
  • Advanced Security including TACACS and RADIUS authentication
  • Dual 10/100/1000 Ethernet with Redundant Path Technology

Telecommunication equipment engineers and project managers require a cost effective serial-to-Ethernet solution to monitor and manage network equipment which is often installed in lights-out data centres, distant POP sites, and co-location facilities. IOLAN SDSC LDC Console Servers are certified to meet harsh telecommunications environments addressed by the Telcordia Network Equipment Building Standard (NEBS) Level 3 standard.

Ideal for

  • Telecommunications engineers and project managers requiring a high performance serial to ethernet solution for access to serial based console ports on network equipment
  • Telecommunication facilities that require an out-of-the-band management solution with advanced security features and NEBS Level 3 certification


Why IOLAN SDSC LDC Console Servers are the preferred choice:

  • NEBS Level 3 certified by an industry approved testing house
  • Supports a wide voltage range of 18 – 72vDC required in 48vDC telecommunications facilities
  • Dual feed voltage input for fault tolerant access to DC power
  • Advanced Security features:
    • TACACS+, RADIUS for centralized authentication, authorization and accounting
    • Two factor strong authentication such as RSA’s SecureID
    • FIPS 140-2 – Cryptographic modules meet US Government NIST compliancy
    • HTTPS, SSL/TLS, SSH ( AES, 3DES ) session encryption
    • Keystroke and data logging
  • Cisco RJ45 serial port pinout design enables simple connection to Cisco/SUN console ports using common “rolled” CAT5 cabling
  • High performance 400 Mhz, 750 MIPS, 32 bit processor with integrated encryption processor for the best throughput in the market.
  • EasyPort Web – Access equipment serial console ports by using your Internet browser
  • Java-free browser access to remote serial console ports via Telnet and SSH
  • Lifetime warranty – best investment protection available


ProdGrafik

Serial Port Access

    Connect directly using Telnet / SSH by port and IP address
    Connect with EasyPort menu by Telnet / SSH
    Use an internet browser to access with HTTP or secure https via EasyPort Web menu
    Java-free browser access to remote serial console ports via Telnet and SSH
    Ports can be assigned a specific IP address ( aliasing )
    Multisession capability enables multiple users to access ports simultaneously
    Multihost access enables multiple hosts/servers to share serial ports


Accessibility

    In-band ( Ethernet ) and out-of-band ( dial-up modem ) support
    Dynamic DNS enables users to find a console server from anywhere on the Internet
    Domain name control through DHCP option 81
    IPV6 and IPV4 addressing support


Availability

    Primary/Backup host functionality enables automatic connections to alternate host(s)


Security

    SSH v1 and v2
    SSL V3.0/TLS V1.0, SSL V2.0
    SSL Server and SSL client mode capability
    SSL Peer authentication
    IPSec VPN : NAT Traversal, ESP authentication protocol
    Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
    Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
    Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
    X.509 Certificate verification: RSA, DSA
    Certificate authority (CA) list
    Local database
    RADIUS Authentication, Authorization and Accounting
    TACACS+ Authentication, Authorization and Accounting
    LDAP, NIS, Kerberos Authentication
    RSA SecureID-agent or via RADIUS Authentication
    SNMP v3 Authentication and Encryption support
    IP Address filtering
    Disable unused daemons
    Active Directory via LDAP


Terminal Server

    Telnet
    SSH v1 and v2
    Rlogin
    Auto session login
    LPD, RCP printer
    MOTD - Message of the day


Serial machine to Ethernet

    Tunnel raw serial data across Ethernet - clear or encrypted
    Raw serial data over TCP/IP
    Raw serial data over UDP
    Serial data control of packetized data
    Share serial ports with multiple hosts/servers
    Virtual modem simulates a modem connection - assign IP address by AT phone number
    Virtual modem data can be sent over the Ethernet link with or without SSL encryption
    TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX.
    TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity
    RFC 2217 standard for transport of serial data and RS232 control signals
    Customizable or fixed serial baud rates
    Plug-ins allow customer or Perle provided plug-ins for special applications
    Software Development Kit ( SDK ) available
    Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101
    ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP
    Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port


Console Management

    Sun / Oracle Solaris Break Safe
    Local port buffer viewing - 256K bytes per port
    External port buffering via NFS, encrypted NFS and Syslog
    Event notification
    Manage AC power of external equipment using Perle RPS power management products
    Clustering - central console server enables access ports across multiple console servers
    Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console
    Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear


Remote Access

    Dial, direct serial
    PPP, PAP/CHAP, SLIP

    HTTP tunneling enables firewall-safe access to remote serial devices across the internet

    Automatic DNS Update
    Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details

    IPSEC VPN client/servers
    Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
    Microsoft IPSEC VPN Client ( native to Windows Vista )
    Cisco routers with IPSEC VPN feature set
    Perle IOLAN SDS/STS and SCS models


OA&M ( Operations, Administration and Management )

    SNMP V3 - read and write, Perle MIB
    Syslog
    Perle Device Manager - Windows based utility for large scale deployments
    Configurable default configuration
    Installation Wizard
    Set a Personalized Factory Default for your IOLANs


Protocols

    IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, https, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP



Hardware Specifications - IOLAN LDC Console Servers


  SDS8C LDC SDS16C LDC SDS32C LDC
Processor MPC8349E, 400 Mhz, 750 MIPS
Memory
RAM MB 64 64 64
Flash MB 16 16 16
Interface Ports
Number of Serial Ports 8 16 32
Serial Port Interface Software selectable RS232 / RS485 / RS422 DTE on RJ45 - RS485: full and half duplex
Sun / Solaris Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds 50bps to 230Kbps with customizable baud rate support
Data Bits 5,6,7,8, 9-bit protocol support
Parity Odd, Even, Mark, Space, None
Flow Control Hardware, Software, Both, None
Local Console Port RS232 on RJ45 with DB9 adapter ( provided )
Network Dual 10/100/1000-base TX Ethernet RJ45
Software selectable Ethernet speed 10/100/1000, Auto
Software selectable Half/Full/Auto duplex
Failsafe Alarm Relay 3A@24v DC. Normally open contacts closed by IOLAN when active and opened upon alarm condition or power failure
Power
Power Supply Plugable Terminal Blocks with screw terminals accommodating 28 - 12 AWG wire sizes
Nominal Input Voltage 24v DC / 48v DC
Input Voltage Range 18 - 72v DC
Current Consumption @ 18v DC (Amps) 0.4 0.55 0.85
Current Consumption @ 24v DC (Amps) 0.3 0.4 0.65
Current Consumption @ 48v DC (Amps) 0.2 0.25 0.35
Current Consumption @ 72v DC (Amps) 0.15 0.18 0.25
Typical Power Consumption (Watts) 11 13 18
Chassis Ground Grounding screw for a #10 ring terminal
Indicators
LEDs Power
System Ready
Network Link activity
Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output ( BTU/HR ) 37.6 44.4 61.5
MTBF ( Hours )* 126,302 105,495 82,402
Operating Temperature -40C ambient for 16 hours and +70C ambient for 16 hours without use of fans
Storage Temperature -40C to 85C, -40F to 185F
Humidity 5 to 95% (non condensing) for both storage and operation.
Case SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating IP30
Mounting
1U - 19" rack, front and rear mounting hardware included.
DIN Rail mounting kit optional
Product Weight and Dimensions
Weight 3.16 kg 3.18 kg 3.36 kg
Dimensions 1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in)
Packaging
Shipping Weight 3.96 kg 3.98 kg 4.16 kg
Shipping Dimensions 59 x 36 x 9 (cm), 23 x 14 x 3.5 (in)
Regulatory Approvals
Network Equipment Building Systems ( NEBS ) SR-3580 NEBS Level 3
GR-1089-CORE : NEBS EMI and Safety
GR-1089-CORE per Verizon VZ.TPR.9205 and ATT-TP-76200
GR-63-CORE: NEBS Physical Protection
GR-63-CORE / ANSI T1.319 per Verizon VZ.TPR.9305 and ATT-TP-76200
Emissions Power Line conducted: IEC 61850-3 Sec 5.8
CISPR 32:2015/EN 55032:2015 (Class A)
Telecom Line conducted: IEC 61000-6-4
Radiated: IEC 61850-3 Sec 5.8
CISPR 24:2010/EN 55024:2010
EN61000-3-2 : 2010 Limits for Harmonic Current Emissions
EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker
EMC Interface Immunity IEC 61850-3 ( substations )
IEEE 1613 ( substations ) (C37.90.x )
Applies to all ports, signal and power connections
ESD: IEC61000-4-2, 8Kv Contact / 15Kv Air
Radiated RFI: IEC61000-4-3, 20 V/m ( 80M-1G )
Fast Transients / Burst: IEC61000-4-4, 4Kv Mains , I/O
Surge : IEC61000-4-5
4Kv AC line to Gnd, 2Kv AC Line to Line,
2Kv DC line to Gnd, 1 Kv DC Line to Line,
RS232 = balanced, ethernet = unbalanced
Conducted RF: IEC61000-4-6, 10 Vrms
Magnetic Field: IEC61000-4-8, 100 A/m, 1000 A/m (1 sec)
Dips and Interrupts: IEC61000-4-11, Criteria A/B/C
Oscillatory: EN61000-4-12, 2.5Kv common and differential mode
Low Frequency conducted: EN61000-4-16, 30V 60s, 300V 1s,15Hz-150KHz @ level 3
Standard Safety Certifications IEC 60950-1(ed 2); am1, am2 and
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
NEBS GR-1089-CORE ISSUE 4 ( Level 3, Type 2 and Type 4 )
Other Reach, RoHS and WEEE Compliant
Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012
CCATS - G168387
ECCN - 5A992
HTSUS Number: 8471.80.1000
Perle Lifetime Warranty
Serial Connector Pinout

IOLAN DTE

RJ45Socket

RJ45 Socket

 IOLAN RJ45 Socket   Direction   RS232   RS422   RS485 Full Duplex   RS485 Half Duplex
1 right arrow RTS TXD+ TXD+ Data+
2 right arrow DTR
3 right arrow TXD TXD- TXD- Data-
4 --- GND GND GND GND
5 --- GND GND GND GND
6 left arrow RXD RXD+ RXD+
7 left arrow DSR
8 left arrow CTS RXD- RXD-

A "rolled" CAT5 cable will automatically perform DTE to DCE crossover

>Optional Perle adapters for use with straight thru CAT5 cabling


*Calculation model based on MIL-HDBK-217-FN2 @ 30 °C




TCP

Using RAW TCP Sockets

A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices. TCP sessions can be initiated either from the TCP server application or from the Perle IOLAN serial-Ethernet adapter.


UDP

Using Raw UDP Sockets

For use with UDP based applications, Perle IOLANs can convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.


Console Server

Console Management

For access to remote console ports on routers, switches,etc, Perle IOLAN’s enable administrators secure access to these RS232 ports via inband Reverse Telnet / SSH or out of band with dial-up modems. Perle IOLAN models with integrated modems are available.


COM/TTY

Connect Serial-based Applications with a COM/TTY Port Driver

Serial ports can be connected to network servers or workstations running Perle's TruePort software operating as a virtual COM port. Sessions can be initiated either from the Perle IOLAN or from TruePort.


Tunneling

Serial Tunneling between two Serial Devices

Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling (typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client).


Virtual Modem

Virtual Modem (Ethernet Modem)

Enables the serial-Ethernet adapter to simulate a modem connection. When connected to the IOLAN and initiates a modem connection, the IOLAN starts up a TCP connection to another IOLAN serial-Ethernet adapter configured with a Virtual Modem serial port or to a host running a TCP application.





Ordering Information

           Available Modules
IOLAN SDS8C LDC
Utility Terminal Server
8 x RJ45 serial ports, 24/48 VDC power, 10/100/1000 Ethernet,
1U rack mount, Software selectable RS232/422/485 interface,
Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3,
IEEE 1613 electric power substation environmental standard, Certified for NEBS Level 3
IOLAN SDS16C LDC
Utility Terminal Server
16 x RJ45 serial ports, 24/48 VDC power, 10/100/1000 Ethernet,
1U rack mount, Software selectable RS232/422/485 interface,
Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3,
IEEE 1613 electric power substation environmental standard, Certified for NEBS Level 3
IOLAN SDS32C LDC
Utility Terminal Server
32 x RJ45 serial ports, 24/48 VDC power, 10/100/1000 Ethernet,
1U rack mount, Software selectable RS232/422/485 interface,
Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3,
IEEE 1613 electric power substation environmental standard, Certified for NEBS Level 3



Kunder, der kiggede på dette produkt, kiggede også på
Accept all Reject Configure

This website uses cookies to provide the best possible experience. More information.
