MOXA ioLogik E1213
Ethernet remote I/O with 2-port Ethernet switch, 8 DIs, 4 DOs, 4 DIOs, source-type DO
- User-definable Modbus/TCP Slave addressing
- 2-port Ethernet switch for daisy-chain topologies
- Save time and wiring cost with peer-to-peer communications
- Active communications with MX-AOPC UA Server
- Supports SNMPv1/v2c
- Easy mass deployment and configuration with ioSearch utility
- Friendly configuration via web browser
- Simplify I/O management with MXIO library on either a Windows or Linux platform
- Class I Division 2, ATEX Zone 2 certification
- Wide operating temperature range: -40 to 75°C (-40 to 167°F)
Daisy-chained Ethernet I/O Connection
A new daisy-chained Ethernet I/O concept is now available. The ioLogik E1210 industrial Ethernet remote I/O has two embedded Ethernet switch ports that allow information to flow to another local Ethernet device or connect to the next ioLogik in the daisy-chain.
Applications such as factory automation, security and surveillance systems, and tunnel monitoring, can make use of daisy-chained Ethernet for building multi-drop I/O networks over standard Ethernet cables. Many industrial automation users are familiar with the multi-drop configuration typically used in fieldbus applications. The daisy-chain function on the Ethernet remote I/O ioLogik E1210 not only increases the connection between machines and panels, but also lowers the cost of buying separate Ethernet switches, and at the same time reduces labor fees and cabling by a large percentage. For example, if a production facility contains 700 stations (20 points per station), the wiring cost reduction can reach 15% of the total implementation cost.
Saving Time and Wiring Costs with Peer-to-Peer Communications
In remote automation applications, the control room and sensors are often far removed, making wiring over long distances a constant challenge. With peer-to-peer networking, users may now map a pair of ioLogik E1200 series modules so that input values will be directly transferred to output channels, greatly simplifying the wiring process and reducing wiring costs.
User-definable Modbus/TCP Addressing for Painless Upgrading of Existing Systems
For Modbus devices that are controlled and detected by fixed addresses, users need to spend a vast amount of time researching and verifying the configurations. Users need to locate each device’s networking details like I/O channels, or vendor-defined addresses to enable the initial or start address of a SCADA system or PLC. The ioLogik E1200, with user-definable Modbus/TCP addressing, offers greater flexibility, and setup is easy. Instead of worrying about individual devices, users simply configure the function and address map to fit their needs.
A new daisy-chained Ethernet I/O concept is now available. The ioLogik E1210 industrial Ethernet remote I/O has two embedded Ethernet switch ports that allow information to flow to another local Ethernet device or connect to the next ioLogik in the daisy-chain.
Applications such as factory automation, security and surveillance systems, and tunnel monitoring, can make use of daisy-chained Ethernet for building multi-drop I/O networks over standard Ethernet cables. Many industrial automation users are familiar with the multi-drop configuration typically used in fieldbus applications. The daisy-chain function on the Ethernet remote I/O ioLogik E1210 not only increases the connection between machines and panels, but also lowers the cost of buying separate Ethernet switches, and at the same time reduces labor fees and cabling by a large percentage. For example, if a production facility contains 700 stations (20 points per station), the wiring cost reduction can reach 15% of the total implementation cost.
Saving Time and Wiring Costs with Peer-to-Peer Communications
In remote automation applications, the control room and sensors are often far removed, making wiring over long distances a constant challenge. With peer-to-peer networking, users may now map a pair of ioLogik E1200 series modules so that input values will be directly transferred to output channels, greatly simplifying the wiring process and reducing wiring costs.
User-definable Modbus/TCP Addressing for Painless Upgrading of Existing Systems
For Modbus devices that are controlled and detected by fixed addresses, users need to spend a vast amount of time researching and verifying the configurations. Users need to locate each device’s networking details like I/O channels, or vendor-defined addresses to enable the initial or start address of a SCADA system or PLC. The ioLogik E1200, with user-definable Modbus/TCP addressing, offers greater flexibility, and setup is easy. Instead of worrying about individual devices, users simply configure the function and address map to fit their needs.

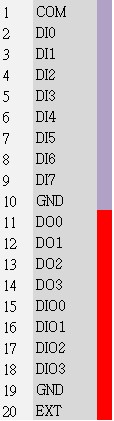

Inputs and Outputs
- Digital Inputs
8 channels
Digital Outputs
4 channels
Configurable DIOs (by jumper)
4 channels
Isolation
3k VDC or 2k Vrms
Digital Input
- Sensor Type
- On: short to GND
- Off: open
- On: 10 to 30 VDC
- Off: 0 to 3 VDC
Wet Contact (NPN or PNP), Dry Contact
I/O Mode
DI or Event Counter
Dry Contact
Wet Contact (DI to COM)
Common Type
12 points per COM
Counter Frequency
250 Hz
Digital Filtering Time Interval
Software configurable
Digital Output
- Type
Source
I/O Mode
DO or Pulse Output
Pulse Output Frequency
500 Hz
Over-Voltage Protection
41 VDC
Over-current Protection
1.5 A per channel @ 25°C
Over-Temperature Shutdown
175°C (typical), 150°C (min.)
Current Rating
500 mA per channel
Power Requirements
- Output Voltage Rating
15 to 30 VDC (12 or 9 VDC configurable by jumper on the 4 DO channels)
Input Voltage
12 to 36 VDC
Input Current
130 mA @ 24 VDC
MTBF (mean time between failures)
- Time
715,256 hrs
Standard
Telcordia SR332
LAN
- Ethernet
2 switched 10/100 Mbps RJ45 ports
Protection
1.5 kV magnetic isolation
Protocols
Modbus/TCP (slave), TCP/IP, UDP, DHCP, BOOTP, HTTP
Physical Characteristics
- Wiring
I/O cable max. 14 AWG
Dimensions
27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
Weight
Under 200 g (0.44 lb)
Mounting
DIN rail or wall
Environmental Limits
- Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Altitude
Up to 2000 m
Note:
Please contact us if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
- Safety
UL 508
EMC
EN 55022, EN 55024
EMI
CISPR 22, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Hazardous Location
Class 1 Division 2, ATEX Zone 2
Green Product
RoHS, CRoHS, WEEE
Note:
Please check Moxa’s website for the most up-to-date certification status.
Ordering Information
Available Modules | |
ioLogik E1213 | Ethernet Remote I/O with 2-port Source Type Ethernet switch and 8 DIs, 4 DOs, and 8 DIOs |
ioLogik E1213 -T | Ethernet Remote I/O with 2-port Source Type Ethernet switch and 8 DIs, 4 DOs, and 8 DIOs, -40 to 75°C operating temperature |
