MOXA VPort 461A

Superior video performance, 1-channel H.264/MJPEG industrial video encoders

MOXA VPort 461A
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Supports up to 3 video streams simultaneously for H.264 and MJPEG

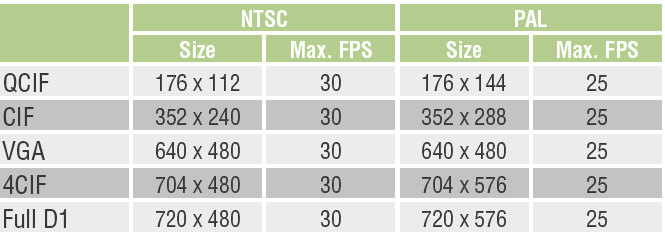

  • Up to Full D1 resolution (720 x 480) @ 90 FPS for 3 video streams with legacy analog video images
  • Video latency under 200 ms Industrial IP Surveillance for Mission-Critical Applications
  • 2 Ethernet ports for cascade and Ethernet port redundancy
  • Moxa DynaStream™ function support for network efficiency
  • ONVIF support for standardization and interoperability
  • Local storage capability with SD card slot
  • Industrial design with -40 to 75°C operating temperature
The VPort 461A 1-channel industrial video encoder with H.264 video compression algorithm provides the best video quality on the market, but with a smaller bandwidth requirement than other video compression standards. In addition, to meet various video stream requirements, the VPort 461A can provide up to 3 video streams simultaneously using H.264 and MJPEG compression formats. Video streams can be used for different purposes, such as viewing,recording, and analyzing. In addition, the industrial rugged design, which includes a -40 to 75°C operating temperature, IP30 protection, and industrial certifications, make the VPort 461A suitable for harsh environments.

The VPort 461A is equipped with Moxa’s innovative DynaStream™ technology to reduce bandwidth consumption of your video transmissions when the network is over-loaded by automatically decreasing the video frame rate. DynaStream™ can also increase video FPS when emergencies occur, offering total control of bandwidthusage to network administrators.
ProdGrafik
Video

    Video Compression
    H.264 (MPEG4 part 10), MJPEG

    Video Inputs
    1 (BNC connector)

    Video Output
    via Ethernet

    Video Streams
    3, H.264 or MJPEG video streams

    NTSC/PAL
    Auto-sensing or manual

    Video Viewing
    • DynaStream™ support for changing the video frame rate automatically
    • Adjustable image size and quality
    • Timestamp and text overlay
    • Maximum of 10 simultaneous unicast connections, 50 multicast clients
    • CBR Pro™ support for accurate streaming bit rate control
    • Image manipulation: 180° rotation
    • Image tuning: control brightness, contrast, saturation


Audio

    Audio Inputs

    1 Line-in or mic-in with 3.5 mm phone jack

    Audio Outputs
    1 Line-out with 3.5 mm phone jack

    Audio Format
    Mono, PCM (G.711)


Network

    Protocols
    IPv4/v6, UDP, HTTP, SMTP, FTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS (ToS), SNMP V3, DDNS, Modbus/TCP, 802.1X, SSH/HTTPS

    Ethernet
    2 10/100BaseT(X) Ethernet ports, RJ45 connector


Serial Port

    PTZ Ports
    1 RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps

    COM Ports
    1 RS-232 or 485 port, DB9 male connector, 115.2 kbps

    Console Port
    1 RS-232 port, RJ45 connector


Local Storage

    SD Socket
    Standard SD socket, V2.0 (SDHC)


GPIO

    Digital Inputs
    2, max. 8 mAHigh: +13 to +30 V; Low: -30 to +3 V

    Relay Outputs
    2, max. 24 VDC @ 1 A


LED Indicators

    STAT
    Indicates if system is booted up properly or not

    PWR1
    Power 1

    PWR2
    Power 2

    FAULT
    Can be configured to correspond to system alarm, power failure, or disconnected network

    VIDEO
    Video input signal

    PTZ
    Indicates if PTZ or COM port data has been transmitted

    SD
    Indicates if SD card was mounted successfully


Power Requirements

    Input Voltage
    12 to 32 VDC, or 18 to 30 VAC

    Input Current
    0.85 A @ 12 VDC; 0.3 A @ 32 VDC; 0.85 A @ 18 VAC; 0.56 A @ 30 VAC


Physical Characteristics

    Housing
    Metal, IP30 protection

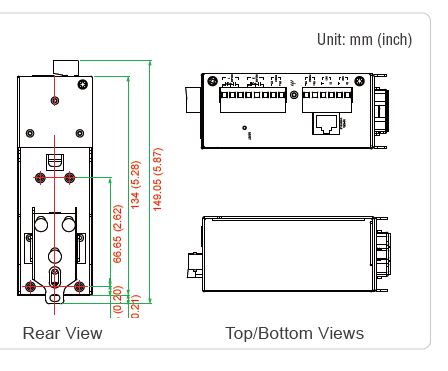

    Dimensions
    46 x 134 x 105 mm (1.81 x 5.31 x 4.13 in)

    Weight
    710 g (1.57 lb), including DIN-rail mounting kit

    Installation
    DIN-rail mounting (standard), wall mounting (optional)


Alarms

    Intelligent Video
    Camera tampering

    Video Motion Detection
    Includes sensitivity tuning

    Scheduling
    Daily repeat timing schedule

    Imaging
    JPEG snapshots for pre/trigger/post alarm images

    Custom Alarms
    HTTP event servers and CGI events for setting customized alarm actions

    Email/FTP Messaging
    Automatic transfer of stored images via email or FTP with event-triggered actions

    Pre-alarm Buffer
    50 MB for JPEG snapshot images


PTZ (Pan/Tilt/Zoom)

    PTZ Camera Control
    Via PTZ port or COM port

    PTZ Control Functions
    Pan, tilt, zoom, focus, moving speed, preset position (max. 128 positions)

    PTZ Function Updates
    Driver upload supported

    Supported Device Protocols
    Pelco D, Pelco P, Custom Camera


Security

    Password
    User level password protection

    Filtering
    By IP address

    Authentication
    802.1X

    Encryption
    HTTPS, SSH


Environmental Limits

    Operating Temperature
    Standard Models: -25 to 60°C (-13 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

    Storage Temperature
    -40 to 85°C (-40 to 185°F)

    Ambient Relative Humidity
    5 to 95% (non-condensing)

    Vibration
    IEC 60068-2-6, 2 to 13.2 Hz: 2 mm (peak-peak); 13.2 to 100 Hz: 0.7g; 1.50 hrs/axis
    IEC 60068-2-6, 3 to 9 Hz: 7 mm (peak-peak); 9 to 150 Hz: 1.0g; 1.86 hrs/axis

    Shock
    IEC 60068-2-27, 20g/11ms

    Altitude
    2000 m

    Ingress Protection
    IEC 60529, IP30


Standards and Certifications

    Safety
    UL 60950-1

    EMC
    EN 55022/24

    EMI
    CISPR 22, FCC Part 15B Class A

    EMS
    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8
    IEC 61000-4-11

    Transportation
    NEMA TS2


MTBF (mean time between failures)

    Time
    647,088 hrs

    Standard
    Telcordia SR332


Minimum Viewing System Requirements

    CPU
    Pentium 4, 2.4 GHz or above

    Memory
    512 MB memory or above

    OS
    Windows XP/2000 with SP4 or above, Windows Vista, Windows 7

    Browser
    Internet Explorer 9.x or above

    Multimedia
    DirectX 9.0c or above


Software Development

    VPort SDK PLUS
    Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (the latest version of SDK is available for download from Moxa’s website).

    Standard
    ONVIF, Profile S



Ordering Information
Available Models
VPort 461A 1-channel H.264/MJPEG industrial video encoder with 2 10/100BaseT(X) ports, -25 to 60°C operating temperature
VPort 461A-T 1-channel H.264/MJPEG industrial video encoder with 2 10/100BaseT(X) ports, -40 to 75°C operating temperature
Optional Accessories (can be purchased separately)
  • DIN Rail Power Supplies
MDR-40-24 40W/1.7A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input , -20 to 70°C operating temperature
MDR-60-24 60W/2.5A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -20 to 70°C operating temperature
  • IP Surveillance Software
SoftNVR-IA 64-channel IP video surveillance software designed for industrial automation systems
  • Other Accessories
DR-4524/75-24/120-24 45/75/120 W DIN-Rail 24 VDC power supplies
  • Mounting Kits
WK-46 Wall Mounting Kit
RK-4U 4U-high 19" rack mounting kit
