Advantech BB-485HESP

RS-485 Surge Protector

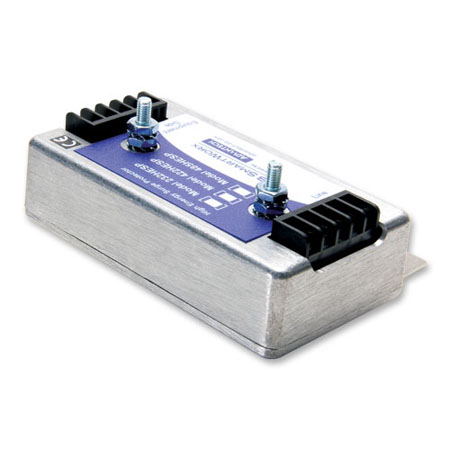

Advantech BB-485HESP
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Three stages of protection on every data line
  • 1) Gas discharge tube
  • 2) Series resistor
  • 3) Transient voltage suppressor
  • Protected signal ground connection
  • Rugged terminal block connections
  • Dedicated chassis ground lug
These three-stage surge protectors meet IEEE 1000-4-5: 1995 and IEEE C62.41-1991 recognized standards for premium surge protectors. It protects against lightning strikes, power surges, and other types of voltage disturbances with three stages of protection for each supported line: a gas discharge tube followed by a series resistor and finally a Transient Voltage Suppresser (TVS). Three RS-422/485 signals on terminal blocks are supported with a clamping voltage of approximately 6.8 Volts.

These surge protectors housed in a tough metal, panel mount case with a protected signal ground connection and dedicated chassis ground lug.In order to work properly, it is important to have a good connection between the #10 screws and a solid earth ground. The BB-485HESP provides two terminal posts and two metal mounting brackets to provide a good ground connection.

ProdGrafik

Connector
Terminal Block

Interface
RS-232 RS-485

Temperature (Storage)
-40~85°C (40~185 °F)

Humidity
0 ~ 95%, non-condensing

Temperature (Operating)
0 ~ 70° C (32 ~ 158° F)
