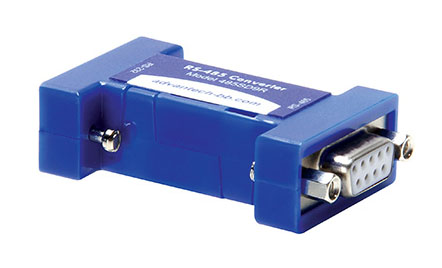

Advantech BB-485SD9R

Port-Powered RS-232 to DB-9 RS-485 Converter

Advantech BB-485SD9R
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Extend RS-232 data signals up to 1.2 km (4,000 ft.)
  • Change RS-232 TD and RD to RS-485 signals
  • Automatic Send Data Control - no software drivers necessary
  • Baud rates up to 115.2 kbps
  • Powered from RS-232 handshake lines - no power supply required
These port-powered, two channel converters allow your computer to communicate longer distances by converting TD and RD RS-232 lines to RS-485 signals. RS-485 also provides multi-drop capability.

All converters feature Automatic Send Data Control which enables the driver when data is present on the RS-232 side. Control of the driver is automatic at speeds up to 115.2 kbps.

Converters are powered by the RS-232 port DTR and RTS handshake lines. The unit is powered from the RS-232 data and handshake lines whether the lines are high or low. If the handshake lines are asserted (held High), and no termination is used, the port power efficiency is greatly increased.

ProdGrafik

    SPECIFICATIONS



SERIAL TECHNOLOGY

    Data Rate
    115.2 kbps maximum

    RS-232
    Connector DB9 female

    RS-485
    Connector DB9 female

    Biasing Resistors
    4.7k Ohms



POWER

    Source
    Port-powering: from RS-232 handshake lines.
    External power option, 12-16 VDC (485SD9TB only)

    Power Connector
    Terminal block (485SD9TB only)

    Input Voltage
    12 VDC (485SD9TB only)

    Power Consumption
    40mA maximum

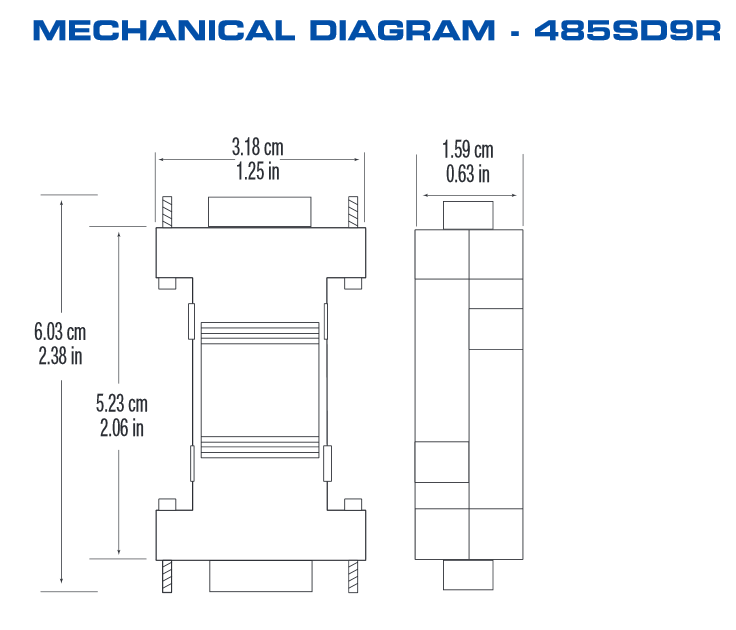

MECHANICAL

    Dimensions
    6.0 x 3.2 x 1.6 cm (2.4 x 1.3 x 0.6 in)

    Enclosure
    plastic

    Weight
    0.18 lbs (81.6 g)

    MTBF
    986473

    MTBF Calc. Method
    Parts Count Reliability Prediction



ENVIRONMENTAL

    Operating Temperature
    0 to +70 °C (+32 to +158 °F)

    Storage Temperature
    -40 to +85 °C (-40 to +185 °F)

    Operating Humidity
    0 to 95% non condensing



APPROVALS / CERTIFICATIONS - 485SD9R

    FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class B Emissions
    CE
    EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-Industrial Environments
    EN 61000-4-2: 2009 Electro-Static Discharge (ESD)
    EN 61000-4-3: 2006 +A1 +A2 +IS1 Radiated Field Immunity (RFI)
    EN 61000-4-4: 2012 Electrical Fast Transients-Burst Immunity (EFT)
    EN 61000-4-6: 2009 Conducted Immunity




Model 485SD9R Pin-Outs
Signal DB9S Pin #
Data A (-) 2 or 8
Data B (+) 3 or 7
Signal Ground 4 or 6
