Advantech BB-WSD1XV0

Wireless Mesh 802.15.4e Integrated Accelerometer; Internal Antenna

Advantech BB-WSD1XV0
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Ultra low power 802.15.4e SmartMesh IP technology
  • Communicates with Spectre Network Gateway via highly scalable and reliable wireless mesh networks
  • Integrated accelerometer
  • Wzzard app lets you read or configure the nodes using Android tablets and smart phones
  • Rugged, IP66-rated, fiber reinforced polyester PBT enclosure
  • MQTT and JSON IoT protocol to application platform
  • Class 1 DIV 2 approved for hazardous locations
The Wzzard platform uses mesh networking and time-synchronized channel hopping to provide up to 99.999% connectivity, even in the most demanding RF environments. New nodes may be added at any time, and the SmartMesh IP network will dynamically self-configure as new nodes are added or removed. This is a function of the mesh network itself, and does not need to be controlled by the network gateway.

ProdGrafik

SPECIFICATIONS


POWER

    Internal
    (2) 3.6V 2400 mAH Lithium Thionyl Chloride AA batteries

    Battery Life
    Multiyear based on 1 min sensor sampling and reporting

    Optional External Input Voltage
    3.3 VDC +/- 5%


MECHANICAL

    Physical Connection
    M12 Connector
    1/2” (12.7 mm) Conduit, sensor interface cable included; 8 wire, 26 gage, 6 ft. (1.8 m)

    Sensor Inputs
    Analog Input (0 - 5 VDC, 0 – 20 mA, 4 – 20 mA)
    Digital Input (0-48 VDC)
    Digital Input Frequency 1-1K Hz (Accuracy + or – 1 Hz)
    Digital Input Counter
    Integrated Accelerometer 3 Axis
    Integrated Temperature
    Thermocouple J, K Type
    Digital Output (0-30 VDC)

    Optional External Antenna
    RP-SMA, Omnidirectional, 3.8 dBi, 2.4 GHz

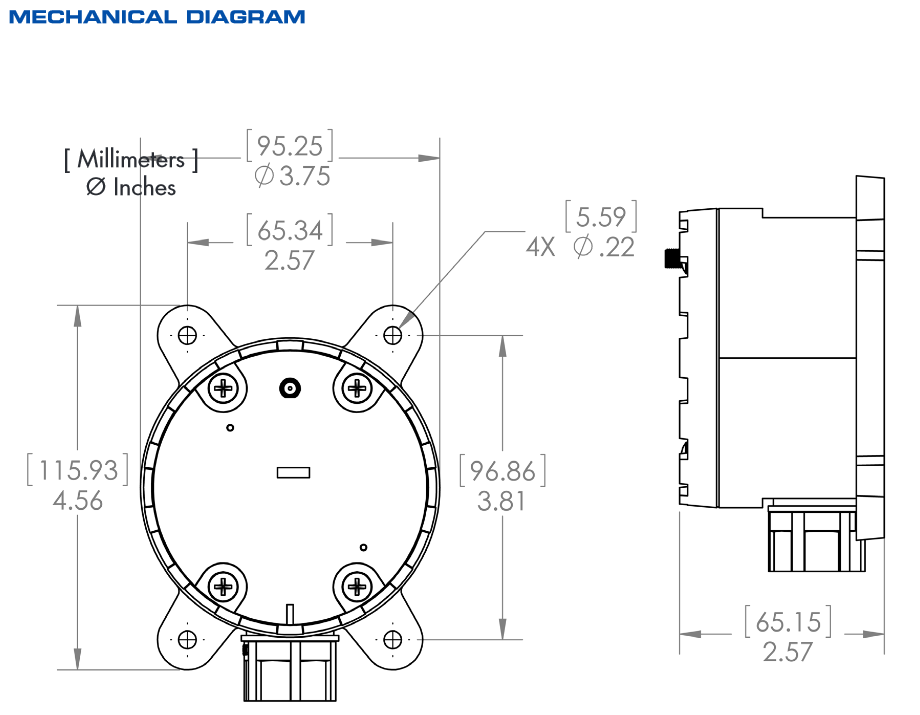

    Dimensions 7.64 inches (194 mm)

    Mounting
    Magnetic mounting via internal magnet
    Pull force 4.7 lbs (2.13 kg)
    (4) Mounting ears, M5 (#10)

    Enclosure
    IP66-rated, fiber reinforced polyester PBT

    Weight
    0.75 lbs (0.34 kg)


TECHNOLOGY

    Wireless
    802.15.4e, SmartMesh IP

    Protocols
    MQTT-SN, MQTT, JSON

    Bluetooth
    Bluetooth 4.0 Low Energy (LE)

    LED
    Network Connectivity


ENVIRONMENTAL

    Installation
    Indoor or outdoor

    Operating Temperature


    -40 to 80°C (-40 to 176°F)

    Storage Temperature


    -40 to 85°C

    Operating Humidity
    0 to 95% Non-condensing


WIRELESS SECURITY

    Device Authentication
    128 bit AES-based encryption with multiple keys
    Message integrity check (MIC)
    Synchronized key changeovers
    Customized key rotation




SENSOR INTERFACE SPECIFICATIONS


DIGITAL INPUTS

    Voltage range
    0 – 48 VDC

    V IL
    0.97 V Maximum

    V IH
    1.8 V Minimum

    Pull up current
    32uA

    Type
    Sourcing (PNP)/Sinking (NPN) Software selectable input

    Isolation
    None


RATE/FREQUENCY INPUTS

    Frequency
    Does a 1 second measurement at each measurement/publish interval
    Digital Input Frequency 1-1K Hz (Accuracy + or – 1 Hz)
    Uses the falling edge or rising edge based on the Invert Enabled setting


COUNTER INPUT

    Channels
    Actively counts either the falling edge (Invert enabled) or rising edge (Invert disabled)
    Can use a multiplier to convert to a unit type or count
    2 selectable/shared with Digital inputs
    Rolls over at 999999.9


ANALOG INPUTS

    Input ranges
    0 - 5 VDC, 0 – 20 mA, 4 – 20 mA

    Resolution
    12 bit

    Input load resistance
    100 Mega ohm (0-5VDC), 250 ohm (0 - 20 ma)

    Accuracy
    Voltage: 0.10% of full scale reading, 0.20% max.
    Current: 0.11% of full scale reading, 0.24% max.


THERMOCOUPLE INPUT

    Types Supported
    J and K

    Ranges Supported
    Type J -210 to +1,200 °C
    Type K -270 to +1,372 °C

    Resolution
    0.25 °C

    Accuracy
    Typical +/- 2 °C
    +/- 6 °C over the temperature range of -40 to 80 °C


DIGITAL OUTPUTS

    Voltage range
    0 - 30 VDC

    Output Type
    Open Drain

    Output Current
    Not to be less than 100ma

    Protection
    Current Limit Protection

    Isolation
    None
