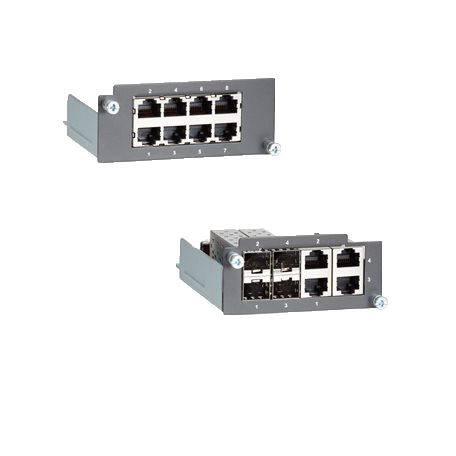

MOXA PM-7200 Series

Gigabit and Fast Ethernet modules for PT series rackmount Ethernet switches

MOXA PM-7200 Series
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Gigabit and Fast Ethernet modules for PT series rackmount Ethernet switches
  • -40 to 85°C wide operating temperature
  • IEC 61850-3 and IEEE 1613 compliant

The PM-7200 Module Series includes Gigabit and Fast Ethernet modules for the PT Series rackmount Ethernet switches. IEEE 1588 interface modules provide hardware-based PTP functions for precise time synchronization across the network.

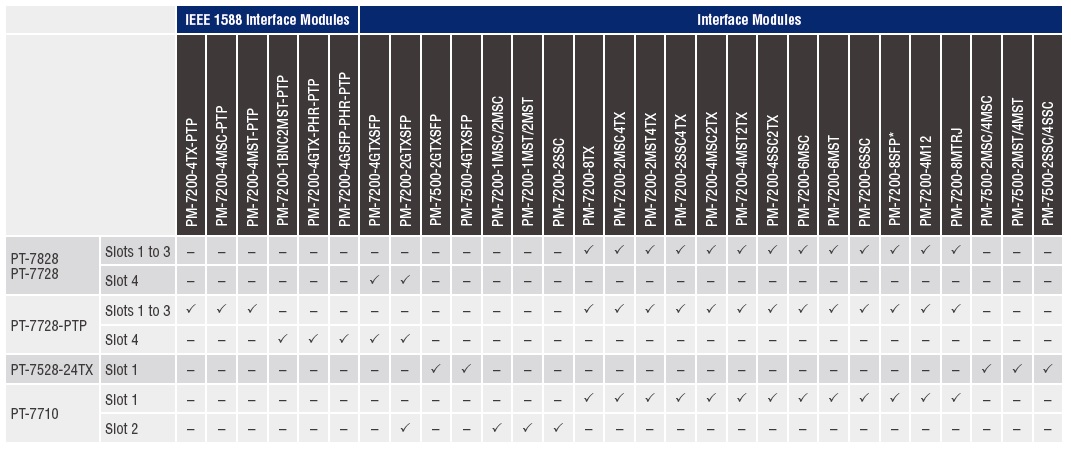

ProdGrafik

Gigabit Ethernet Interface Modules, PM-7200-2G/4G, PM-7200 PRP/HSR Series

    Interface

    RJ45 Ports
    10/100/1000BaseT(X) auto negotiation speed, and auto MDI/MDI-X connection

    Fiber Ports
    100*/1000BaseSFP slots

    Note
    The PM-7200/7500-2G/4G series Gigabit Ethernet combo modules support 2 or 4 SFP slots. See TBD to select the SFP-1G series Gigabit Ethernet modules for your application.



Fast Ethernet Interface Modules, PM-7200 Series

    RJ45 Ports
    10/100BaseT(X) auto negotiation speed, F/H duplexmode, and auto MDI/MDI-X connection

    Fiber Ports
    100BaseFX ports (SC/ST/MTRJ or SFP LC connector)

    M12 Ports
    10/100BaseT(X) auto negotiation speed, and auto MDI/MDI-X connection

    BNC Ports
    Time clock signal PPS (pulses per second) output for IEEE 1588 time synchronization





Ordering Information
Available Models
PM-7200-1MSC Fast Ethernet module with 1 100BaseFX multi-mode port with SC connector
PM-7200-1MST Fast Ethernet module with 1 100BaseFX multi-mode port with ST connector
PM-7200-2GTXSFP Gigabit Ethernet module with 2 10/100/1000BaseT(X) or 1000BaseSFP slot combo ports
PM-7200-2MSC Fast Ethernet module with 2 100BaseFX multi-mode ports with SC connectors
PM-7200-2MSC4TX Fast Ethernet module with 2 100BaseFX multi-mode ports with SC connectors and 4 10/100BaseT(X) ports
PM-7200-2MST Fast Ethernet module with 2 100BaseFX multi-mode ports with ST connectors
PM-7200-2MST4TX Fast Ethernet module with 2 100BaseFX multi-mode ports with ST connectors and 4 10/100BaseT(X) ports
PM-7200-2SSC Fast Ethernet module with 2 100BaseFX single-mode ports with SC connectors
PM-7200-2SSC4TX Fast Ethernet module with 2 100BaseFX single-mode ports with SC connectors and 4 10/100BaseT(X) ports
PM-7200-4GTXSFP Gigabit Ethernet module with 4 10/100/1000BaseT(X) or 1000BaseSFP slot combo ports
PM-7200-4M12 Fast Ethernet module with 4 10/100BaseT(X) ports with M12 connectors
PM-7200-4MSC2TX Fast Ethernet module with 4 100BaseFX multi-mode ports with SC connectors and 2 10/100BaseT(X) ports
PM-7200-4MST2TX Fast Ethernet module with 4 100BaseFX multi-mode ports with ST connectors and 2 10/100BaseT(X) ports
PM-7200-4SSC2TX Fast Ethernet module with 4 100BaseFX single-mode ports with SC connectors and 2 10/100BaseT(X) ports
PM-7200-6MSC Fast Ethernet module with 6 100BaseFX multi-mode ports with SC connectors
PM-7200-6MST Fast Ethernet module with 6 100BaseFX multi-mode ports with ST connectors
PM-7200-6SSC Fast Ethernet module with 6 100BaseFX single-mode ports with SC connectors
PM-7200-8SFP Fast Ethernet module with 8 100BaseSFP slots
PM-7200-8TX Fast Ethernet module with 8 10/100BaseT(X) ports
PM-7200-1BNC2MST-PTPFast Ethernet module for PT-7728-PTP series with 2 100BaseFX multi-mode ports with ST connectors, 1 PPS output with BNC connector, hardware-based IEEE 1588 PTP V2 protocol support
PM-7200-8MTRJ Fast Ethernet module with 8 100BaseFX multi-mode ports with MTRJ connectors
PM-7200-4TX-PTP Fast Ethernet module for PT-7728-PTP series with 4 10/100BaseT(X) ports, hardware-based IEEE 1588 PTP V2 protocol support
PM-7200-4MST-PTP Fast Ethernet module for PT-7728-PTP series with 4 100BaseFX multi-mode ports with ST connectors, hardware-based IEEE 1588 PTP V2 protocol support
PM-7200-4MSC-PTP Fast Ethernet module for PT-7728-PTP series with 4 100BaseFX multi-mode ports with SC connectors, hardware-based IEEE 1588 PTP V2 protocol support
PM-7200-4GTX-PHR-PTP Gigabit Ethernet module with 4 1000Base T(X) ports, PRP/HSR protocol support
PM-7200-4GSFP-PHR-PTP Gigabit Ethernet module with 4 100/1000Base SFP slots, PRP/HSR protocol support
