Advantech BB-3PCIU / BB-3PCIOU
One to Four Port RS-232/422/485 Cards
- Add 1, 2, or 4 Serial Ports to Your PC
- Optical Isolation (select models)
- RS-232/422/485 Selectable on Each Port
- 5 and 3.3 V PCI Bus Compatible
- PCI-X Compatible
- Data Rates Up to 460.8 Kbps
MIPort Universal PCI Cards suit most any application. Outputs are independently configurable for RS-232, RS-422, or RS-485. Optically isolated card models offer 2000 VDC port-to-port isolation.
Compare B+B SmartWorx cards to others – B+B's Premium Isolation Zone, along with optical couplers and our unique isolated DC-DC converter design, protect your PC from voltage surges and ground loops.
DB9M connectors offer positive thumbscrew locking - more robust than phone jack connectors. Four port model include fan-out cables. All models support data rates up to 460.8 kbps. MIPort cards are plug-andplay compatible and have adjustable FIFO trigger thresholds for input and output. RS-485 operation supports both 2-wire and 4-wire (full and half-duplex) and Automatic Send Data Control. All models include a comprehensive technical manual and CD ROM with drivers.
Whether you're application is industrial monitoring and control, SCADA, point-of-sale, medical or security, MIPort Universal PCI Cards are your number one choice.
Compare B+B SmartWorx cards to others – B+B's Premium Isolation Zone, along with optical couplers and our unique isolated DC-DC converter design, protect your PC from voltage surges and ground loops.
DB9M connectors offer positive thumbscrew locking - more robust than phone jack connectors. Four port model include fan-out cables. All models support data rates up to 460.8 kbps. MIPort cards are plug-andplay compatible and have adjustable FIFO trigger thresholds for input and output. RS-485 operation supports both 2-wire and 4-wire (full and half-duplex) and Automatic Send Data Control. All models include a comprehensive technical manual and CD ROM with drivers.
Whether you're application is industrial monitoring and control, SCADA, point-of-sale, medical or security, MIPort Universal PCI Cards are your number one choice.
SPECIFICATIONS
Operating Systems | Windows XP (32 bit/64 bit), Vista (32 bit /64 bit), Windows 7 (32 bit /64 bit), Server 2008 (32 bit /64 bit), Server 2008 R2 (64 bit) |
Bus | PCI (33 MHz/32 bit) |
Data Rate | Up to 460.8 kbps (RS-232/422/485) |
UARTs | XR17D15X (16C550 compatible) |
Buffer | 64 byte FIFO buffer |
Character Length | 5, 6, 7, or 8 bits |
Parity | Even, Odd, None, Space or Mark |
Stop Bits | 1, 1.5, or 2 |
Isolation (select models only) | 2K V optical isolation. Ports are isolated from PC power, ground and other ports on the same card. |
RS-232 Signals | TD, RD, and all handshake signals |
RS-422 Signals | TDA(-), TDB(+), and GND |
RS-485 Signals | Data A(-), Data B(+), and GND |
Operating Temperature | 32 to 122 °F (0 to 50 °C) |
Operating Humidity | 0 to 95% non-condensing |
Dimensions, card edge | 12.2 x 9.6 cm (4.8 x 3.8 in) |
Mounting Bracket | 1.2 x 12.1 x 0.9 cm (0.5 x 4.8 x 0.4 in) |
Approvals | FCC, CE |
MTBF | 3PCIOU1 - 1291601 hours 3PCIOU2 - 823883 hours 3PCIU2 - 211565 hours 3PCIU4 - 1637664 hours |
ORDERING INFORMATION
MODEL NUMBER | DESCRIPTION | CONNECTORS |
2kV Optical Isolation | ||
3PCIOU1 | 1 x RS-232/422/485 | DB9 M |
3PCIOU2 2 | 2 x RS-232/422/485 | |
Standard (non-isolated) | ||
3PCIU2 | 2 x RS-232/422/485 | DB9 M |

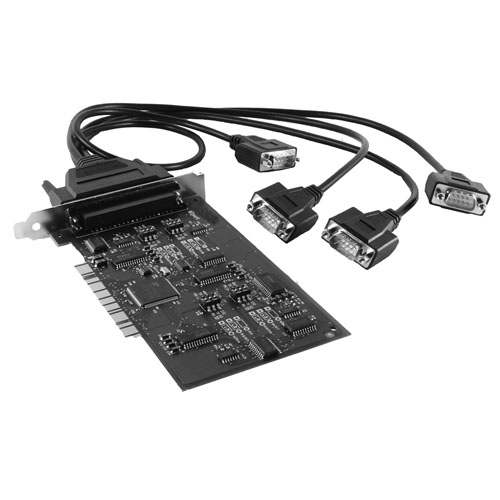

3PCIU4 | 4 x RS-232/422/485 | DB37 F (DB37 to 4 x DB9 M cable included) |
