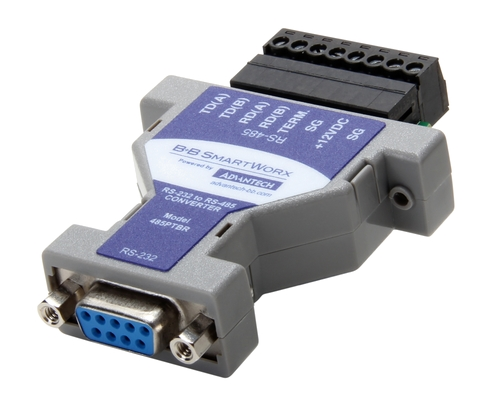

Advantech BB-485PTBR
RS-232 to RS-485 Converter
- terminal block that quickly unplugs from the converter for ease of wiring
The 485PTBR converts unbalanced RS-232 signals to balanced, full or half-duplex RS-485 signals. RS-485 is an enhanced version of the RS-422 Standard. It allows multiple drivers and receivers on a two-wire system. The RS-232 port has a female DB-9 connector with pins 2(RD), 3(TD), and 5(SG) supported. Pins 7(RTS) and 8(CTS) are tied together. Also pins 6(DSR), 1(CD), and 4(DTR) are tied together, but not passed through the converter. The RS-485 port has an 8-position pluggable terminal block connector.
SPECIFICATIONS
General | |
Technology | Serial |
Mounting | Inline |
Power | 12VDC |
Serial Type | RS-422/485 |
