Advantech B+B SmartWorx SmartSwarm 351

Translate SCADA protocols to IT in real-time without disrupting, interrupting or reconfiguring your existing networks

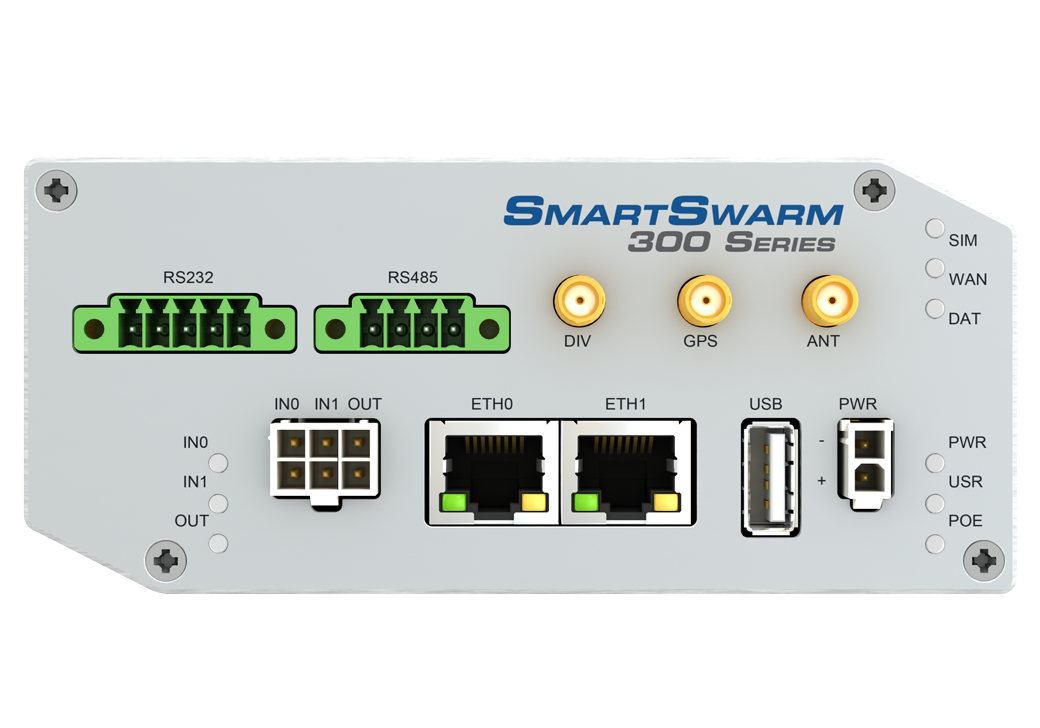

Introducing the SmartSwarm 351
If you’re an engineer in charge of SCADA systems like MODBUS RTU, you may have been asked by IT or upper management to find a way to translate and release your SCADA data, in real-time, to IT infrastructure protocols like MQTT, JSON so the information is available and understandable to other parts of your organization.

You also know that extracting data, in real-time, from your existing SCADA protocol can be both difficult, time-consuming, and completely disruptive to mission critical tasks where monitoring cannot stop for more than a few minutes, let alone hours or days to replace and reconfigure an existing SCADA master device.

So ultimately, how do you translate and release your SCADA data to IT, in real-time, without adversely affecting your existing SCADA networks in any way shape or form?

This is why we made the SmartSwarm 351.

The B+B SmartWorx SmartSwarm 351 is ultimately a bolt-on, non-invasive physical device that provides an easy and cost effective way to release and translate your SCADA data, in real-time, to a wider enterprise IT environment. And compared to similar devices and solutions out there, it does so without impacting your programming, processes or people.


Get data without getting in the way (non-intrusive)

Instead of replacing the existing SCADA or automation master device like similar devices already on the market, the SmartSwarm 351 connects to the serial data line and ‘eavesdrops’ on the communications between the master and the attached slaves. From this it builds a comprehensive picture of the status of each of the connected devices, in real-time, without impacting any performance of the existing SCADA or automation system:

• Connects transparently to existing system by simple connection across the serial bus.
• Does not require any reconfiguration of the system
• Does not impact performance of the existing system
• Learns about connected devices by simply listening to Modbus traffic

At no time will data of any kind flow back into your existing system. Your system won’t even know it’s there.

Introduction

Seamlessly connect existing Modbus process systems into the IoT While a number of “Modbus to MQTT” gateways exist, most act as the local Modbus master devices, recovering information from a network of connected slaves. This presents a problem for operators of existing process control systems as a Modbus network can only have a single master device. The SmartSwarm 351 overcomes this limitation by transparently “eavesdropping” on communications between the existing master device and the connected slaves. It non-disruptively derives the I/O status of connected devices and uses this information to provide a real time data feed to a connected IIoT architecture.


Data Filtering

Much of the data that the gateway will see in the Modbus network is of little value. If a temperature reading rarely changes, for example, there is no point in reporting it every time it is sampled. For this reason, in addition to enriching the data, SmartSwarm 351 also allows users to configure the triggers that will cause a monitored value to be published. Users can also configure what is published once an event trigger condition is met – this might be just the changed value, a range of data, or all data from the same register type within the RTU. This lets users optimize the traffic across the communications network. At the same time, the gateway decreases the communications overhead and the processing bandwidth needed to handle it.

Specification

Power


Voltage
10 ~ 60 VDC; PoE PD optional

Power
4W typical; 11W peak



Environmental


Operating Temperature
-40 °C to 75 °C (-40 °F to 167 °F)

Cold Start Temperature
-35 °C (-31 °F) ƒ

Storage Temperature
-40 °C to 85 °C (-40 to 185 °F)

Operating Humidity
0% to 95% (non-condensing)

Storage Humidity
0 to 95% non condensing

Ingress Protection
IP42



Mechanical


Dimensions
55 x 97 x 125mm (2.17 x 3.82 x 4.9)

Weight
375g

Mounting
Flat Surface or DIN rail



Ports & Interfaces


Serial Modbus RTU interface
RS-232 or RS-485

Ethernet
2 x 10/100 Mb via RJ45

SIM
Mini SIM (2FF)

ANT & DIV antennae SMA

Cellular
LTE, UMTS/HSPA+, GPRS/EDGE



Modbus Commands Supported


01 Read Coil Status
02 Read Input Status
03 Read Holding Registers
04 Read Input Registers
05 Force Single Coil* *
06 Preset Single Register*
15 Force Multiple Coils*
16 Preset Multiple Registers*
22 Mask Write 4X Register*
23 Read/Write 4X Registers*
* Note that for output command types, the unit interprets these as inputs to the IoT enrichment process. It does not support output of data from the IoT system



Modbus Data Types Supported


Boolean
Multi-bit Encoded Boolean (e.g. 2 bits provide 4 states for one point)
16 Bit Packed Boolean
16 Bit Integer (signed/ unsigned)
16 Bit Counter
32 Bit Integer (signed/unsigned) (single 32 bit or 2x16 bit registers)
32 Bit Counter (single 32 bit or 2x 16 bit registers)
32 Bit Float (single 32 bit or 2x 16 bit registers)
32 Bit Packed Boolean (single 32 bit or 2x 16 bit registers)
Multi-register Text
Endian order is configurable both within and between registers

Ordering Information

BB-SG30300320-51	EMEA Cellular, no accessories
BB-SG30300325-51	EMEA Cellular, with accessories
BB-SG30000320-51	no Cellular, no accessories
BB-SG30000325-51	no Cellular, with accessories
BB-SG30500320-51	NAM (AT&T) Cellular, no accessories
