Advantech BB-ESR90x Serie
Industrial Ethernet Serial Servers
- Not Recommended For New Installations
- Ethernet Enable 1, 2, or 4 Serial Ports
- IP 30 DIN Rail Mountable Case
- RS-232/422/485 Full and Half-duplex
- Auto detect 10/100 Mbps Ethernet
- Virtual COM Drivers for Windows NT/98/ME/2000/2003/XP and Vista
Industrial and commercial measurement and control systems often have standalone devices with unused serial ports. B&B Electronics’ ESR Serial Servers allow you to connect those ports into your existing LAN or WAN, giving you access to more information and the ability to configure, manage and troubleshoot those devices from a control room, office or even a distant location via a WAN. Save the cost, time and trouble of carrying a laptop out to devices located in distant, cold, dirty or uncomfortable environments.
ESR Serial Servers are built for use in industrial environments, featuring an IP30 approved slim line DIN rail mountable case. They operate from a range of voltages using AC or DC power, feature terminal block power connectors and even support redundant DC power.
Connect your serial device to the ESR’s serial port and connect the ESR to your LAN. Your networked computer ‘sees’ the device over the network as a virtual serial connection. ESR serial servers support TCP or UDP protocols and allow transmitting to and receiving from multiple IP addresses. There are four methods of configuring ESR serial servers: via Vlinx Management Software, Web Server, Telnet or via a direct RS-232 console connection using a terminal program.
SPECIFICATIONS
Serial | |
Serial Interfaces: | RS-232 (DTE), RS-422, RS-485 (2/4-Wire) |
Serial Connectors: | ESR901: TB and DB9 M (selectable) ESR902: 2 x DB9 M ESR904: 4 x DB9 M |
Baud Rate: | 110 to 230.4 kbps |
Parity: | None, Even, Odd, Mark, Space |
Data Bits: | 5, 6, 7, or 8 |
Stop Bits: | 1, 1,5, or 2 |
Serial Buffer | 8 kb per port |
Note: Refer to the manual for pin-outs and signals. | |
Power | |
Voltage: | 9 to 48 VDC or 8 to 24 VAC |
Power Consumption: | ESR901: 320 mA @ 12 VDC ESR902: 340 mA @ 12 VDC ESR904: 326mA @ 12 VDC |
Connector: | Removable Terminal Block |
Ethernet | |
Connector: | RJ-45 F |
Data Rate: | 10/100 Mbps Auto-detecting 10BaseT or 1000BaseTx |
Protocols: | TCP, IP, ARP, DHCP, Telnet, HTTP, UDP, ICMP |
Configuration | |
Console: | RS-232 w/ VT100 Emulation |
Telnet: | HyperTerminal w/VT 100 Emulation |
ESP Manager: | Compatible w/Win98, ME, 2000, 2003, XP, NT, and Vista |
HTTP: | Embedded Web Page |
Environment | |
Operating Temp: | -14 to 176 F (-10 to 80 C) |
Storage Temp: | -4 to 185 F (-20 to 85 C) |
Humidity: | 5 to 95% Non-condensing |
Dimensions ESR901/902: ESR904: | 1.75 x 6.1 x 4.1 in (4.46 x 15.52 x 10.46 cm) 1.75 x 7.1 x 4.1 in (4.46 x 18.03 x 10.46 cm) |
Enclosure: | IP 30 |
Approvals: | CE, FCC |
SPECIFICATIONS
Available Modules | |
BB-ESR901 | 1 Serial Port Industrial Ethernet Serial Server |

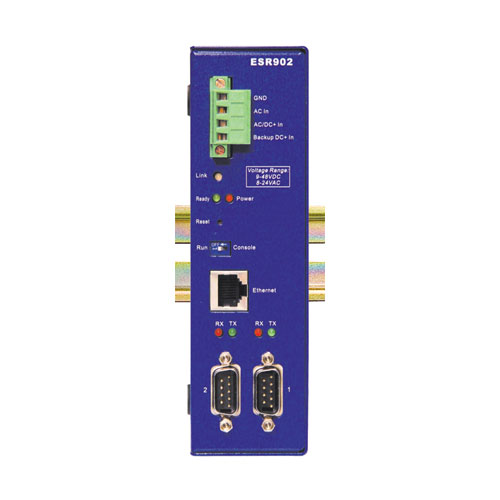

BB-ESR902 | 2 Serial Port Industrial Ethernet Serial Server |

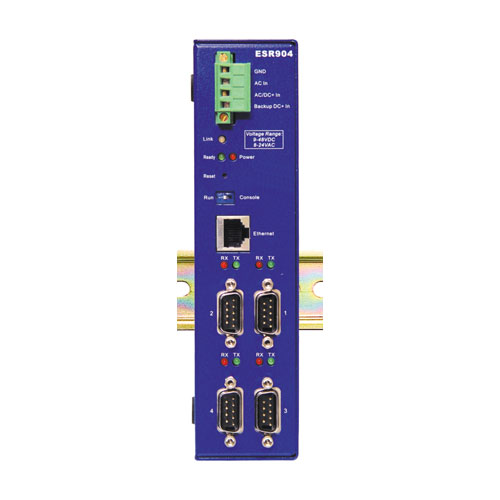

BB-ESR904 | 4 Serial Port Industrial Ethernet Serial Server |
Accessories | |
BB-MDR-40-12 | Industrial Slim-line Power Suppy |
